10.0 Power Switch & Rear Panel Connections

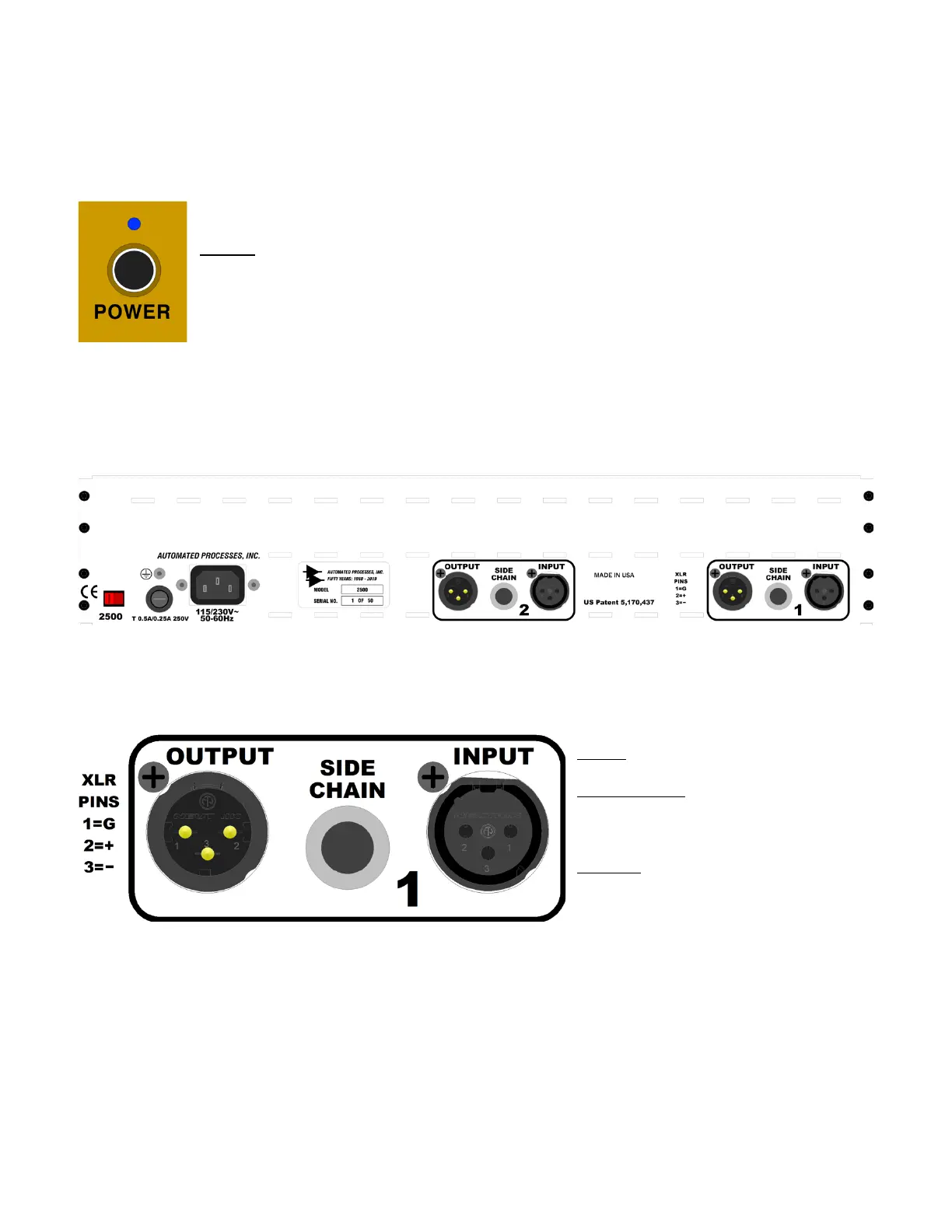

10.1 Power Switch
The power switch for the 50
th
Anniversary 2500 is located on the right side of the front panel.
Power: Cycle to power the unit ON and off
• Blue LED illuminates when powered ON
10.2 Rear Panel
The rear panel of the 2500 provides the Left and Right audio input, output, and side chain connections,
as well as AC power connections, voltage selection, and fuse.
10.2.1 Audio Connections
Each audio channel, Left and Right, has an INPUT, OUTPUT, and SIDE CHAIN input connection.
INPUT: Balanced, line-level
• 3-pin female XLR connector
SIDE CHAIN: Balanced, line-level
input
• ¼” TRS connector
• Tip=+, Ring=-, Sleeve=ground
OUTPUT: Balanced, line-level
• 3-pin male XLR connector
NOTE: Channel 1 = Left and Channel 2 = Right
