6.1 Link Section Controls
6.1.1 Left/Right Link

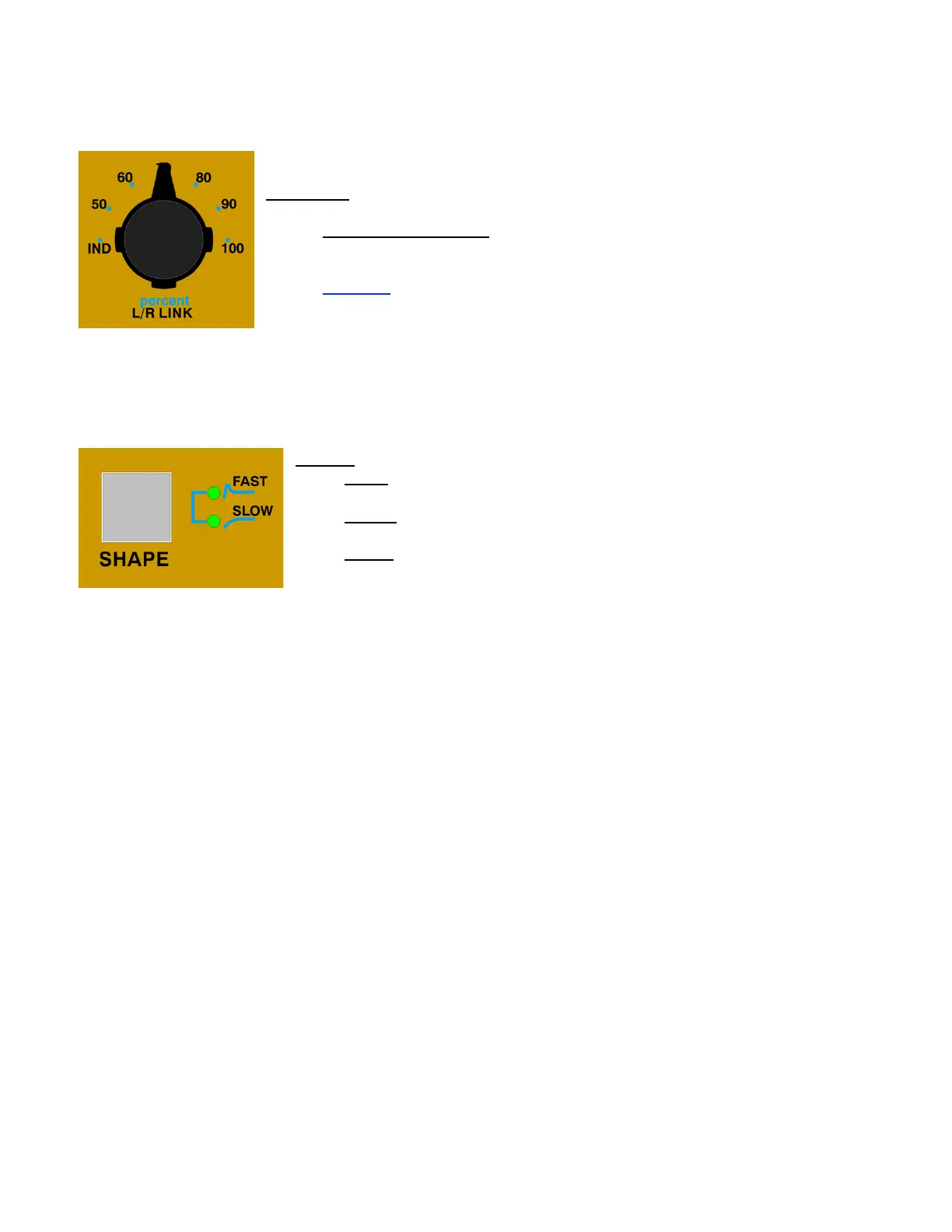

L/R LINK: Sets the percentage of the control voltage link between the Left
and Right channels
• IND (independent): No linkage between channels; channels operate
independently of each other with no influence from the opposite
channel
• Percent: 50, 60, 70, 80, 90, and 100% fixed steps
6.1.2 Link Shape
The speed of the control voltage link between the Left and Right channels is selected using the SHAPE
switch.
SHAPE: Cycle to select the speed of the Left/Right control voltage link
• FAST: Peak acting: RMS control voltage influence attenuated
o Green LED
• SLOW: RMS acting: peak control voltage influence attenuated
o Green LED
• BOTH: Both peak and RMS link control voltage influence attenuated
o Both green LEDs
