 Controlsamountofauxiliaryreturnsignalmixedwithmainoutput

5.2.3 AuxiliaryReturnPan
RETPAN:Auxiliaryreturnpan
 Controlspanofauxiliaryreturnsignalmixedwithmainoutput

5.3 StereoMixerBlockDiagram

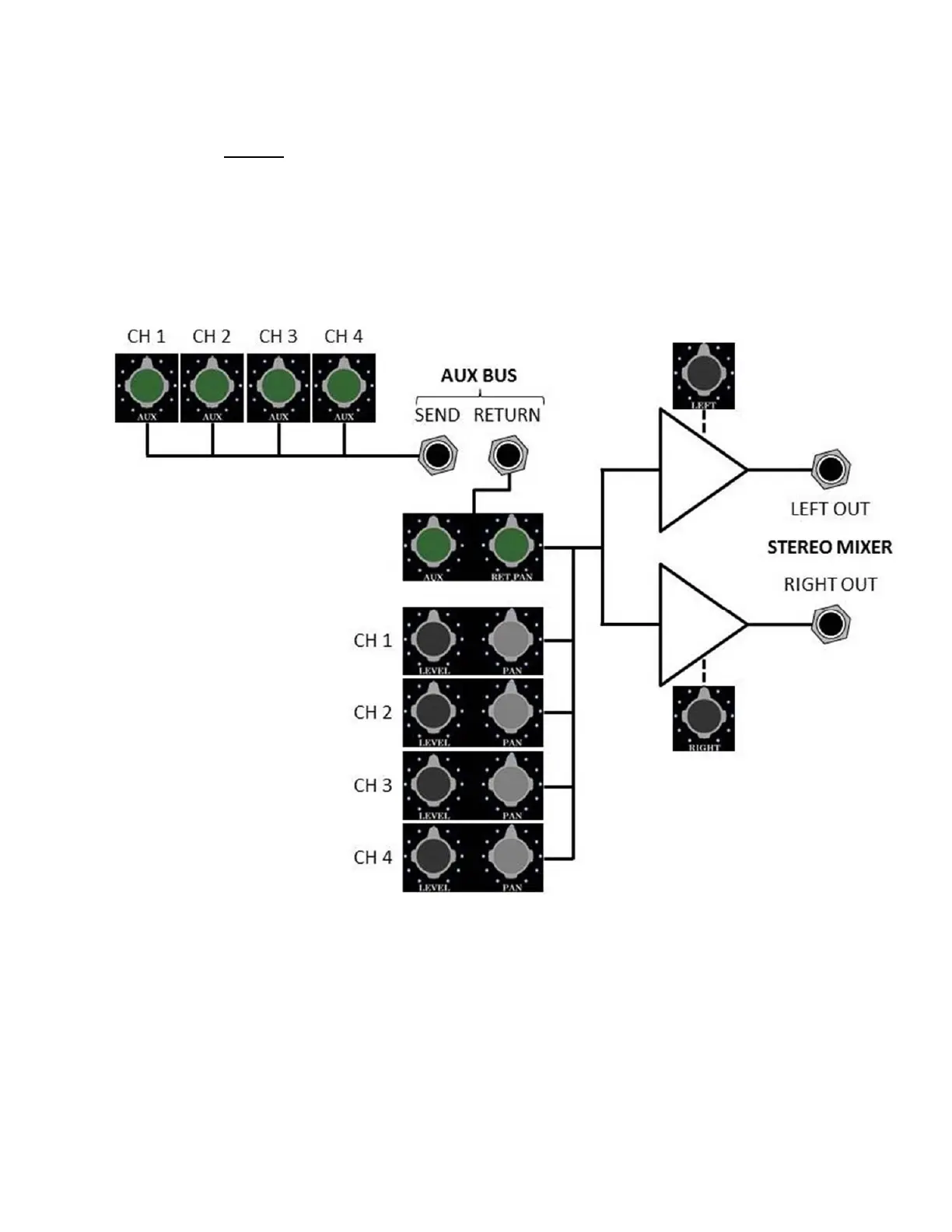

Figure 10 shows a block diagram that illustrates signal flow through the stereo mixer section of the
3124mb+. Understanding the signal flow through each preamplifier channel will help develop a better
understandingofhowandwheneachchannel’sparameterscanbeused.



Figure1
0
:StereoMixerSignalFlow
