API 3124mb+ - Panel Interfaces; Audio Path Inputs; Audio Path Outputs

14

6.0 PanelInterfaces
6.1 AudioPathInputs
6.1.1 Frontpanel



6.1.2 RearPanel



6.2 AudioPathOutputs
6.2.1 RearPanel




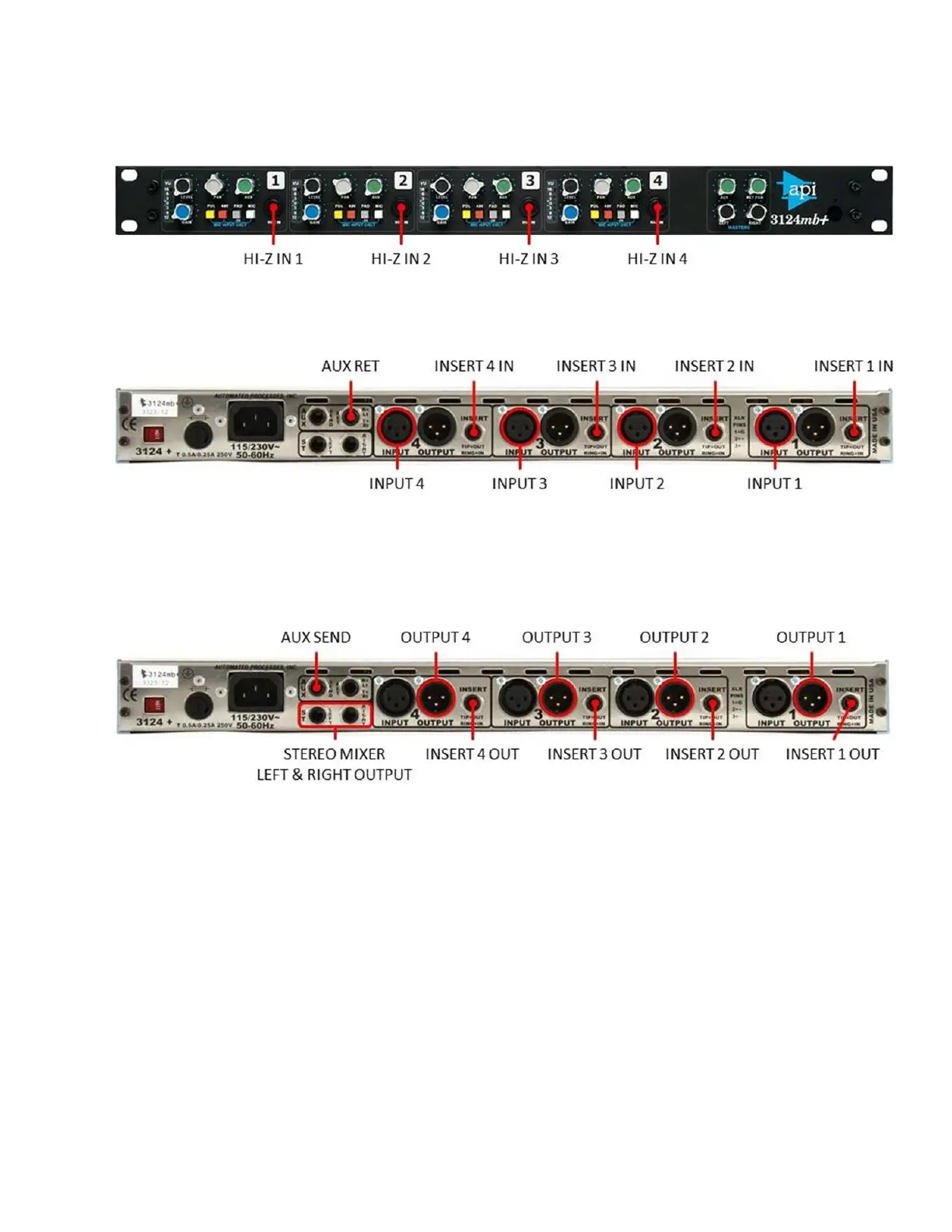

Figure11:FrontPanelInputConnections
Figure12:RearPanelInputConnections
Figure13:RearPanelOutputConnections
