3.0 SignalFlowandBlockDiagram
3.1 3124mb+SignalFlow


3.2 AdditionalRouting
3.2.1 Insert
EngagingtheINSERT,byconnectingaTRScabletotheINSERTjack,willaddtheINSERT routing
toachannel’ssignalflow.TheTRScable’s “tip”carriesthesignaloutfromthe3124mb+channel
andthe cable’s“ring”carries thereturningsignalfr om theinsertdevice.Thiscanbe
usefu l for
addingsignalprocessingtoanindividualchannel.
3.2.2 AuxiliarySend/Return
AUXILIARY functions are controlled from the 3124mb+ front panel. Each chan nel has its
respectiveAUXknobwhichcontrolhowmuchofachannel’ssignalisbeingsenttotheAUXbus .
The summed AUX signal can then be
sent and returned to an external signal processor via
independent TRS connections. AUX level and AUX return pan can be adjusted by using the
respectiveknobslocatedonthe3124mb+frontpanel.


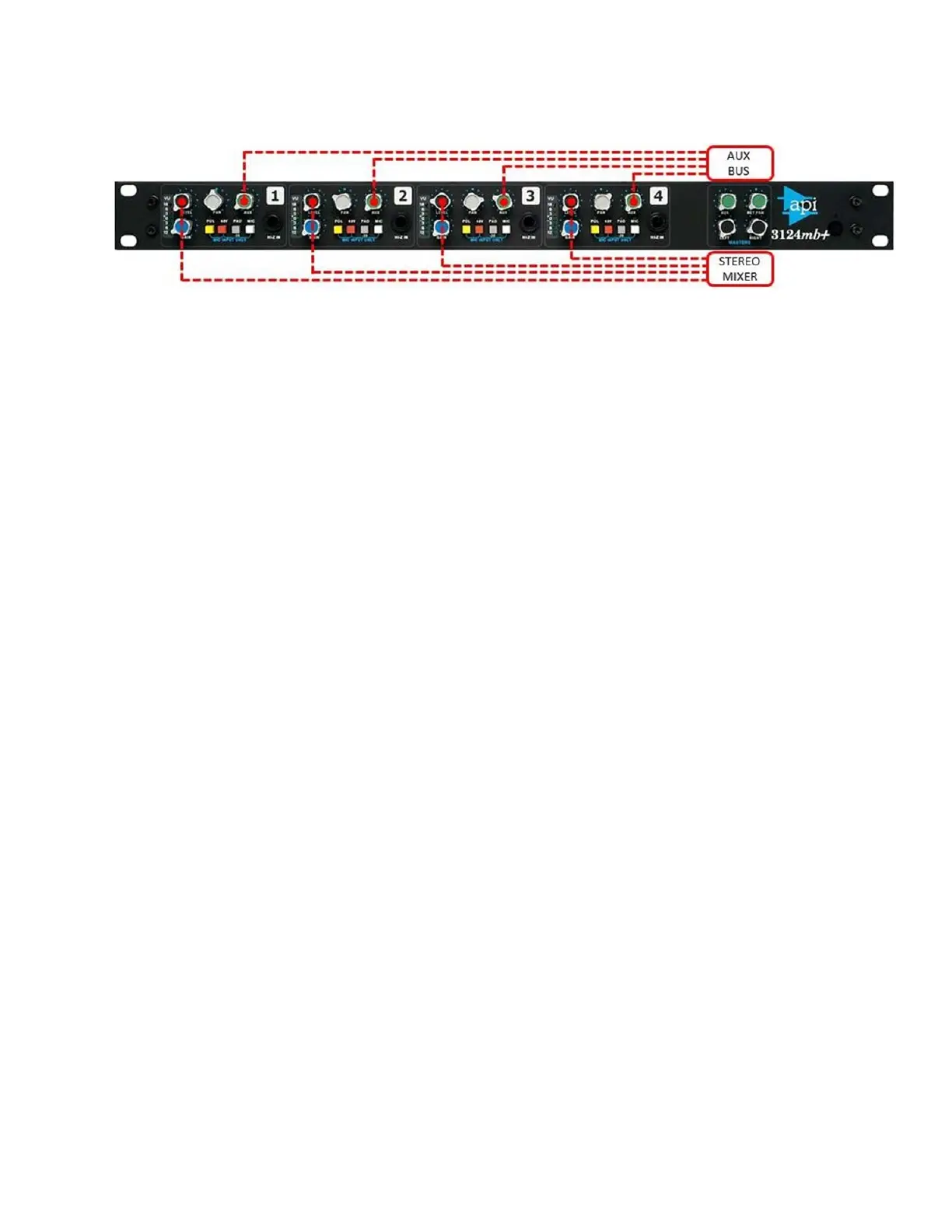

Figure2:SignalFlow
