3.3 PreamplifierBlockDiagram

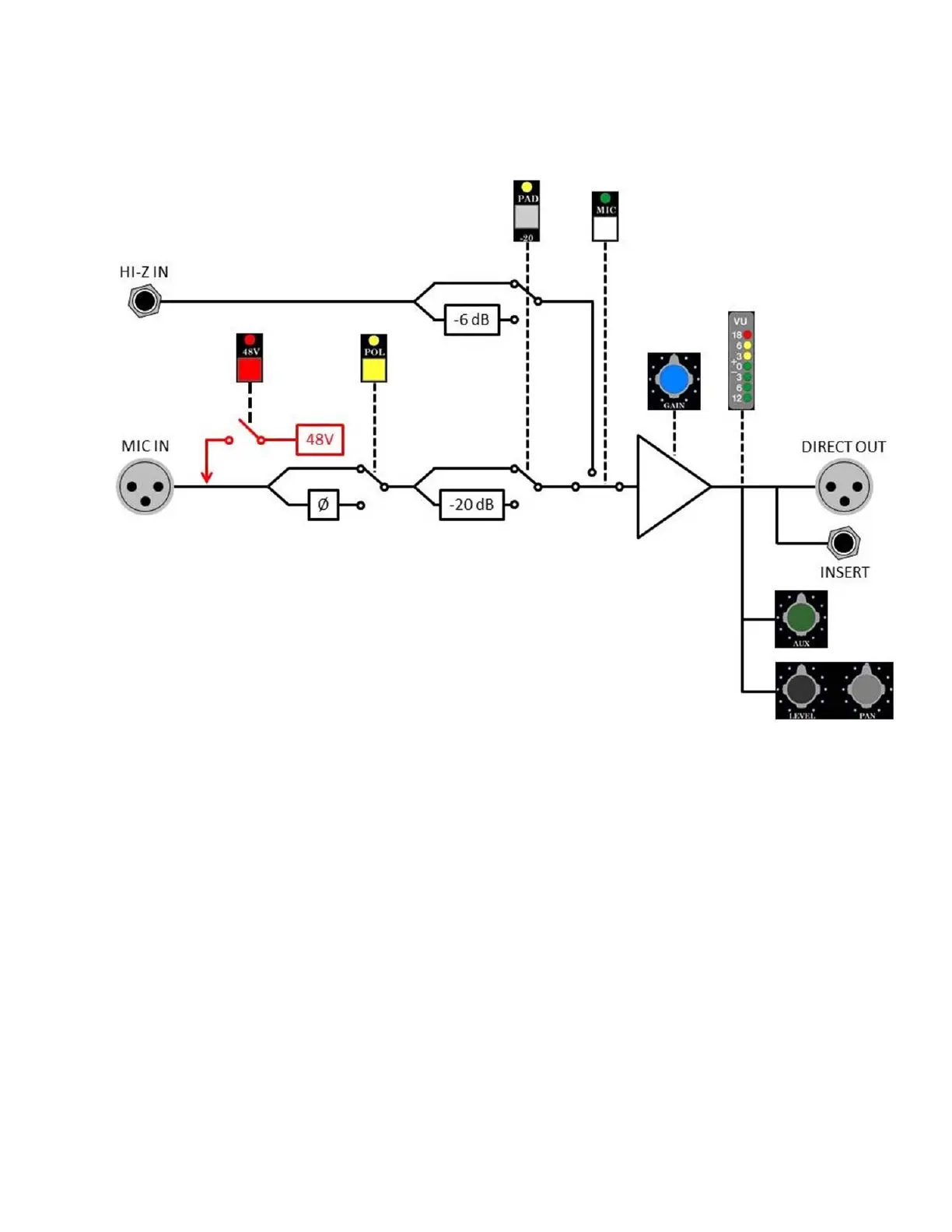

Figure 3 shows a  block diagram that illustrates signal flow through each preamplifier channel of the
3124mb+. Understanding the signal flow through each preamplifier channel will help develop a better
understandingofhowandwheneachchannel’sparameterscanbeused.



Figure3:PreamplifierSignalFlow
