Brakes
Brake pad wear depends on the severity of usage
and track conditions. (Generally, the pads will
wear faster on wet and dirty tracks) Inspect the
pads at each regular maintenance interval .
Front Brake Pads

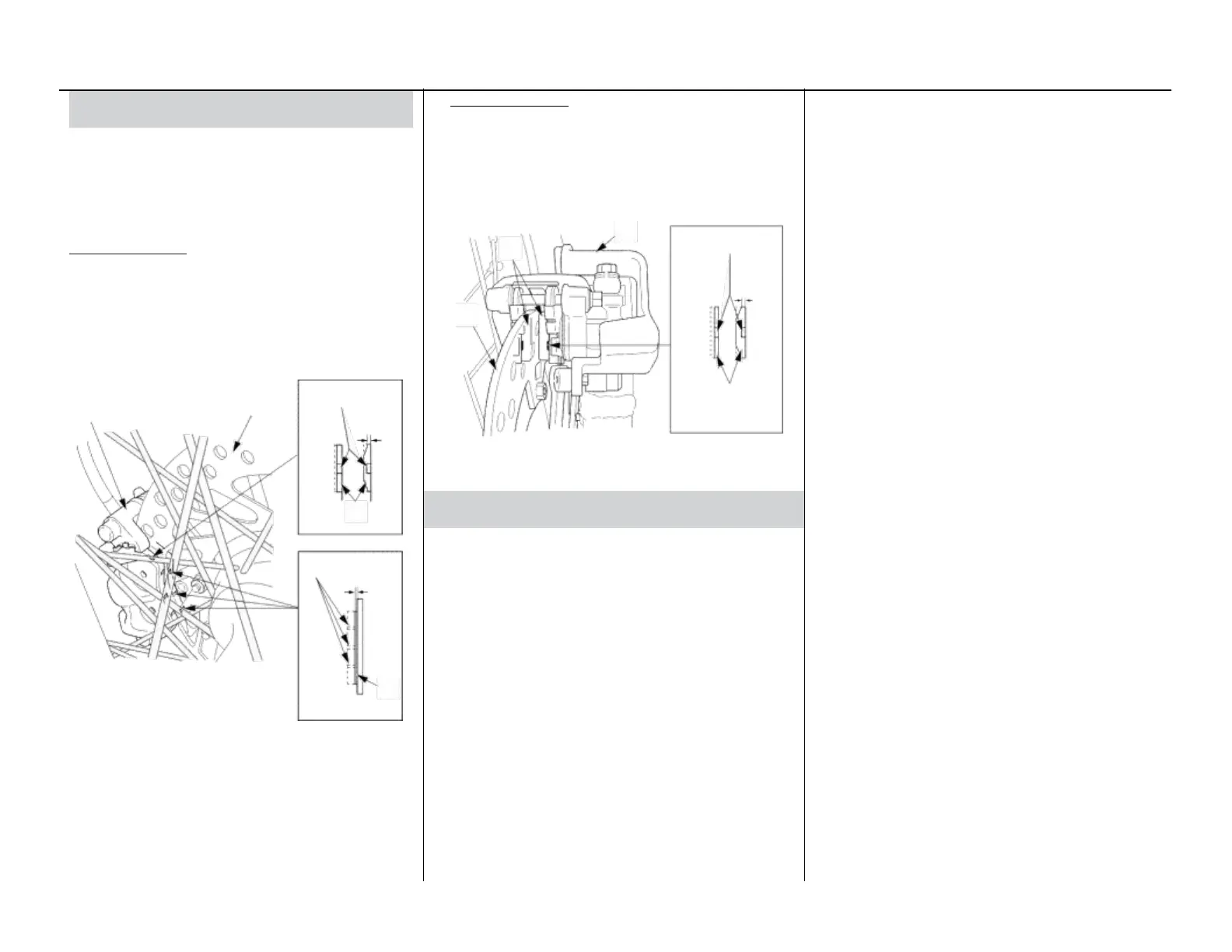

Inspect the brake pads (1) through the front
wheel to determine the pad wear. If either pad is
worn anywhere to a thickness of 0.04 in (1 mm),
both pads must be replaced.
minimum thickness
indicator
0.04 in
(1 mm)
(1)
replace
wear indicator
grooves 0.04 in
(1 mm)
(1)
replace
(3) brake disc
(2) front brake caliper
Service Procedures 24
Rear Brake Pads
Inspect the brake pads (4) from the rear side of
the caliper to determine the pad wear. If either
pad is worn anywhere to a thickness of 0.04 in
(1 mm), both pads must be replaced.
minimum thickness
indicator
0.04 in
(1 mm)
(6)
(4)
replace
(4) brake pads
(5) rear brake caliper
Check that the front brake lever and rear brake
pedal assemblies are positioned properly and
the securing bolts are tight.
Make sure there are no fluid leaks. Check for
deterioration or cracks in the hoses and fittings.
