Brakes
(5) bolts

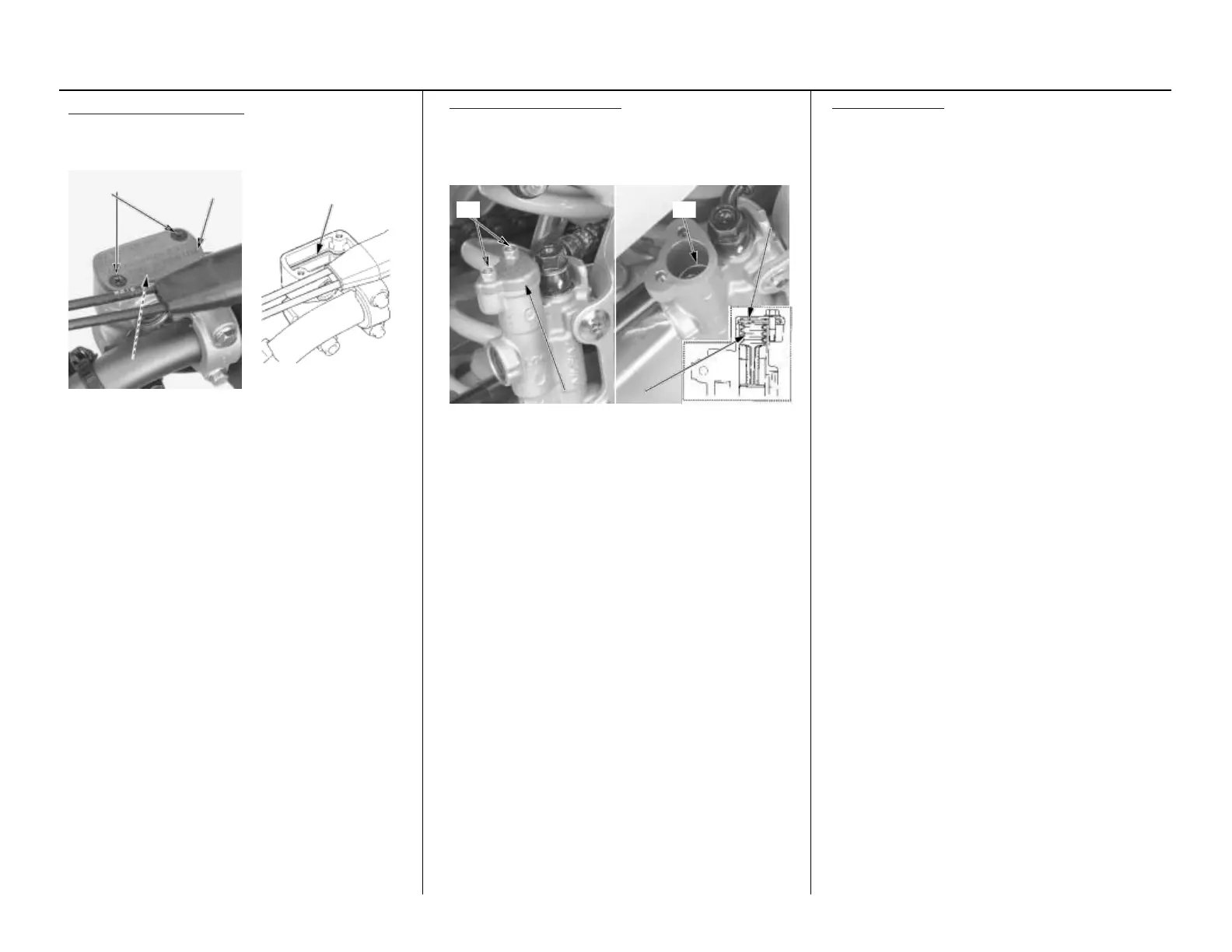

Adding Front Brake Fluid
When adding brake fluid be sure the reservoir is
horizontal before the cap is removed or brake
fluid may spill out.
(1)
(3)
(2)
(1) screws
(2) reservoir cap
(3) diaphragm
1. Remove the screws (1), reservoir cap (2) and
diaphragm (3).
2. Fill the reservoir with brake fluid to the
upper level mark (4). Do not overfill.
3. Reinstall the diaphragm and reservoir cap.
4. Tighten the screws to the specified torque:
0.7 lbf·ft (1.0 N·m, 0.1 kgf·m)
Service Procedures 23
Adding Rear Brake Fluid
When adding brake fluid be sure the reservoir is
horizontal before the cap is removed or brake
fluid may spill out.
(7)
(8)
(5)
(9)
(6)
(8) diaphragm
(6) reservoir cap
(7) set plate
1. Remove the bolts (5) reservoir cap (6), set
plate (7) and diaphragm (8).
Check the diaphragm installation as shown.
2. Fill the reservoir with brake fluid to the
upper level mark (9). Do not overfill.
3. Reinstall the diaphragm, set plate and
reservoir cap.
4. Tighten the bolts to the specified torque:
0.7 lbf·ft (1.0 N·m, 0.1 kgf·m)
Other Inspection
• Make sure there are not fluid leaks.
• Check for deterioration or cracks in the
hoses and fittings.
(4) upper level mark
(4)
(9) upper level mark
