volume: 2017 D/P
5 of 24
1.2

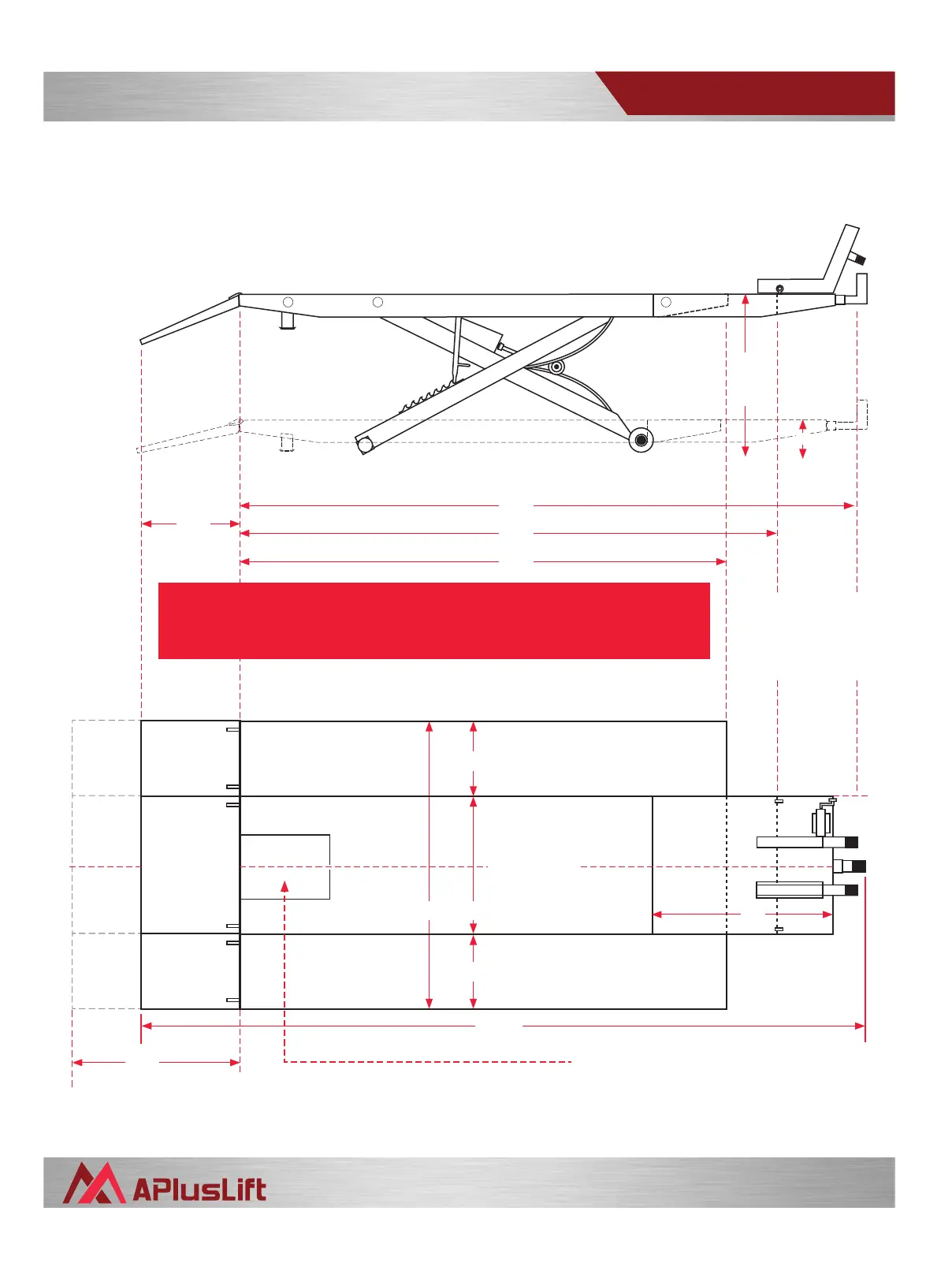

Dimensional Diagram
Top View:
110”
84”
128”
32”
20”
12”
12”
32½”
FULL
RISE
7”
(OPTIONAL SIDE EXTENSION)
Stage 1 Ext.
Stage 2 Ext.
(OPTIONAL SIDE EXTENSION)
Side View (Raised):
24”
48”
(CENTERLINE) (CENTERLINE)
35”
Center Line: This is the center of the lift. All loads should be
center balanced on this line of the lift. Overloading one side
of the equipment may damage the lift and / or cause injury!
Drop Out Tail
Roller Assembly Available, allows
for wheels to be spun without raising
motorcycle off of the table surface.
Extended Rear Approach Ramp: This
extended ramp ensures a lower approach angle for long
motorcycles and choppers, making loading these bikes
much easier!
DIMENSIONS
APlusLift MT1500 & MT1500X
APlusLift MT1500 & MT1500X
INSTALLATION
Manual
www.apluslift.com
Questions? Problems? Call Us At 425-209-0838
