AD-16X – User’s Guide
Standard and Advanced Option Routing - continued
Advanced Option Routing –
Additional Digital I/O
With Advanced Option routing, the AD and DA-16X offers additional digi-
tal I/O to Digidesign HD or Firewire-based audio systems. As depicted

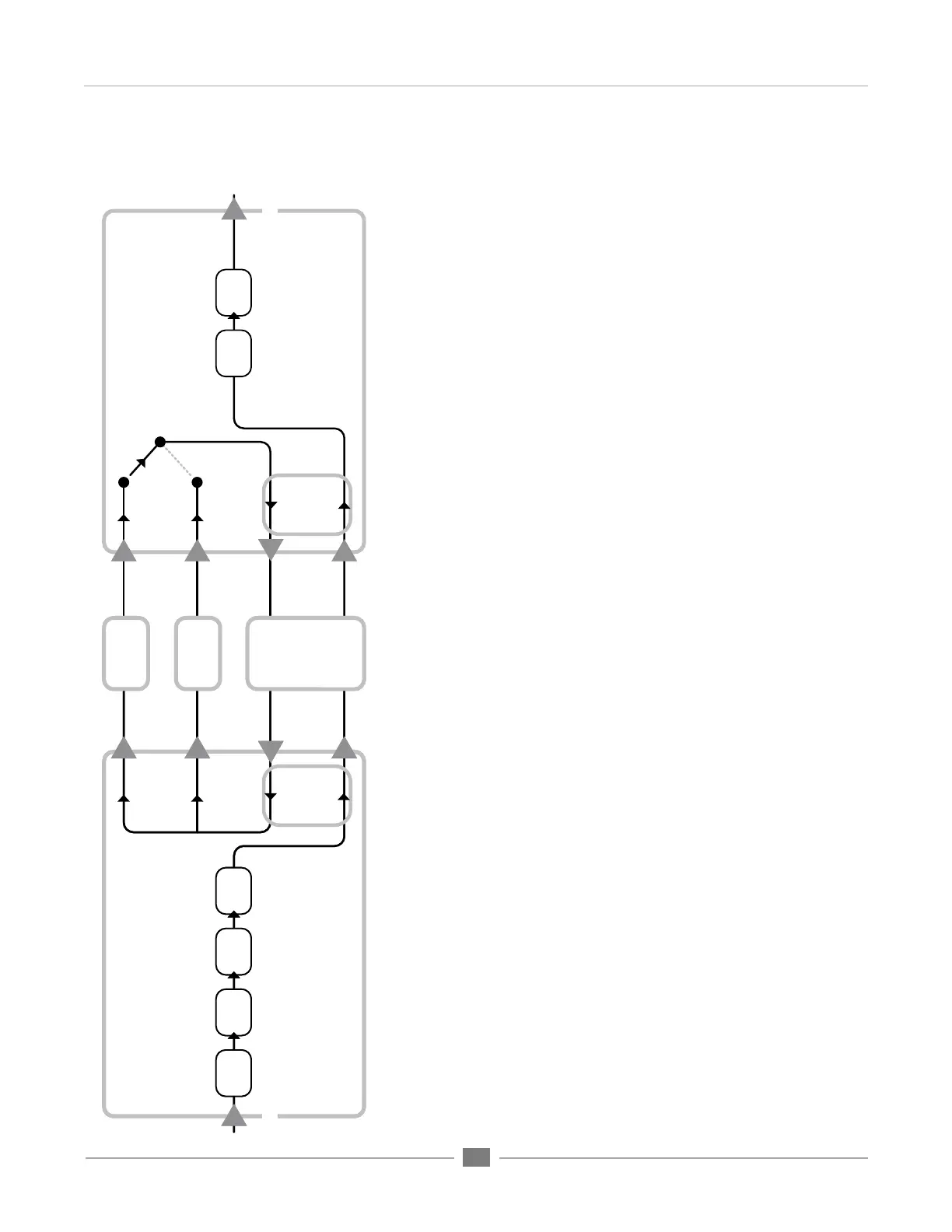

in the routing diagram at left, when an X-HD card is installed in both
an AD and DA-16X, it becomes possible to route the DA-16X’s AES or
ADAT inputs to a Pro Tools session while routing the AD-16X’s AES and
ADAT outputs from the session. The AD-16X functions as a Digidesign
192 with 16 analog inputs and 16 digital outputs while the DA-16X func-
tions as a 192 with 16 digital inputs and 16 analog outputs. Of course,
the same functionality is possible with X-Firewire cards and a Firewire-
based audio system.
Cal
Level
Soft
Limit
AES
Optical
Option In
Option Out
AES
Optical
Option Out
Option In
A to D
& Meters
UV22
AD-16X DA-16X
DA-16X: Advanced Option Routing
AES
Device
Optical
Device
X-HD
option card
D to A
& Meters
Cal
Level
(input select)
Analog In
AD-16X: Advanced Option Routing
Cal
Level
Soft
Limit
AES
Optical
Option In
Option Out
A to D
& Meters
UV22
AD-16X
AES
Device
Optical
Device
Computer
with
Pro Tools
HD
Analog In
Analog Out
X-HD
option card
X-HD
option card
