Apogee Duet User’s Guide
Analog Inputs

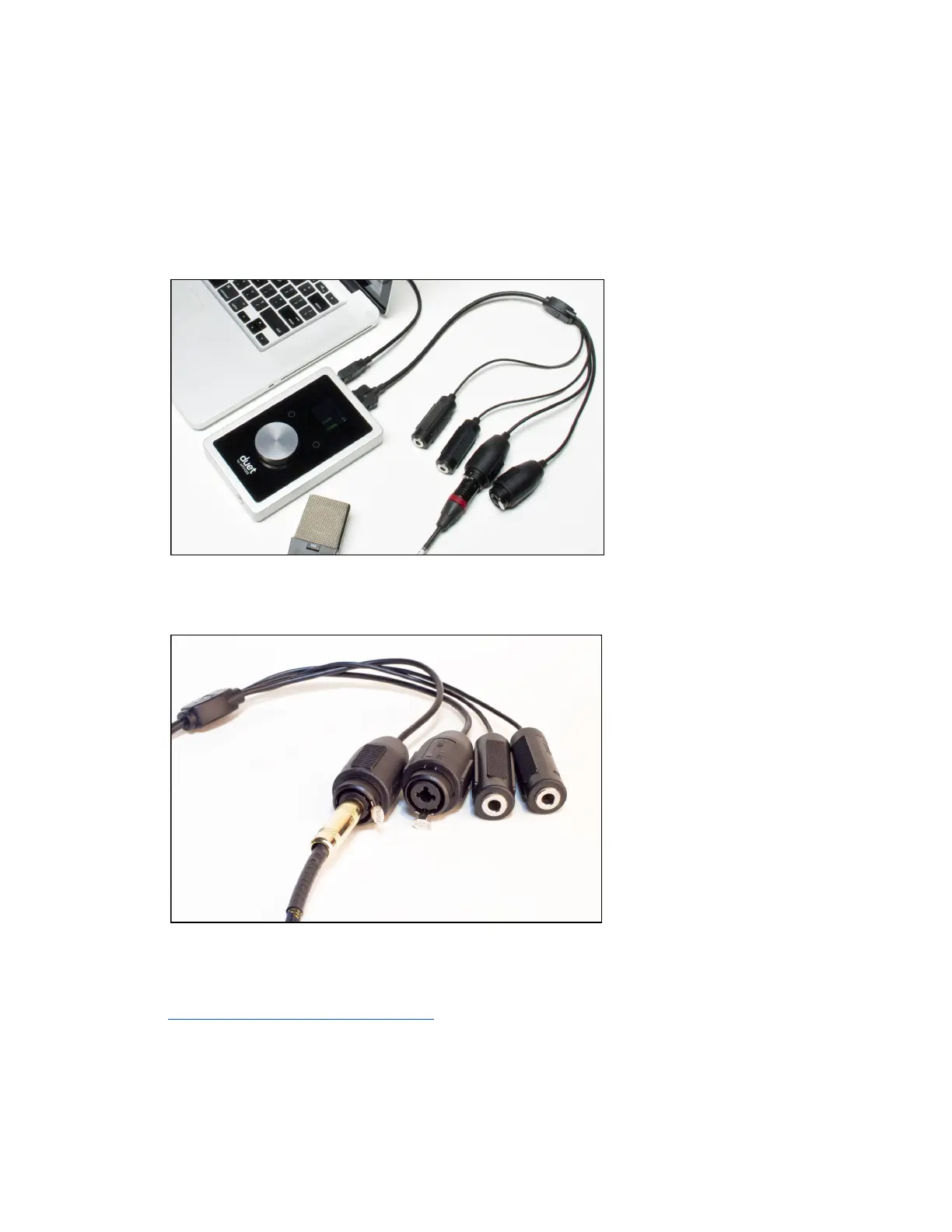

1. Connect the provided breakout cable to the Analog I/O port on the rear of the unit.
2. Connect your analog input source(s) to either of the 2 combination connectors on Duet’s
breakout cable:
Microphone: XLR connection to Duet’s combination connector
+4 dBu/-10 dBV line level device: XLR connection to Duet’s combination connector
Instrument: 1/4” connection to Duet’s combination connector
Note: Input source must be selected within Apogee’s Maestro application.
See Configuring the Input Section>
