Apogee Element Series User’s Guide

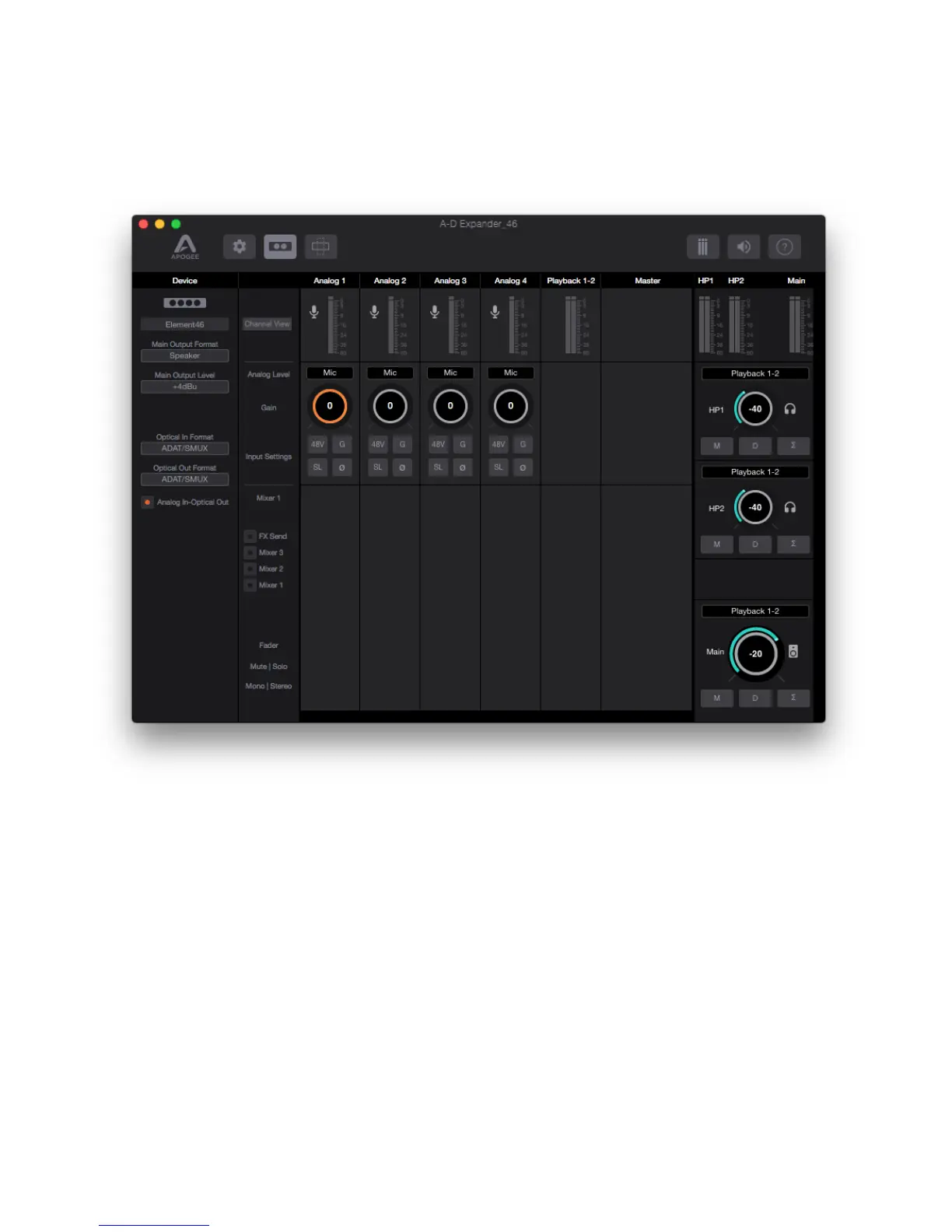

A/D Expander Snapshot Template
This Snapshot Template facilitates the use of your Element Firewire interface as a simple Analog to Digital Converter (A/D).
This snapshot is useful when wanting to send digital audio to a Digital Mixer, or separate Audio Interface. In this way, you can
utilize the excellent Apogee Preamps and Converters through another digital audio system.
The Individual Analog inputs are sent directly to the ADAT optical outputs.
● Element 24 - Analog input 1 - 2 > ADAT output ch 1 - 2
● Element 46 - Analog input 1 - 4 > ADAT output ch 1 - 4
● Element 88 - Analog input 1 - 8 > ADAT output ch 1 - 8
