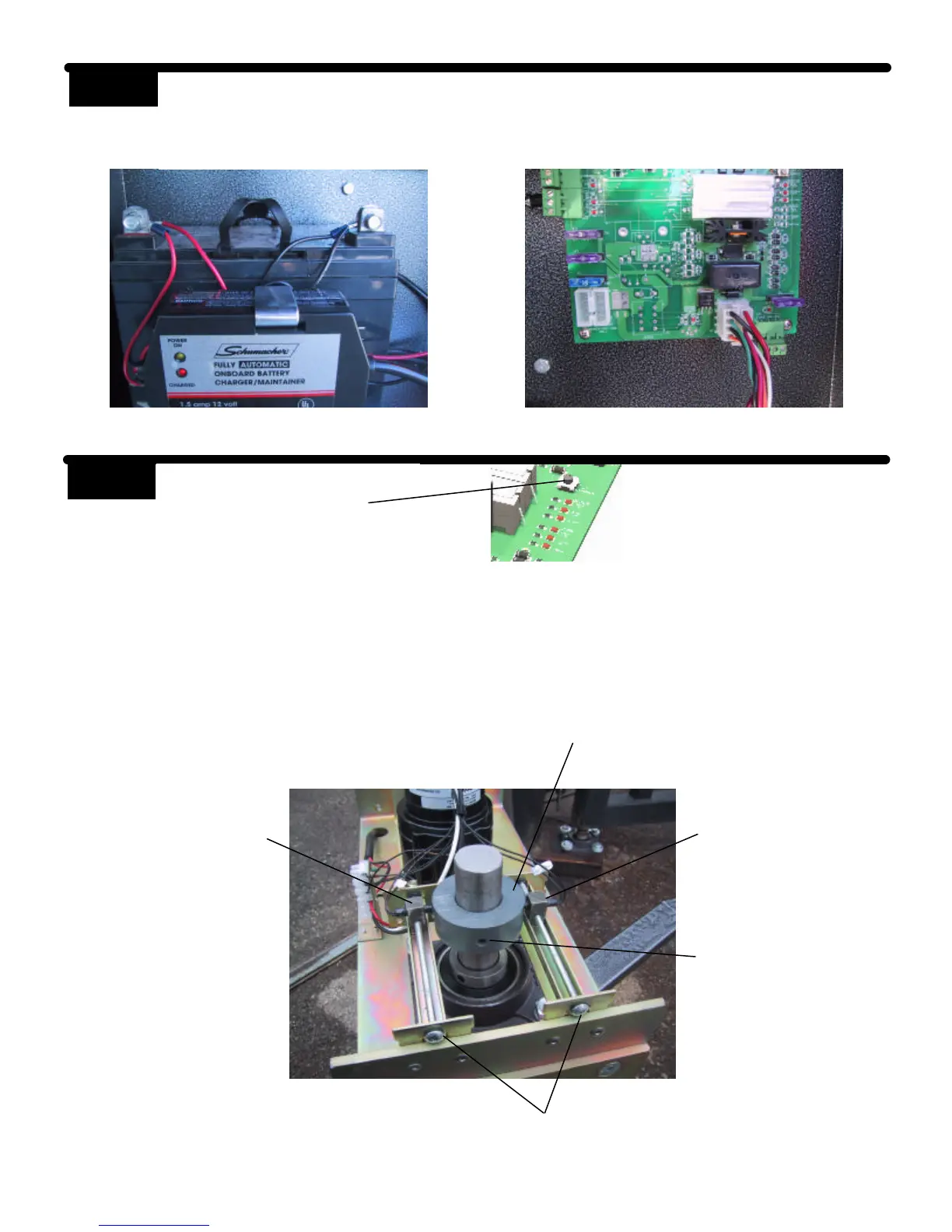

Connect the two ring terminals on the connector end of the cable to the battery. The
battery charger or solar panel should be installed at this time.
Plug the connector into the Master connector on the circuit board.
STEP 10
STEP 11
Limit Switch
Limit Switch
Set Screw
(do not over tighten)
Press LED Enable on the right
side of the circuit board.
The gate should be in the closed position. Loosen the set screw on the magnet collar and rotate
until the closed LED illuminates. Tighten the set screw but avoid over tightening (make sure the
magnet in the collar is aligned height wise with the closed limit). Open the gate to the desired
open position and stop the gate. Adjust the open limit screw until the open limit LED illuminates.
Magnet Collar
Limit Adjustments
