Apollo HD Series Start Guide

8

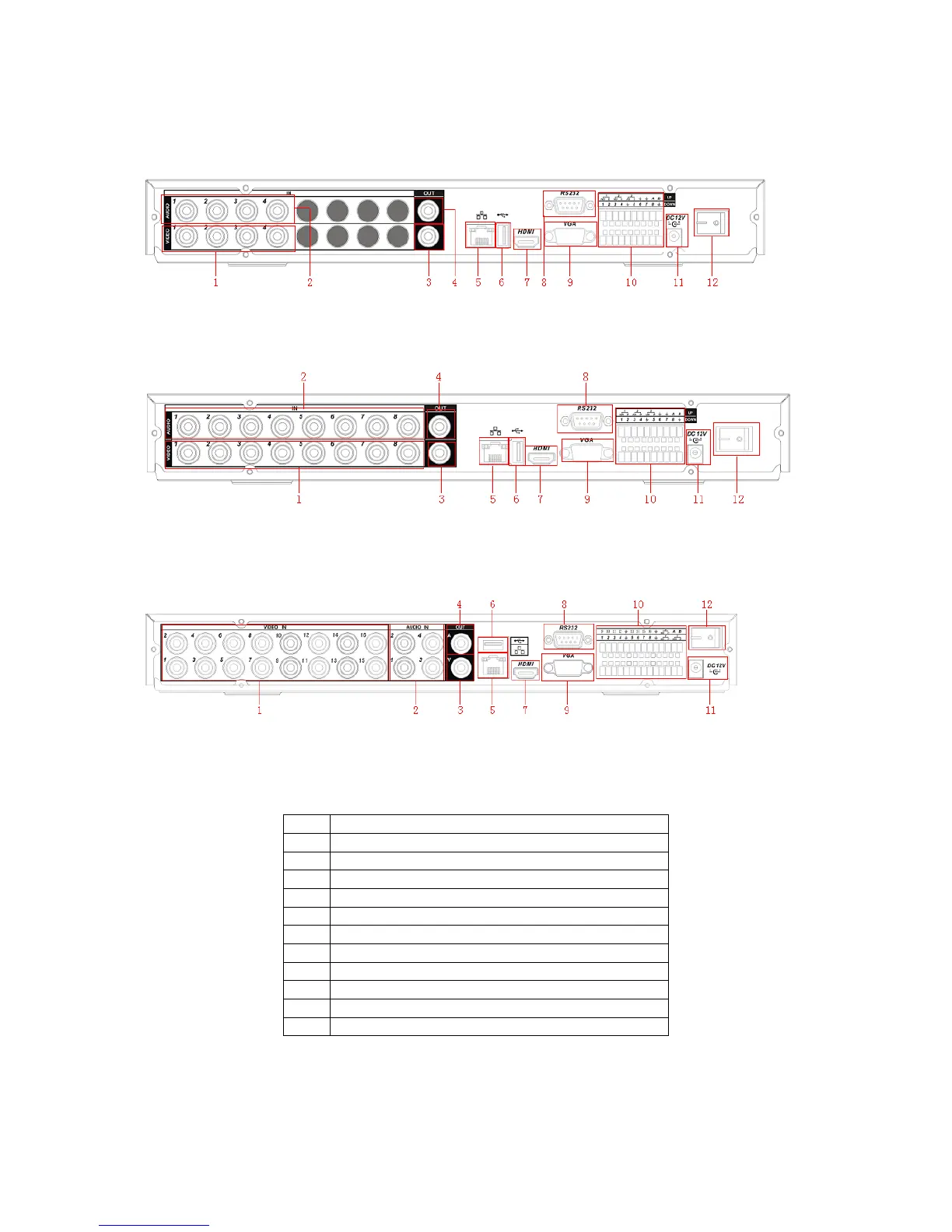

1.6 Rear Panel
The 4-ch rear panel is shown as below. See Figure 1-2.
Figure 1-2
The 8-ch rear panel is shown as below. See Figure 1-3.
Figure 1-3
The 16-ch real panel is shown as below. See Figure 1-4.
Figure 1-4
Please refer to the following sheet for detail information.
1
Video input
2
Audio input
3
Video CVBS output
4
Audio output
5
Network port
6
USB port
7
HDMI port
8
RS232 port
9
Video VGA output
10
Alarm input/alarm output/RS485 port
11
Power input port
12
Power button
When connect the Ethernet port, please use straight cable to connect the PC and use the
crossover cable to connect to the switcher or router.
1.7 Connection Sample

Apollo HD Series Specifications

General

Category	DVR
Video Compression	H.264
Hard Drive Capacity	Up to 6TB
Remote Viewing	Yes
Operating System	Embedded Linux
Video Input	4/8/16 channels
Recording Resolution	1080p/720p
Mobile Support	iOS, Android
