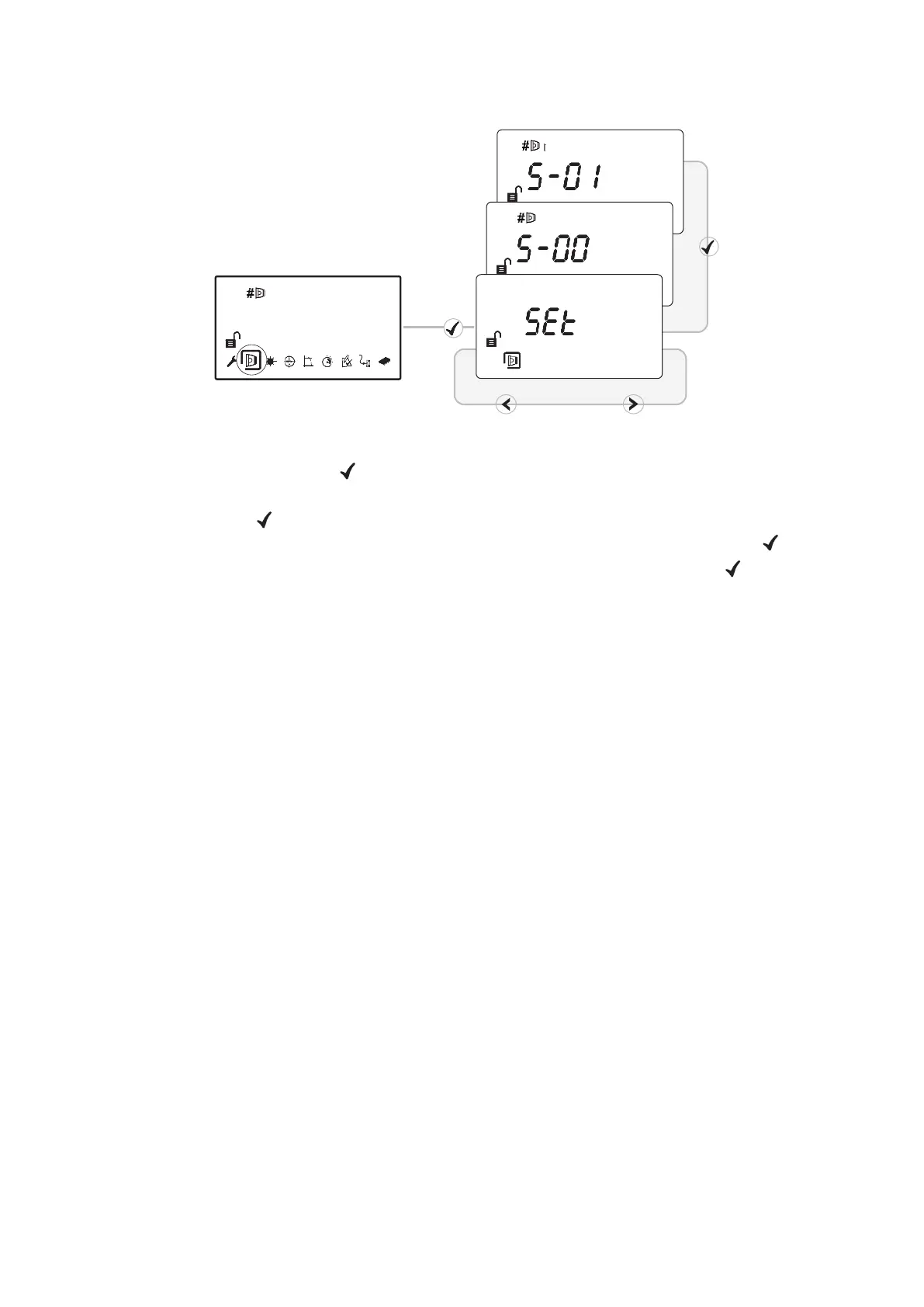

• When ‘Set’ is displayed press whilst the Reflector is still uncovered
• When ‘S-00’ is displayed, cover the Reflector with a non- reflective material and leave
covered, then press
• When ‘S-01’ is displayed, uncover the Reflector and leave uncovered, then press
• Repeat Steps 8 to 12 for any other Detectors found during the ‘Find’ process
13. ‘Set’ 0/100 (Calibrate)
14. System is Aligned
• Green LED on Detector will flash every 10 seconds, and Signal Strength should be between
99% and 101%
• Default values: 35% Fire Threshold, 10 second delay to Fire and Fault, Non-Latching mode
11
