5.4 DIODE TEST
* Set dial.
 CAUTION : Remove all power from the circuit before connecting the test
leads.
* Remove individual components from circuitry for best results.
* Choose diode test.

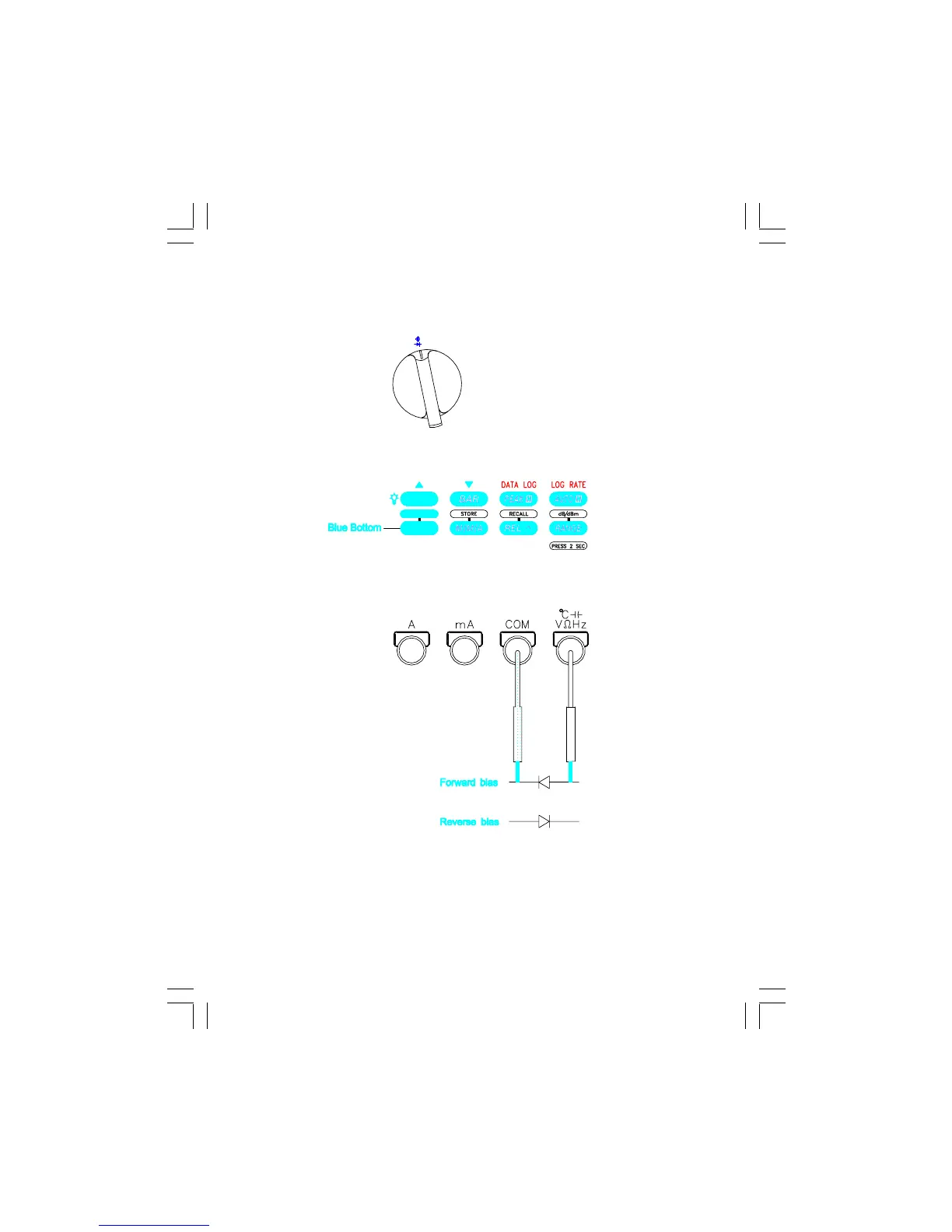

*Connect leads
Forward bias
Good = 0.4 to 0.9V
Bad = o or = > 2.0V
Reverse bias
Good = OL
Bad = <2.0V
