5

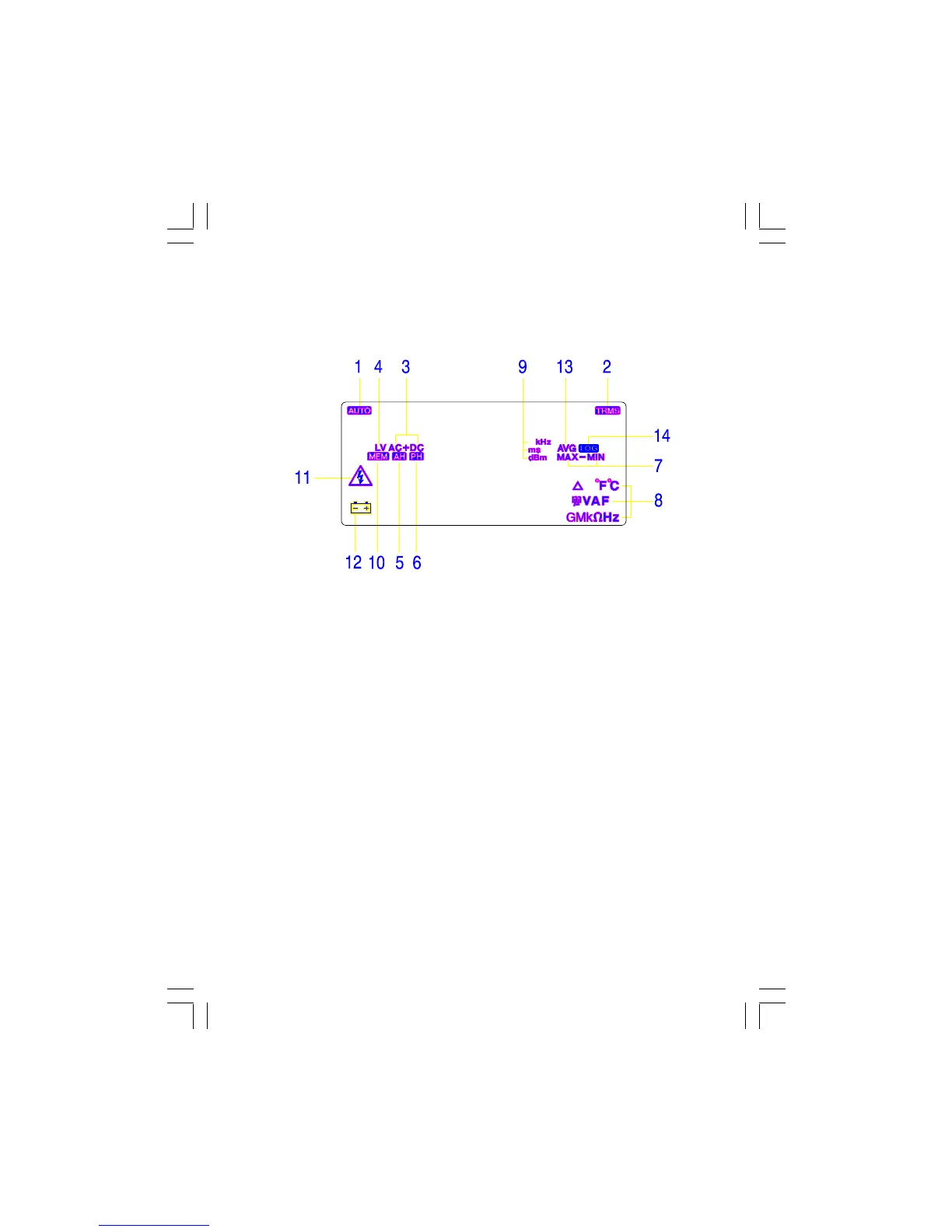

3-1 DISPLAY INDICATORS
Figure 2
1. Auto range indicator.
2. True RMS mode indicator.
3. AC, DC and AC + DC mode indicators.
4. Low voltage resistance indicator.
5. Auto hold indicator.
6. Peak hold indicator.
7. Maximum, Minimum and Average indicators.
8. Main display unit indicators.
9. Sub-display unit indicators.
10. STORE and RECALL indicator.
11. High voltage input warning (>60V DC, 30V ACrms).
12. is indicator (low battery)
13. Average indicator equals to (MAX + MIN)/2.
14. DATA LOG indicator.
