Indicator Unit Indicator Unit
µ
micro V Volt
m milli A Ampere
K kilo F Farad
M mega Hz Hertz
△
delta S Second
% percent
Fahrenheit
dB Decibel (1V ref.)
℃
Celsius
dBm
Decibel(1mW on 600Ω)
Ω
ohm
G gega n nano
4. BUTTONS FUNCTION
Prediction : Buzzer beeps once for every key-press.
Buzzer beeps twice for every invalid key-press.

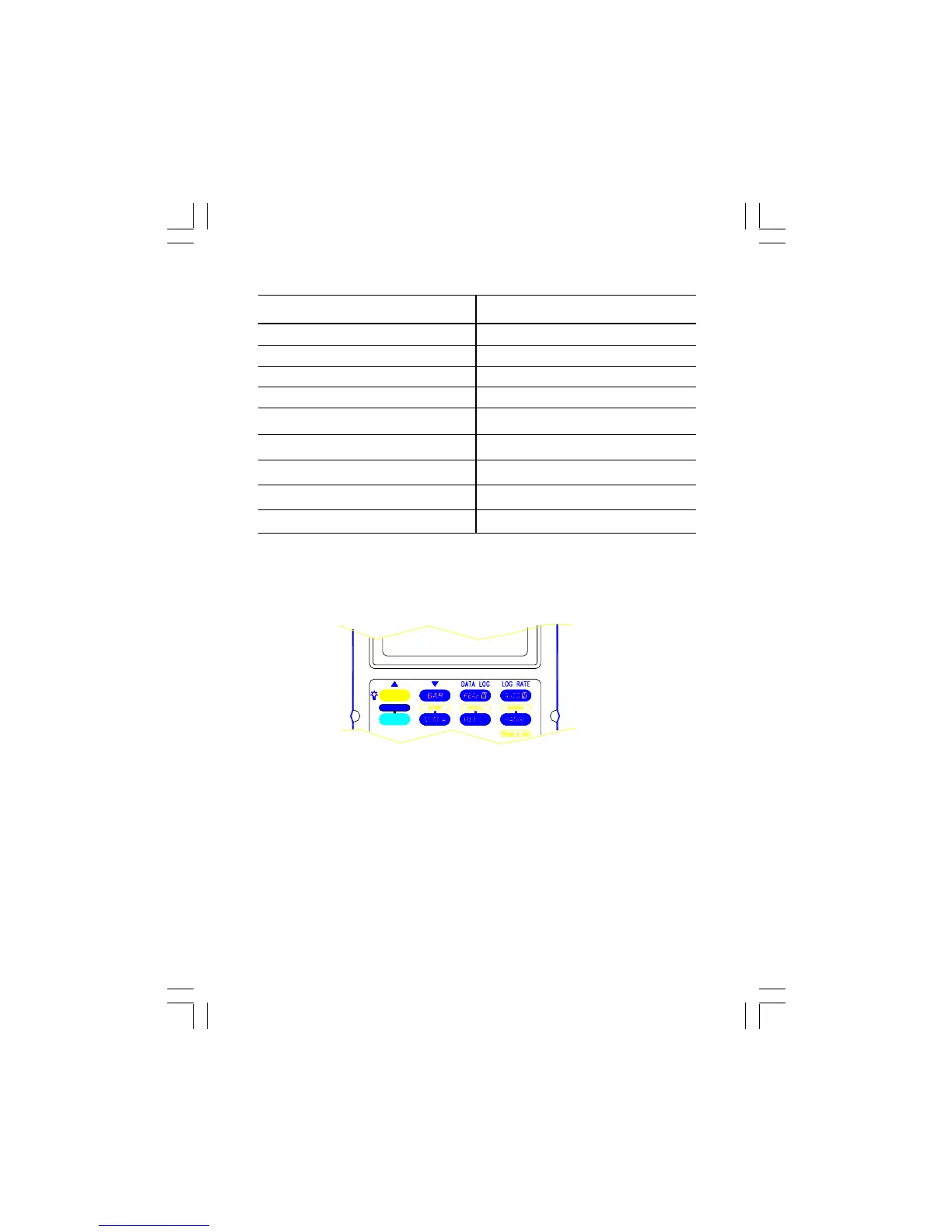

Figure 3
4.1 LIGHT
* This button is used to turn on or turn off the backlight.
* This button is disabled in DATA LOG functions.
4.2 BAR
* This button toggles analog bar center zero bar displays.
Zero at center.
Zero at center (graph zoomed ÷ 2).
* This button is disabled in DATA LOG and non-DC volt and current function.
