Appion G1 Single - High-Speed Direct Liquid Recovery Procedure

To Next Page

To Previous Page

Machine Usage

⚠CAUTION

To reduce the risk of injury or product damage, read this entire operating manual, with

particular emphasis on the Safety and Preparation sections (Page 3-8), prior to operating the G1Single.

HIGH-SPEED DIRECT LIQUID PROCEDURE

This recovery method allows for the fastest possible “direct liquid” recovery speeds. To maximize recovery

rates, be sure to follow all of the Preparing for Operation information on Page 8.

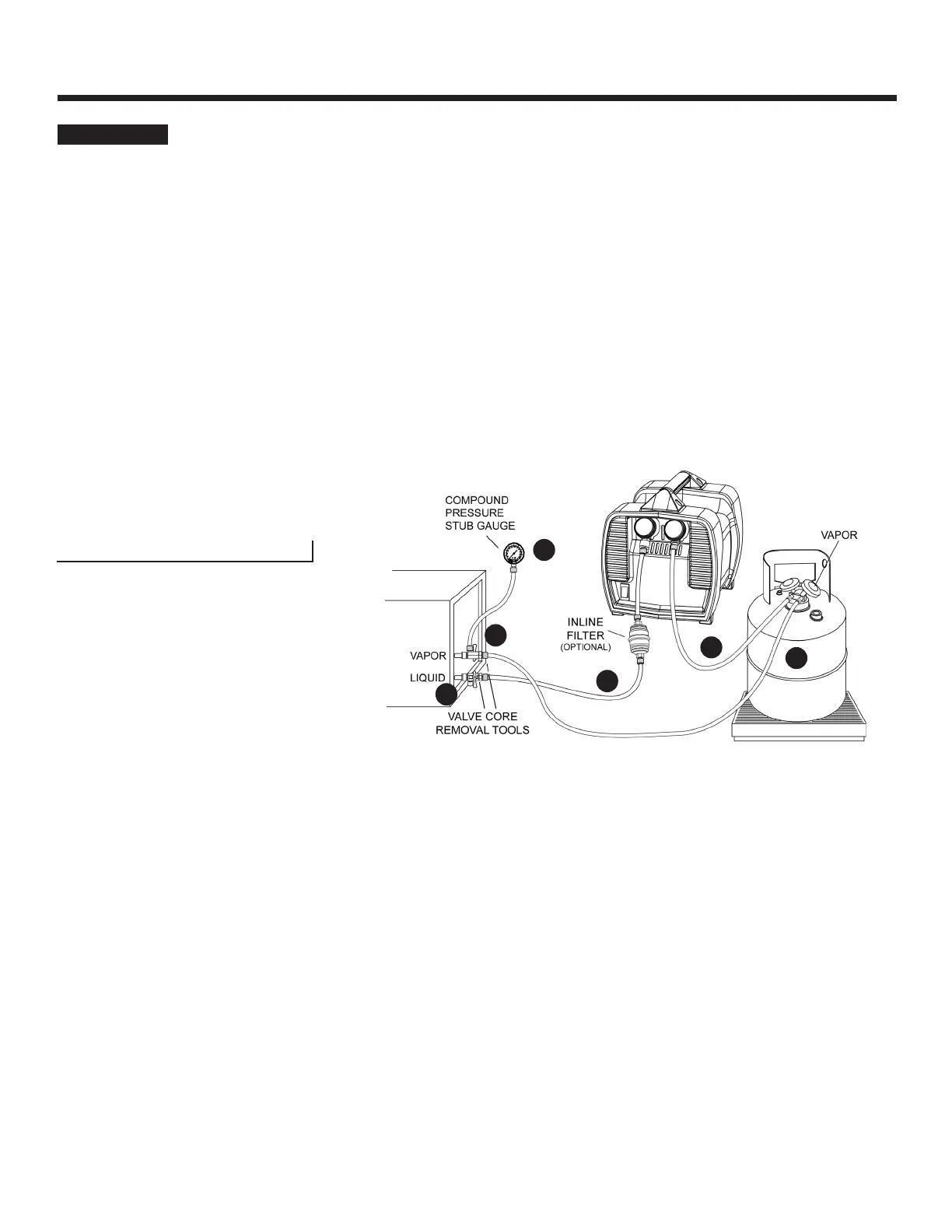

Diagram 5

This recovery method allows for

the fastest possible “direct liquid”

recovery speeds, although the

“vapor” phase of recovery may take a

little longer.

2. Close the Valve Core Removal Tool (VCRT) ball valves at both of the AC/R System Liquid and Vapor ports.

3. Open both valves on the Recovery Cylinder.

Make sure to completely open the Recovery Cylinder valves to prevent “output restrictions” (See Tip #1,

Page 14).

4. Turn on the G1Single. The compressor and fan should start.

5. Begin liquid recovery by opening both of the VCRT ball valves at the AC/R System access ports.

6. When all the liquid has been removed: close the Recovery Cylinder Vapor Valve.

7. Continue to run the G1Single until the EPA-required vacuum is achieved.

8. Close both of the VCRT ball valves.

9. Turn o the G1Single.

10. Close the valves on the Recovery Cylinder and disconnect the hoses.

✪ For additional refrigerant recovery tips, see pages 14-17.

1. Setup the G1Single as shown in Diagram 5 (below). Make sure that all connections are tight.

A. Connect a Valve Core Removal Tool to the AC/R System Liquid Port.

B. Connect a Valve Core Removal Tool to the AC/R System Vapor Port.

C. Connect the AC/R System Liquid Port to the G1Single input port.

D. Connect the G1Single output port to the Liquid Port on the Recovery Cylinder.

E. Connect the Cylinder Vapor Port to the AC/R System Vapor Port.

F. Connect a Compound Pressure Gauge to the AC/R System Vapor Port using a T-fitting or

a side-port on a valve core removal tool.
