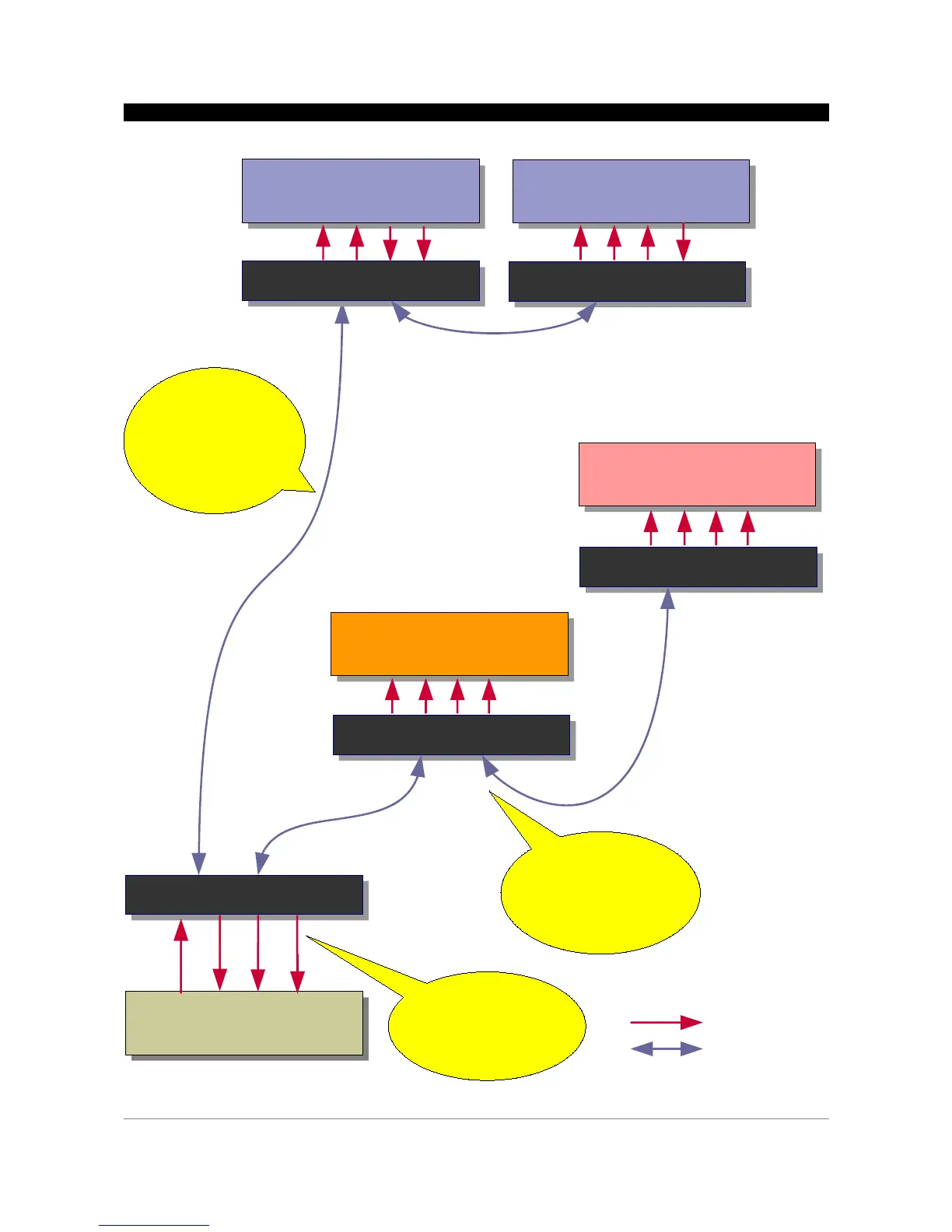

Application Systems ADX-32 - Typical Setup

2. Typical setup
4
Input/Output can
be set for each ADAT
at any point
Mixer
Mixer
ADAT Lightpipe
Cat.5 cable
ADC / DAC
ADC / DAC
ADX-32
ADX-32
ADC / DAC
ADC / DAC
ADX-32
ADX-32
Monitor
Monitor
ADX-32
ADX-32
ADX-32
ADX-32
Cat.5 cable
carrying 32 channels
up to 100m distance
Daisy-chaining allows
distribution up to
32 nodes
Multitrack Recorder
Multitrack Recorder
ADX-32
ADX-32
