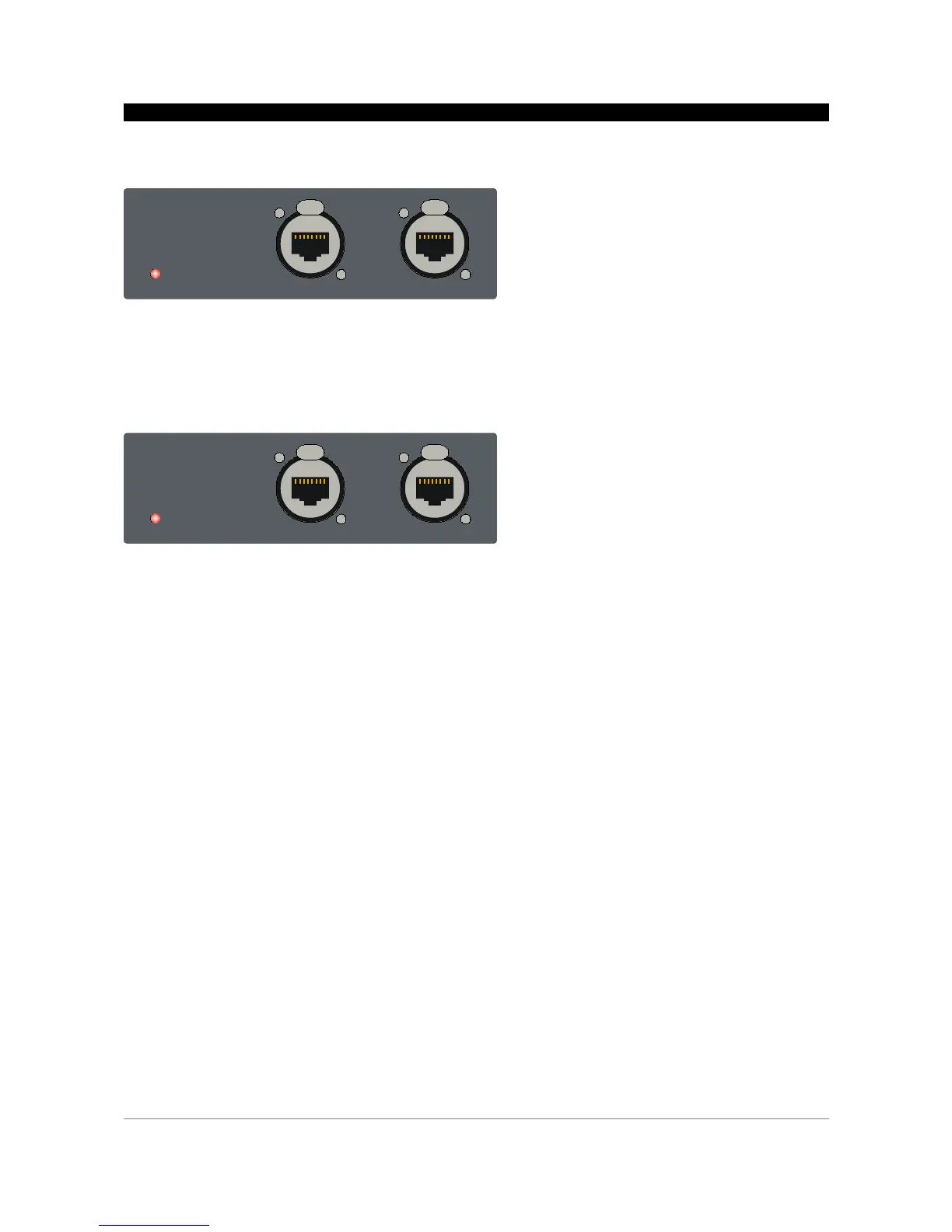

5. Front panel connections
5.1. Cat5 Connection 1 / Jacks „A“ and „B“
Transmits ADAT connections 1-4 over Cat5 cabling. Jacks „A“ and „B“ are electrically equal
(paralleled). Depending on the number of jacks used, the termination setting has to be altered (see
7.2. Termination (DIP switches 5-8)).
5.2. Cat5 Connection 2 / Jacks „A“ and „B“(ADX-64 only)
Transmits ADAT connections 5-8 over a second Cat5 cable.
The mode of operation is identical to connections 1-4.
6
Power
Cat5 Connection 1
A B
Power
Cat5 Connection 2
A B
