4.1.2 Connect to a LAN Hub (INTRANET)

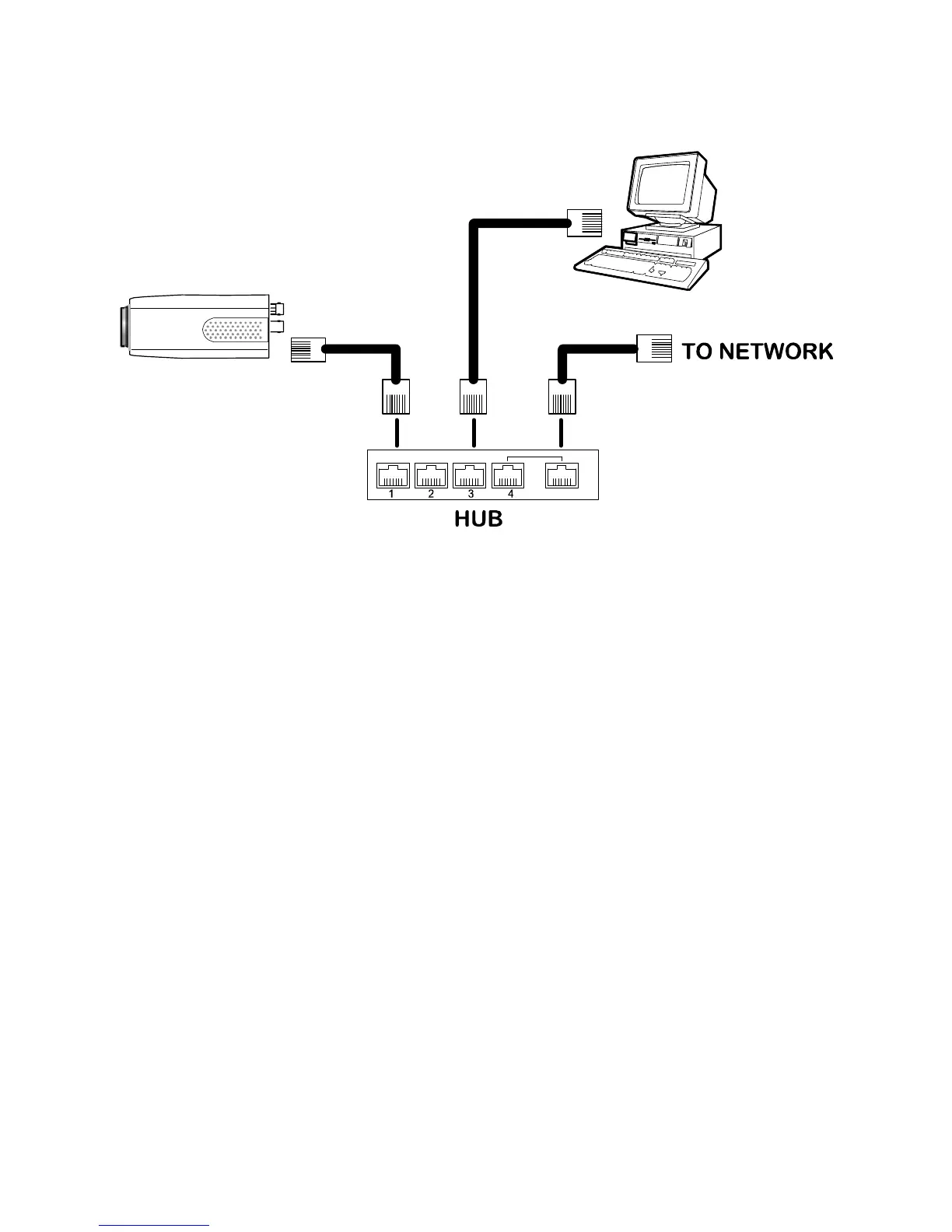

The RJ-45 PIN configuration for connecting with a LAN Hub is shown below.
RJ-45
LAN CAMERA
TO PC NETWORK CARD
uplink
