77
use and maintenance Atlantic 500
10
11
12
1

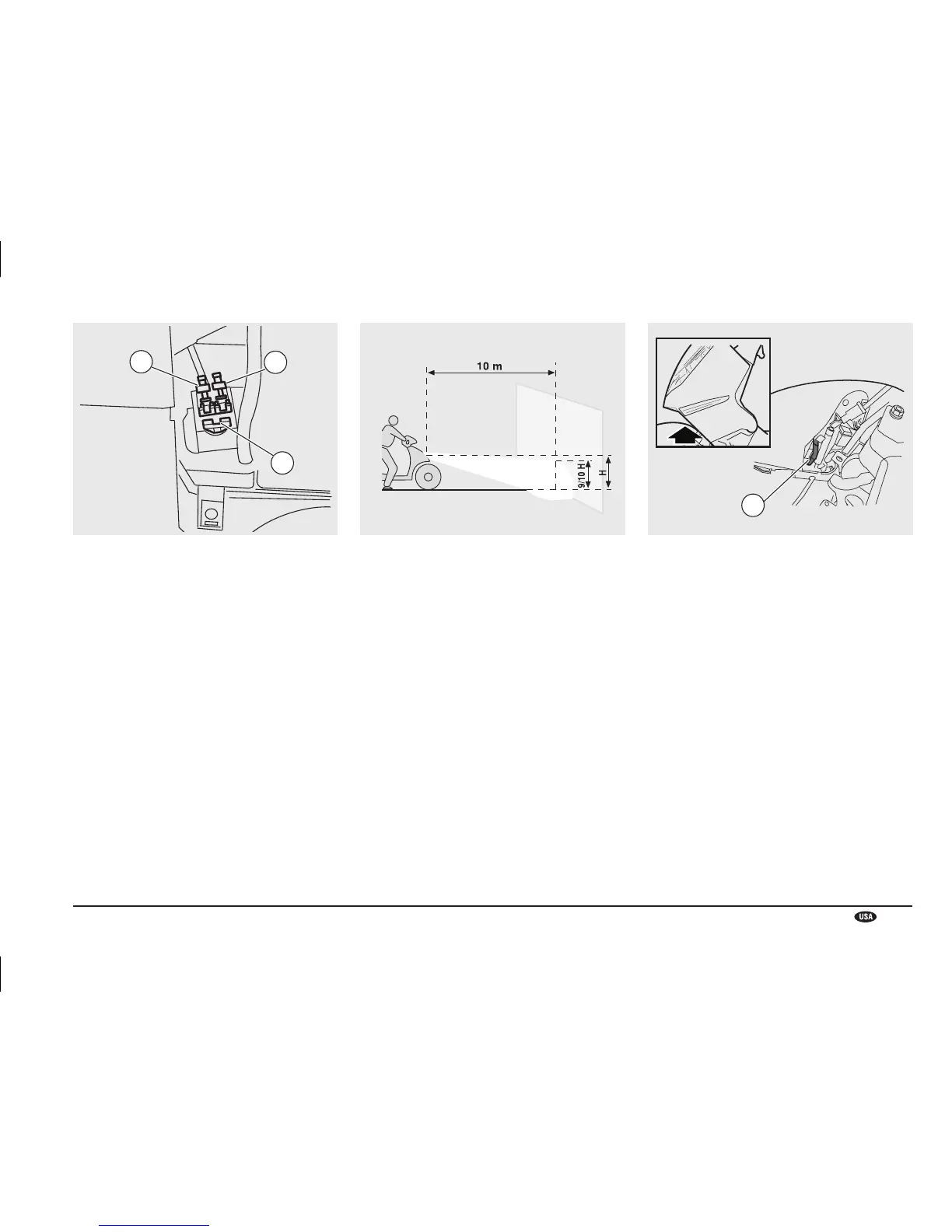

MAIN FUSE LAYOUT (BATTERY
COMPARTMENT)
– 30A Fuse (10)
From battery to: ignition switch, fuse (2),
helmet compartment light, cooling fan,
permanent dashboard power supply.
– 30A Fuse (11)
From battery to: voltage regulator, fuse (3),
fuse (5).
– 30A Fuse (12)
Spare.
VERTICAL ADJUSTMENT
HEADLIGHT BEAM
To quickly check the correct adjustment of
the beam, place the vehicle on flat ground,
32.81 ft (10 m) away from a wall.
Switch on the headlight, sit on the vehicle
and make sure that the headlight beam
projected onto the wall is just below the
horizontal line of the projector (approximately
9/10 of the total height).
To adjust the headlight beam:
♦ Adjust the knob (1) provided from the front
of the vehicle.
Turn CLOCKWISE to adjust the beam
higher.
Turn COUNTER-CLOCKWISE to adjust
the beam lower.
