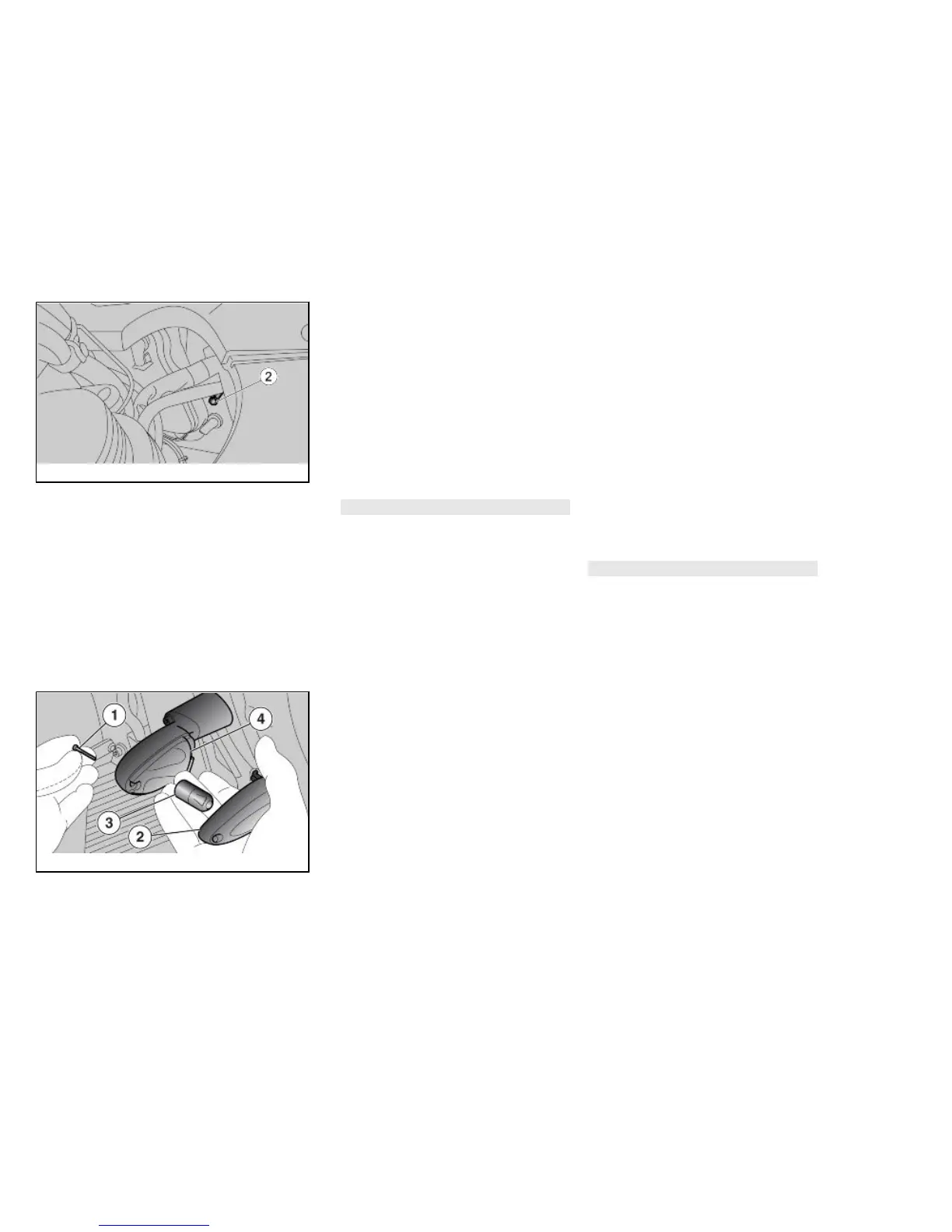

04_39
To set the horizontal placement of the
light beam:
Place the vehicle on the stand.
Working on the rear right side of
the dashboard guard, use a
short Phillips head screwdriver
on the appropriate screw (2).
TIGHTENING (clockwise), the
light beam will go left; LOOSEN-
ING (counterclockwise), the
light beam will go right.
NOTE
CHECK THAT THE LIGHT BEAM IS
CORRECTLY POSITIONED HORIZON-
TALLY.
Pour effectuer le réglage horizontal du
faisceau lumineux :
Positionner le véhicule sur la bé-
quille.
En opérant du côté arrière droit
de la bulle, agir avec un tourne-
vis court cruciforme sur la vis
respective (2). EN VISSANT
(sens des aiguilles d'une mon-
tre), le faisceau lumineux se dé-
place vers la gauche ; EN DÉ-
VISSANT (sens inverse des
aiguilles d'une montre), le fais-
ceau lumineux se déplace vers
la droite.
N.B.
VÉRIFIER QUE L'ORIENTATION HORI-
ZONTALE DU FAISCEAU LUMINEUX
EST CORRECTE.
04_40
Front direction indicators
(04_40)
Place the vehicle on the stand.
Unscrew and remove the screw
(1)
Remove the lens (2).
Press carefully on the bulb (3)
and turn it counterclockwise.
Remove the bulb (3) from its
housing.
Install a bulb of the same type
correctly.
Clignotants avant (04_40)
Positionner le véhicule sur la bé-
quille.
Dévisser et enlever la vis (1).
Déposer le verre (2).
Appuyer modérément sur l'am-
poule (3) et la tourner dans le
sens inverse des aiguilles d'une
montre.
Extraire l'ampoule (3) de son lo-
gement.
Installer correctement une am-
poule du même type.
201
4 Maintenance / 4 L’entretien
