65
use and maintenance Pegaso 650 I.E.
REASSEMBLY
◆ Spread a film of lubricating grease on the
whole length of the wheel pin (3), grease
the inside of the speedometer/odometer
control (5), see p. 104 (LUBRICANT
CHART).
◆ Position the tang of the speedome-
ter/odometer control (5) in the appropri-
ate seat of the wheel hub.

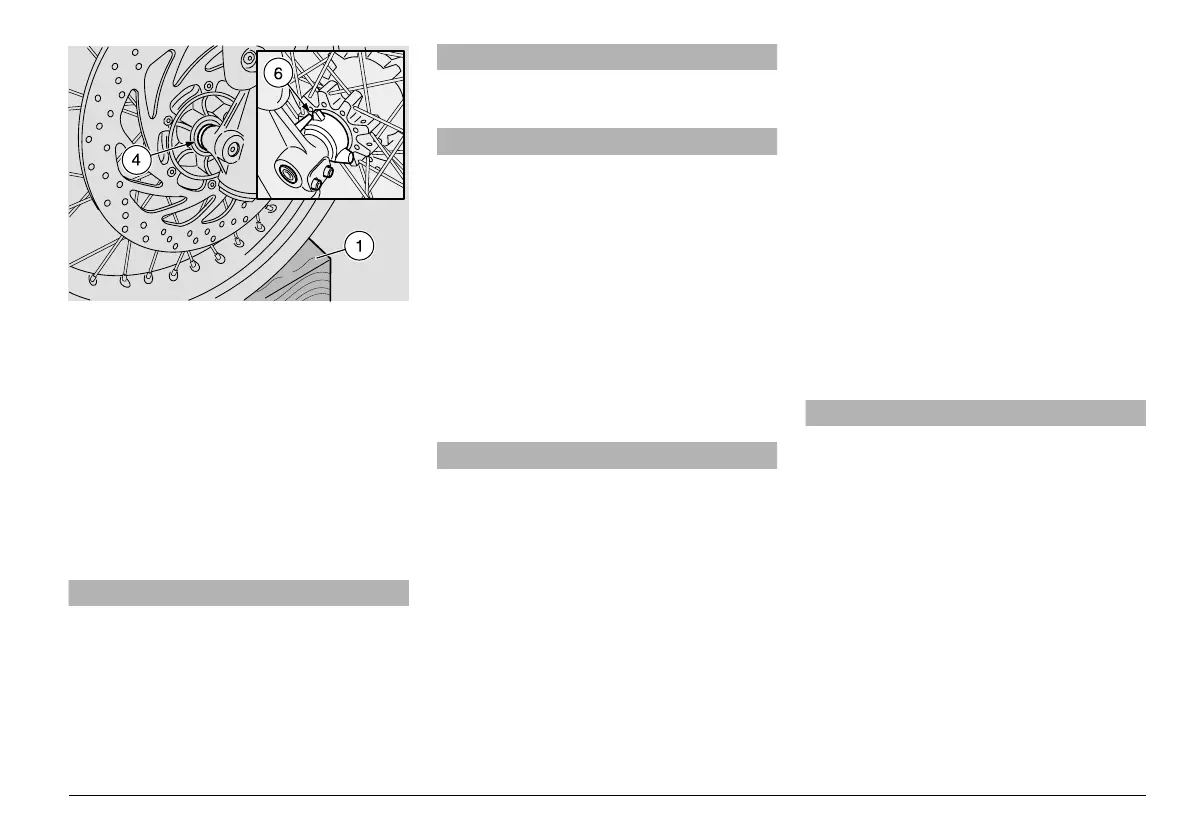

◆ Position the odometer control seat cor-
rectly, in correspondence with the spe-
cial antirotation pin (6).
aCAUTION
While reassembling the wheel, be care-
ful not to damage the brake pipes, discs
and pads.
◆ Position the wheel between the fork rods
on the support (1).
aCAUTION
Proceed with care while inserting the
disc in the brake caliper.
aWARNING
Danger of injury. Do not introduce your
fingers to align the holes.
◆ Move the wheel until its central hole and
the holes on the fork are aligned.
◆ Position the spacer ring (4) between the
wheel hub and the fork left rod.
◆ Introduce the wheel pin (3) completely
from the right side and tighten it.
wheel pin driving torque (3): 80 Nm (8
kgm).
◆ Remove the support (1) that upon disas-
sembly was put under the tyre.
aWARNING
Due to the weight and dimensions of
the vehicle, the following operation
must be performed by two persons.
NOTE Weight without driver (ready for
starting): 200 kg.
◆ Remove the front support stand, see p. 69
(POSITIONING THE VEHICLE ON THE
FRONT SUPPORT STAND m).
◆ Remove the rear support stand, see p. 69
(POSITIONING THE VEHICLE ON THE
REAR SUPPORT STAND m).
◆ With pulled front brake lever, press the
handlebar repeatedly, thrusting the fork
downwards. In this way the fork rods will
settle properly.
◆ Position the vehicle on the stand, see p.
52 (POSITIONING THE VEHICLE ON
THE STAND).
◆ Tighten the two wheel pin clamp screws
(2) (right side).
Wheel pin clamp screw driving torque
(2): 12 Nm (1.2 kgm).
◆ Make sure that the following components
are not dirty:
– tyre;
– wheel;
– brake discs.
aWARNING
After reassembly, pull the front brake le-
ver repeatedly and check the correct
functioning of the braking system.
Have the driving torques, centering and
balancing of the wheel checked by your
APRILIA Official Dealer, in order to avoid
accidents that may be harmful for you
and/or other people.
