use and maintenance Pegaso 650 I.E.
2%!26)%7-)22/23
aWARNING
Do not use the vehicle with the rear-
view mirrors turned incorrectly.
Before leaving, always make sure that
the rear-view mirrors are not rotated up-
wards and are correctly adjusted.
aWARNING
For the adjustment of the rear-view mir-
rors, wear clean gloves or use a clean
cloth, in order to avoid dirtying the re-
flecting surface and reducing visibility.

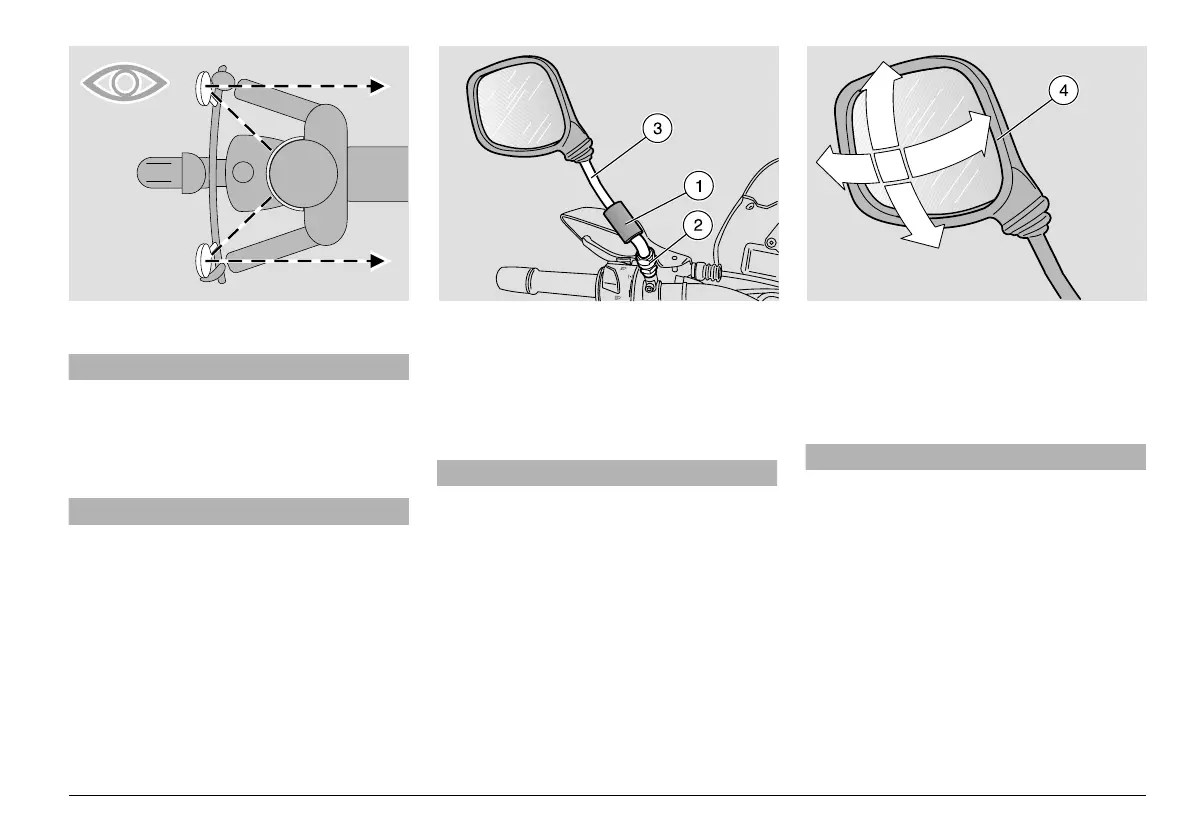

REMOVING THE REAR-VIEW MIRRORS
◆ Position the vehicle on the stand, see p.
52 (POSITIONING THE VEHICLE ON
THE STAND).
◆ Raise the protection element (1).
◆ Loosen and remove the stop nut (2).
aCAUTION
Upon reassembly, before tightening the
lock nut (2), make sure that the rear-
view mirror support rod is directed in
such a way as to be aligned with the
handlebar.
◆ Withdraw the entire rear-view mirror unit
(3) upwards and remove it.
Repeat these operations to remove the
other rear-view mirror.
ADJUSTMENT OF THE REAR-VIEW
MIRRORS
◆ Get on the vehicle in riding position, see
p. 40 (GETTING ON AND OFF THE VE-
HICLE).
aCAUTION
Handle the components with care.
◆ Rotate the rear-view mirror (4) and ad-
just the inclination correctly.
Repeat the same operations to adjust the
other rear-view mirror.
◆ Make sure that there are no dirt or mud
deposits.
