use and maintenance Pegaso 650 I.E.

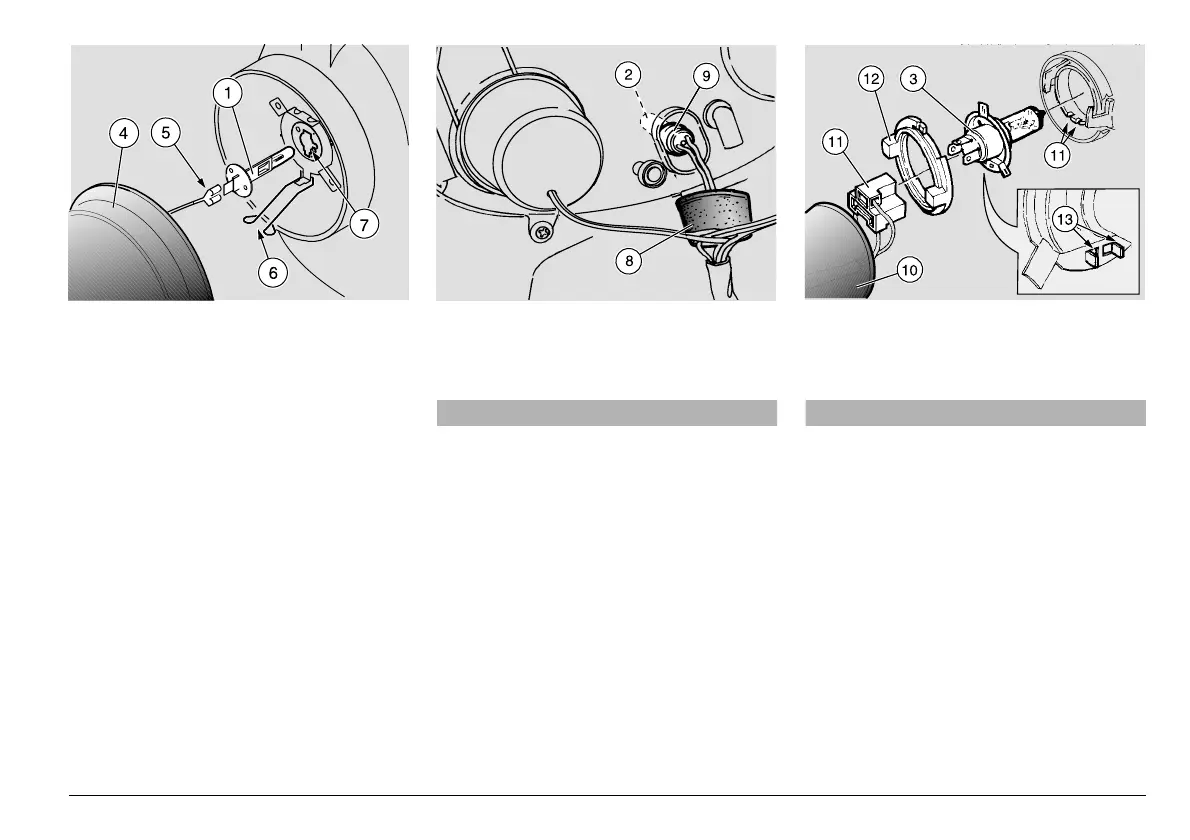

HIGH BEAM BULBS
◆ Move the protection element (4) with
your hands.
◆ Grasp the electric terminal (5), pull it and
disconnect it from the bulb (1).
◆ Release the check spring (6) positioned
at the rear of the bulb socket (7).
◆ Extract the bulb (1) from its seat and re-
place it with a new one of the same type.
NOTE Insert the bulb in the bulb socket,
making the relevant positioning seats coin-
cide.
PARKING LIGHT BULB
◆ Move the protection element (8) with
your hands.
aCAUTION
To extract the bulb socket, do not pull
the electric wires.
◆ Grasp the parking light bulb socket (9),
pull it and remove it from its seat.
◆ Withdraw the bulb (2) and replace it with
one of the same type.
LOW BEAM BULB/HIGH BEAM
◆ Move the protection element (10) with
your hands.
aCAUTION
To extract the bulb electric connector,
do not pull its electric wires.
◆ Grasp the bulb electric connector (11),
pull it and disconnect it from the bulb (3).
◆ Rotate the bulb socket (12) anticlockwise
and extract it from its seat.
◆ Press the bulb (3) slightly and rotate it
anticlockwise.
◆ Extract the bulb (3) from its seat and re-
place it with a new one of the same type.
NOTE Insert the bulb in the bulb socket,
making the appropriate tangs (13) coincide
with the relevant seats (14) on the reflec-
tor.
