92
use and maintenance Pegaso 650 I.E.
#(!.').'4(%&53%3
Carefully read p. 55 (MAINTENANCE).
aCAUTION
Do not repair faulty fuses.
Never use fuses different from the rec-
ommended ones.
The use of unsuitable fuses may cause
damages to the electric system or, in
case of short circuit, even a fire.
NOTE If a fuse blows frequently, there
probably is a short circuit or an overload in
the electric system.
In this case it is advisable to consult an
aprilia Official Dealer.
If an electric component does not work or
works irregularly, or if the vehicle fails to
start, it is necessary to check the fuses.

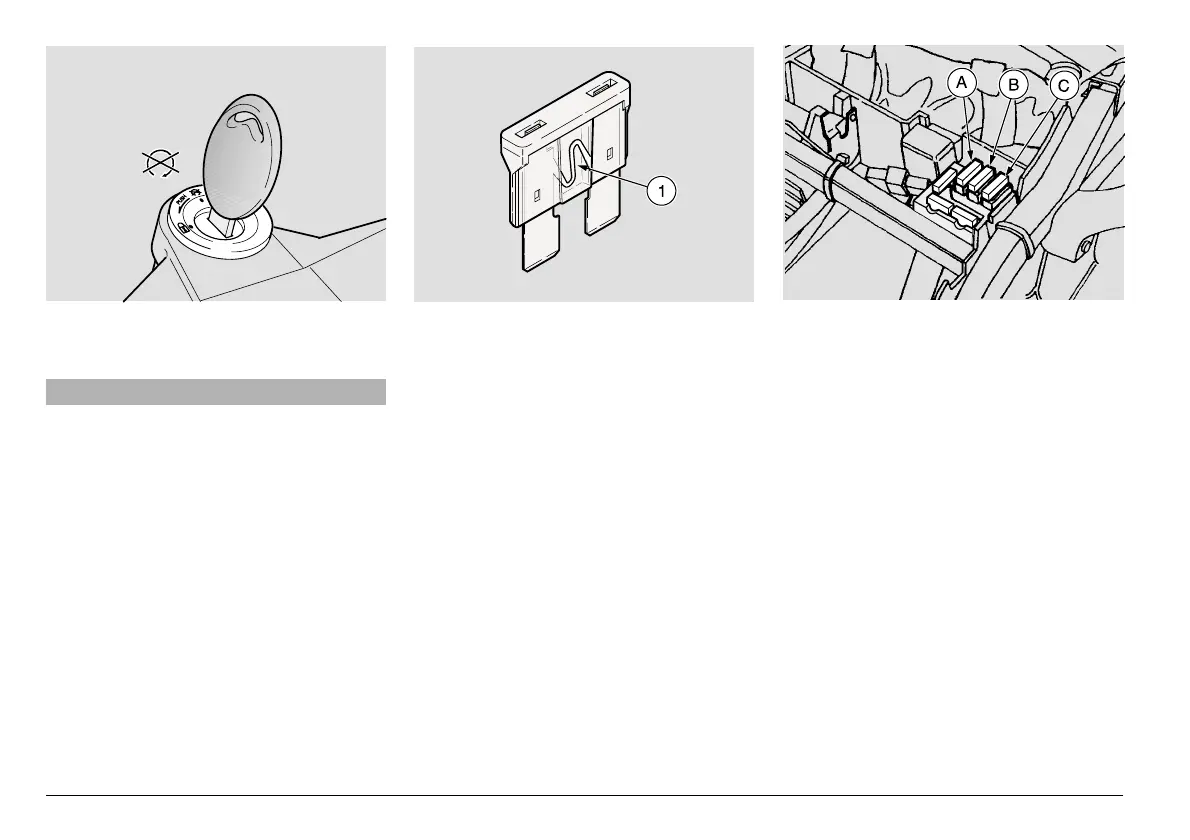

For the check, proceed as follows:
Turn the ignition switch to position “1”,
to avoid any accidental short circuit.
Remove the rider saddle, see p. 21 (UN-
LOCKING/LOCKING THE SADDLE).
Extract the fuses one by one and check if
the filament (1) is broken.
Before replacing a fuse, try to find out the
cause of the trouble, if possible.
Replace the damaged fuse with a new
one having the same amperage.
NOTE If you use one of the spare fuses,
put a new fuse in the proper seat.
ARRANGEMENT OF THE FUSES
A) Fuse 20 A (yellow) – From battery
to:
ignition switch, voltage regulator, elec-
tric cooling fan.
B) Fuse 15 A (light blue) – From igni-
tion switch to:
all light loads.
C) Fuse 7.5 A (red) – From ignition
switch to:
ignition, starting safety logic.
NOTE Three fuses are spare fuses.
