93
use and maintenance Pegaso 650 I.E.
!$*534).'4(%6%24)#!,
(%!$,)'(4"%!-
NOTE To check the direction of the
headlight beam, specific procedures must
be adopted, in accordance with the regula-
tions in force in the country where the vehi-
cle is used.
I

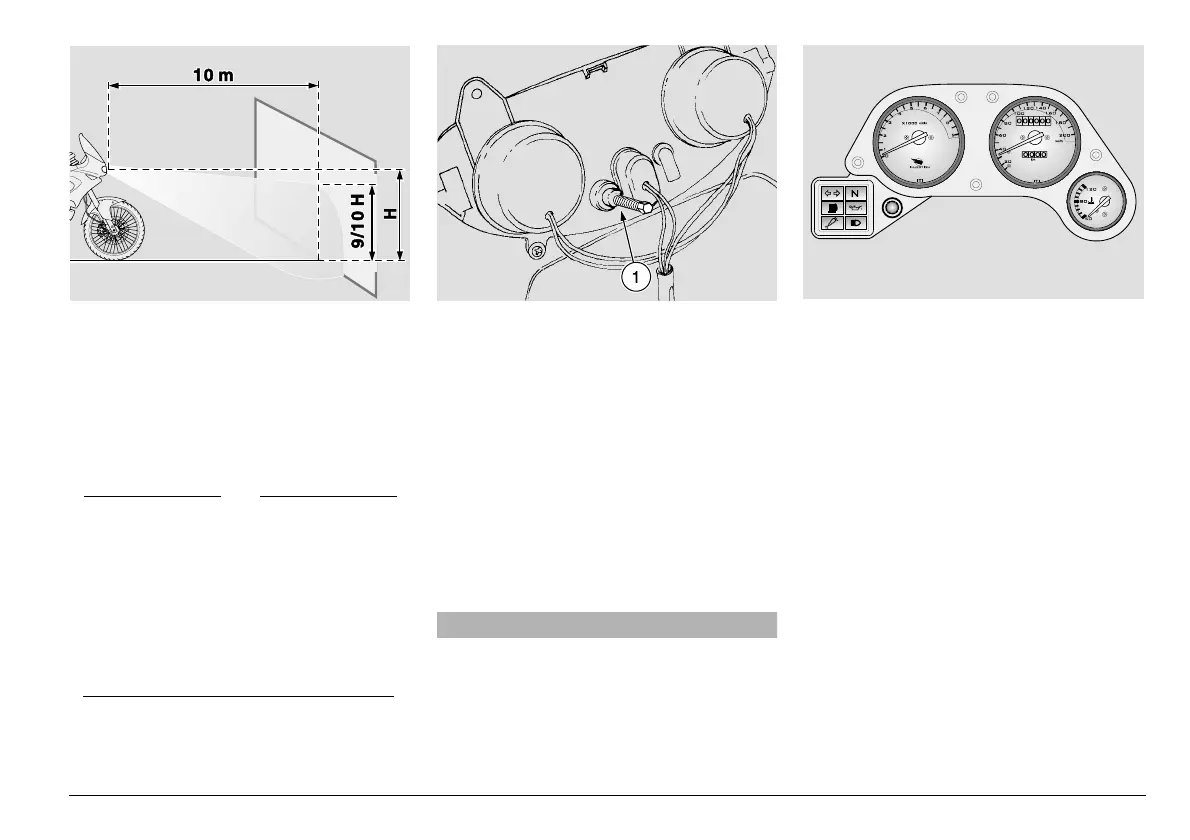

To rapidly check the correct direction of the
beam, place the vehicle on flat ground, 10
m away from a wall.
Turn on the low beam, sit on the vehicle
and make sure that the beam projected on
the wall is slightly under the horizontal line
of the headlight (about 9/10th of the total
height).
To adjust the headlight beam:
◆ Position the vehicle on the stand, see p.
52 (POSITIONING THE VEHICLE ON
THE STAND).
◆ Working on the lower side of the front
part of the fairing, act on the appropriate
screw (1) with the spanner (8 mm) pro-
vided in the tool kit.
BY ROTATING IT CLOCKWISE, you set
the beam upwards.
BY ROTATING IT ANTICLOCKWISE,
you set the beam downwards.
After the adjustment:
aWARNING
Make sure that the vertical adjustment
of the headlight beam is correct.
$!3("/!2$,)'(4).'
If you need assistance or technical advice,
consult your aprilia Official Dealer, who
can ensure you prompt and accurate serv-
icing.
