67
use and maintenance Pegaso 650 I.E.
aCAUTION
Do not operate the rear brake lever after
removing the wheel, since the pins may
go out of their seats and cause brake
fluid leakages. In this case consult your
APRILIA Official Dealer, who will carry
out the proper maintenance operation.
NOTE The support plate (8) of the brake
caliper (9) remains positioned on the left
side of the rear fork.

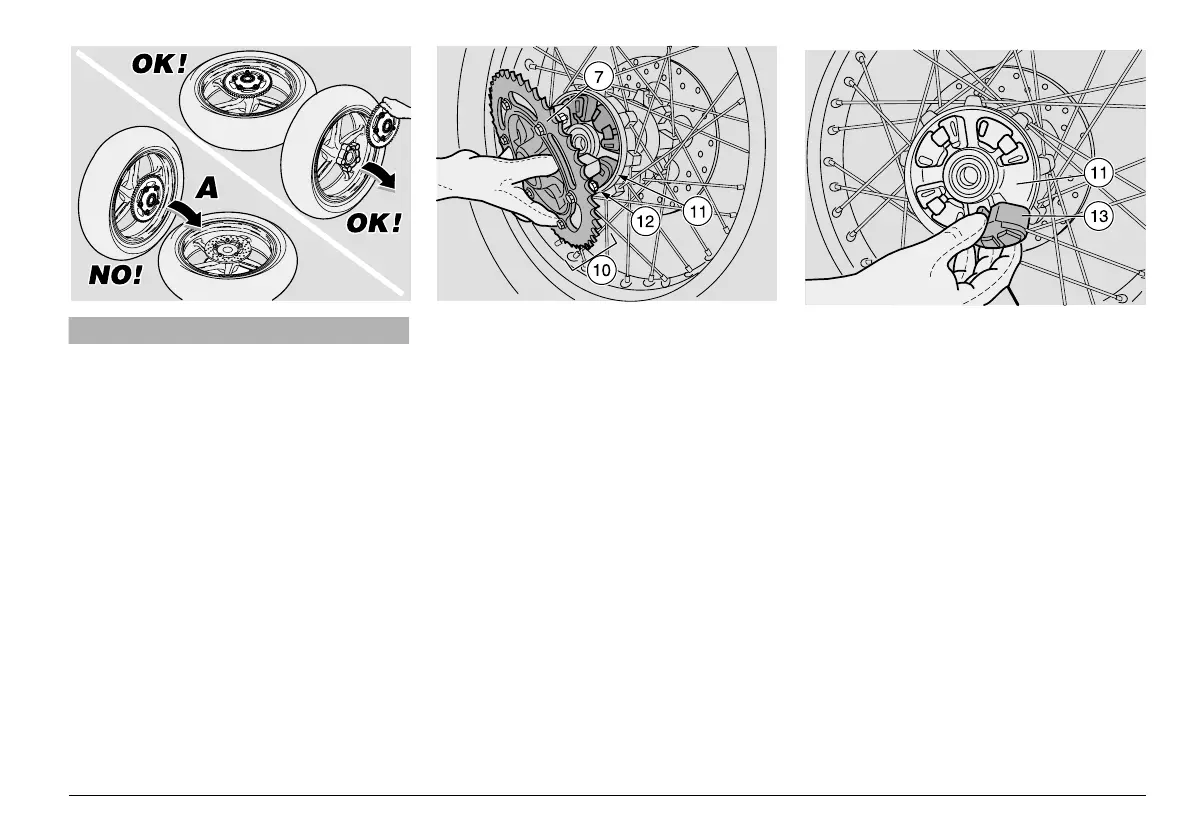

Proceed with care. If the final drive unit
(10) is installed on the flexible coupling
holder (11), do not overturn or rotate the
rear wheel in horizontal position on the rear
sprocket side (A), since the final drive unit
would come off and fall down, with the risk
of damaging the rear sprocket (7).
NOTE The removal of the final drive unit
isn’t necessary if the wheel is in the normal
running position (vertical) or in horizontal
position with the rear sprocket facing up-
wards and in both cases secured against
overturning.
NOTE Do not unscrew the six nuts (12).
The whole final drive unit must be with-
drawn from the flexible coupling holder.
◆ Withdraw the final transmission unit (10),
keeping it parallel to the wheel axis.
◆ Remove the four flexible couplings (13)
from the flexible coupling holder (11).
NOTE Check the conditions of the four
flexible couplings (13); if they are damaged
or excessively worn, change them, see p.
56 (REGULAR SERVICE INTERVALS
CHART).
REASSEMBLY
NOTE Insert the final transmission unit,
parallel to the wheel axis, introducing the
drive pins in the relevant seats, between a
flexible coupling and the other.
◆ Position the four flexible couplings (13) in
the relevant seats in the flexible coupling
holder (11).
◆ Insert the final drive unit in the flexible
coupling holder (11).
