use and maintenance Pegaso 650 I.E.
aCAUTION
Before proceeding with the reassembly,
make sure that support plate (8) of the
brake caliper (9) is positioned correctly;
the plate slot must be inserted in the ap-
propriate stop pin in the inner part of
the rear fork right rod.
Insert the disc in the brake caliper care-
fully.

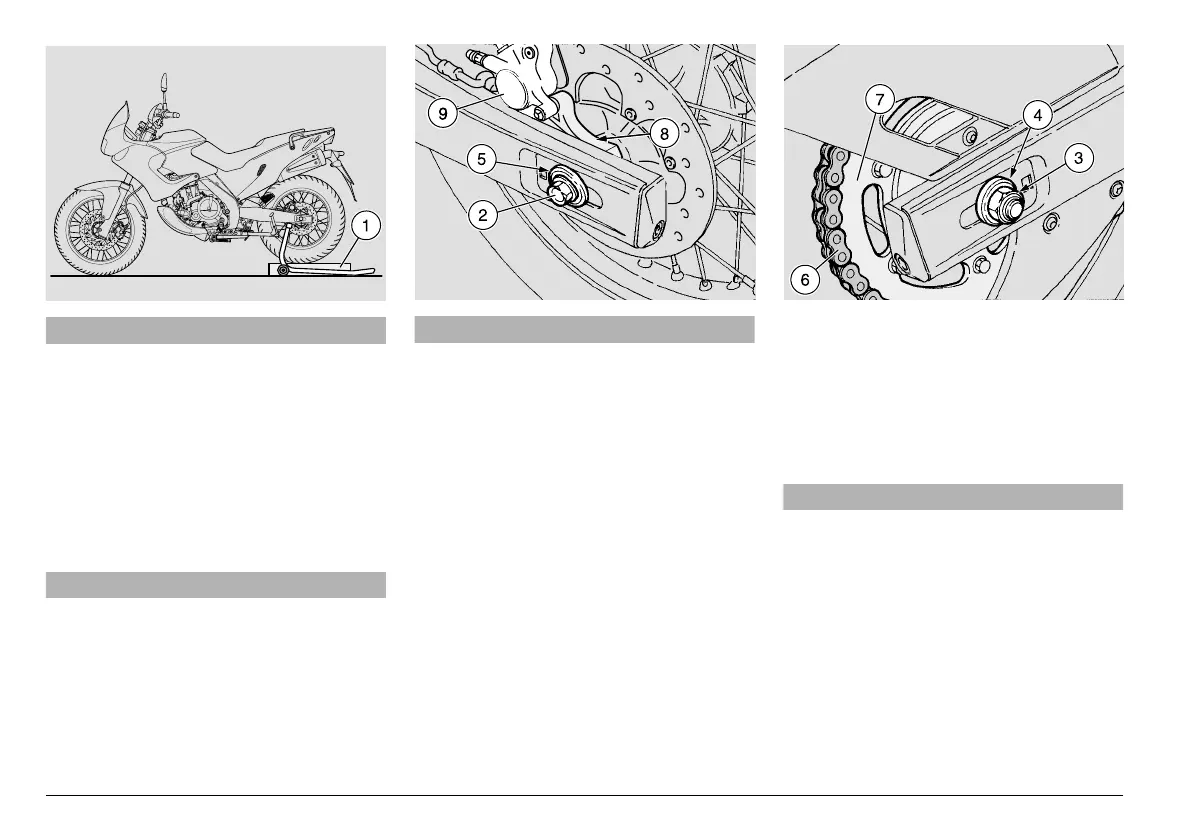

◆ Position the wheel between the rear fork
rods on the support (1).
aWARNING
Do not introduce your fingers between
the chain and the crown gear.
◆ Make the wheel advance and position
the drive chain (6) on the crown gear (7).
◆ Uniformly apply a moderate quantity of
grease on the wheel pin (2), see p. 104
(LUBRICANT CHART).
aWARNING
Danger of injury.
Do not introduce your fingers to align
the holes.
◆ Move the wheel backwards, until its cen-
tral hole and the holes on the rear fork
are aligned.
◆ Rotate the support plate (8), complete
with brake caliper (9) and with fulcrum on
the stop pin, until it is aligned with the
holes.
◆ Insert the washer (5) in the wheel pin (2).
◆ Introduce the wheel pin (2) completely
from the left side.
NOTE Make sure that the wheel pin (2)
is completely inserted.
◆ Position the washer (4) and tighten the
wheel nut (3) manually.
◆ Lock the rotation of the wheel pin (2) with
the appropriate key and tighten the nut
(3).
Wheel nut driving torque (2–3): 100 Nm
(10 kgm).
◆ Make sure that the following components
are not dirty:
– tyre;
– wheel;
– brake discs.
aCAUTION
After reassembly, pull the rear brake le-
ver repeatedly and check the correct
functioning of the braking system.
Have the driving torques, centering and
balancing of the wheel checked by your
APRILIA Official Dealer, in order to avoid
accidents that may be harmful for you
and/or other people.
