69
use and maintenance Pegaso 650 I.E.
0/3)4)/.).'4(%6%()#,%/.
4(%2%!23500/2434!.$m

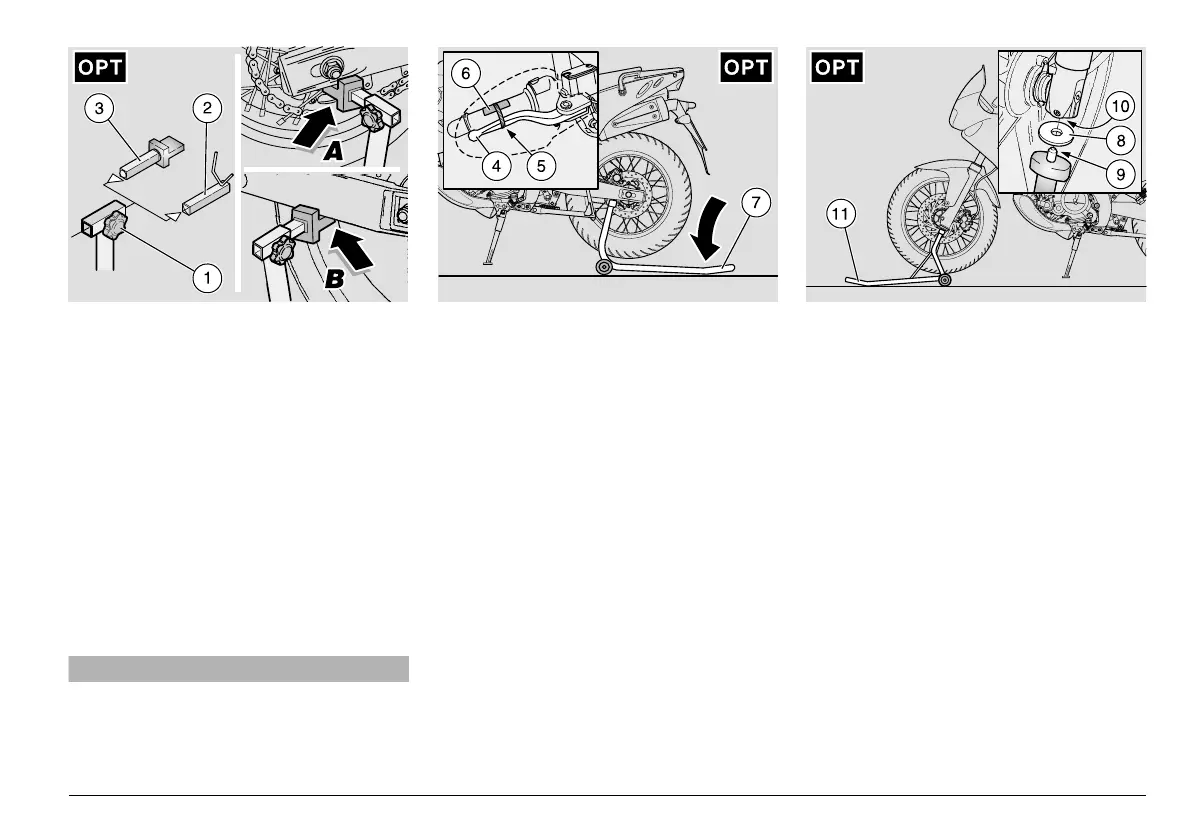

◆ Loosen the knob (1).
◆ Withdraw the fork support (2) and extract
it from the stand seat.
◆ Insert the support pin (3).
◆ Repeat the previous operations on the
opposite side of the stand.
◆ Remove the two drive chain guards, see
p. 74 (REMOVING THE DRIVE CHAIN
GUARDS).
◆ Pull the front brake lever (4) completely,
then put a small piece of cardboard (5)
on the grip and keep the front brake lever
pulled by holding it against the grip by
means of a plastic band (6).
aWARNING
Raise the vehicle by means of the two
rear fork arms only.
◆ Insert the stand from the rear side of the
vehicle and position it so that the two
support pins (3) rest on the lower part of
the rear fork rods:
– the right support (Pos.A);
– the left support (Pos.B).
◆ Withdraw the support pins (3) and make
them hit against the rear fork.
◆ Tighten the two knobs (1).
◆ Push the stand forward (7) until the sup-
port pin (3) rests, on the right side, against
the rear fastening plate of the lower chain
guard.
NOTE Have someone help you keep the
vehicle in vertical position with the two
wheels on the ground.
◆ Rest one foot on the rear part of the
stand (7).
◆ Push the stand (7) downwards until it
reaches the end of its stroke (see figure).
0/3)4)/.).'4(%6%()#,%/.
4(%&2/.43500/2434!.$m
NOTE To position the vehicle on the
front support stand it is necessary to use
the appropriate rear support stand m.
◆ Position the vehicle on the appropriate
rear support stand m, p. 69 (POSI-
TIONING THE VEHICLE ON THE REAR
SUPPORT STAND m).
◆ Position the two appropriate washers (8)
on the upper ends (9) of the stand.
◆ Insert the two ends of the stand (9) in the
two holes (10) positioned on the lower
ends of the front fork.
◆ Rest one foot on the front part of the
stand (11).
◆ Push the stand (11) downwards until it
reaches the end of its stroke (see figure).
