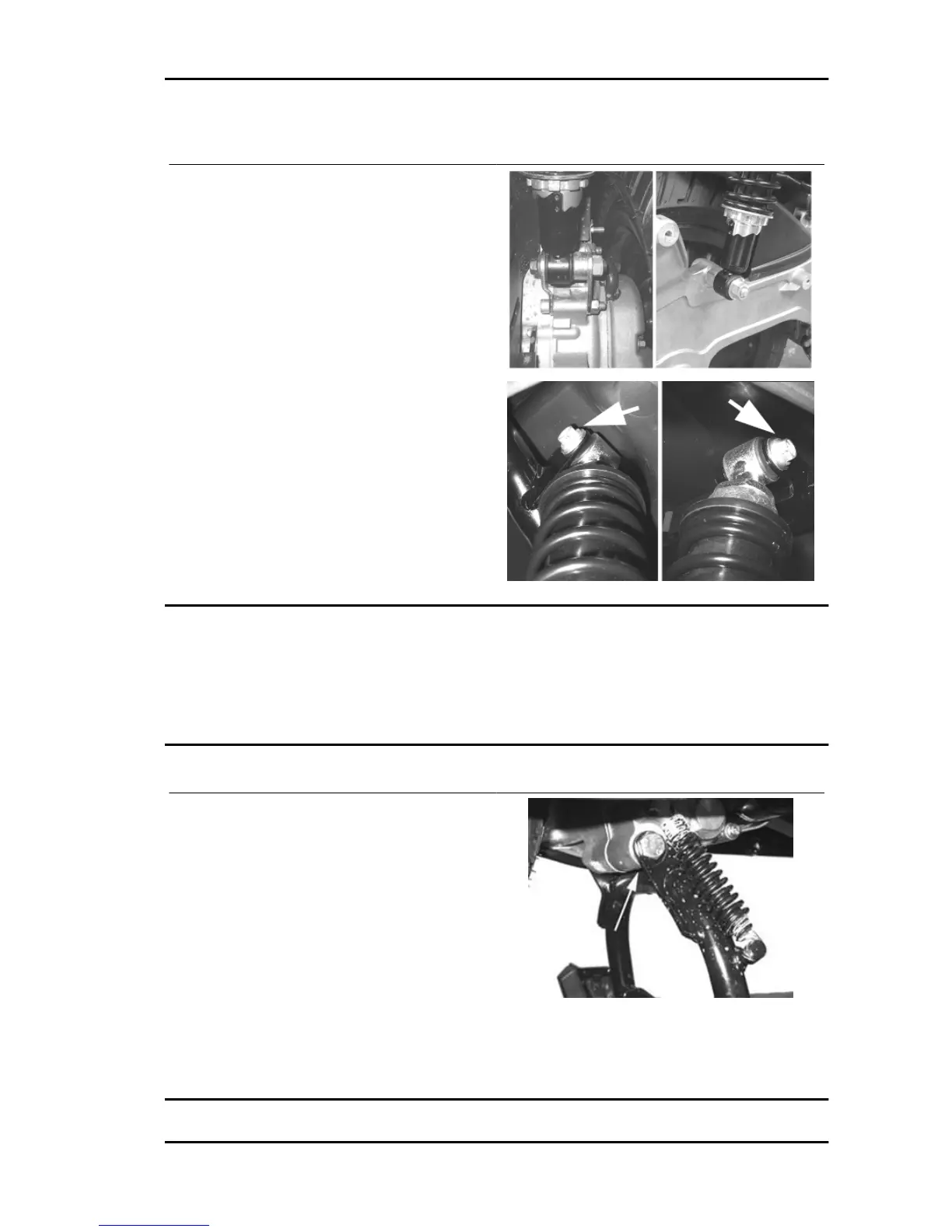

Removal
Proceed as follows:
- place the vehicle on its centre stand;
- lift the engine a little with a jack so as to free the
two shock absorbers;
- remove the silencer
- undo the shock absorber spring assembly clamp-
ing screw from the support fixed to the engine on
the one side and from that fixed to the silencer on
the other;
- unscrew the two upper nuts (one on each side)
fixing the shock absorber spring assembly to the
frame and remove the shock absorbers.
Refitting
Carry out the previous operations but in reverse order.
Locking torques (N*m)
Shock absorber lower clamping 33 to 41 Shock absorber upper clamp 33 to 41
Centre-stand
REMOVAL
- Use a jack to support the vehicle properly.
- Remove the two return springs from the centre
stand.
- Undo the nut shown in the figure.
- Remove the pin from the right side.
- Remove the centre stand.
FITTING
- On refitting tighten the nut to the specified torque.
Locking torques (N*m)
Centre stand bolt 32 to 40
SR MAX 125 ie Suspensions
SUSP - 229
