- In order to remove the wheel housing it is necessary to remove the front brake hose to the tank and
combination with the splitter.

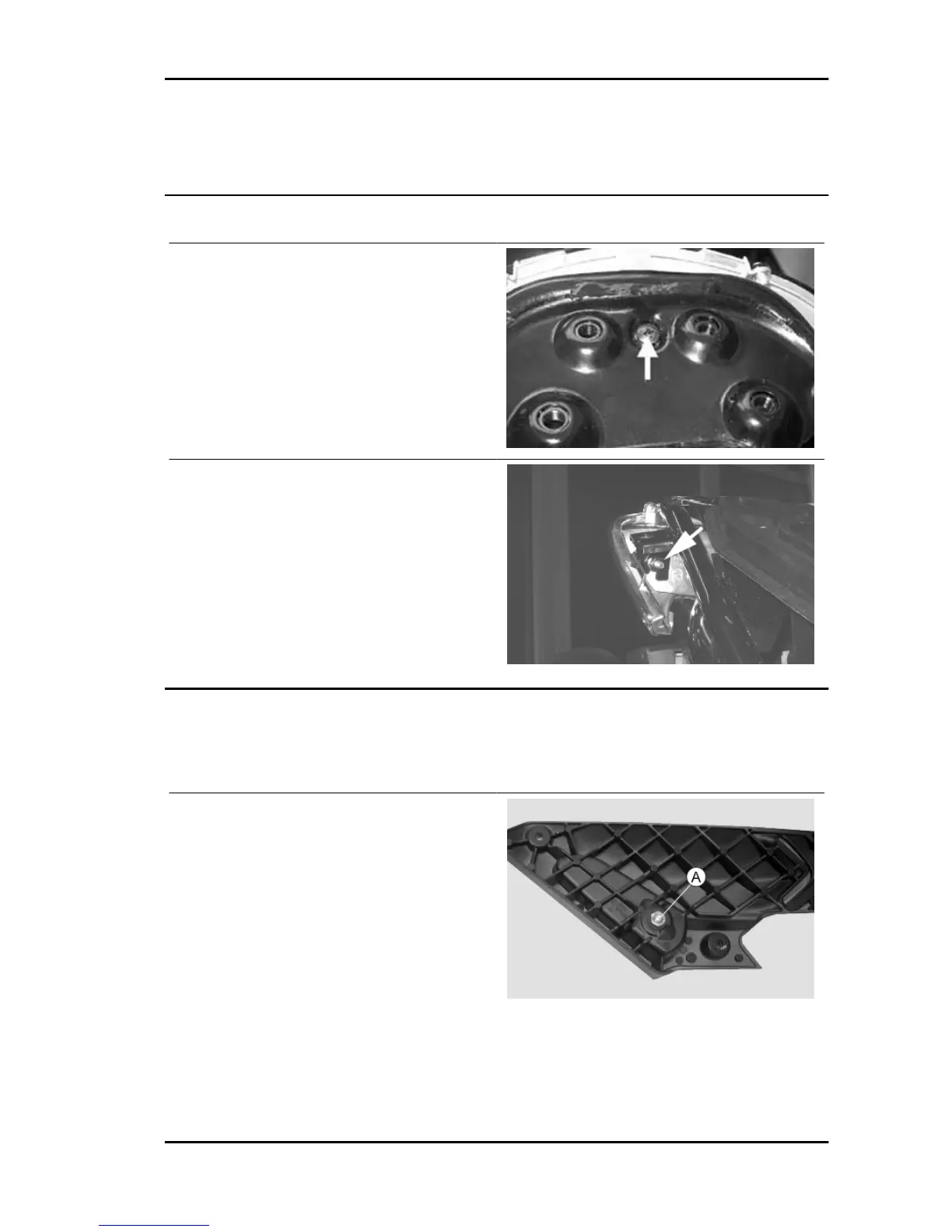

Taillight assy.
To remove the rear light assembly, proceed as fol-
lows:
- Remove the rear upper central cover.
- Remove the handgrips and the upper side fair-
ings.
- Undo and remove the central screw.
- Using a jointed wrench between the helmet com-
partment and the chassis pipes, loosen the two
rear fixing nuts and then disconnect the light stud
bolts from the support extensions.
- Remove the light and disconnect the bulb holder
by turning it through 30° in anticlockwise direction.
Footrest
The footrest comprises a right and left footrest, a passenger footrest and a rider footrest. The whole
procedure is described below:
PASSENGER FOOTREST:
- Remove the side fairings.
- Unscrew the nut «A» from both vehicle sides and
release the footrests.
SR MAX 125 ie Chassis
CHAS - 261
