APsmart RSD-D - Step 1: Mounting the RSD-D

User Manual
7
Mounting brackets
Step 1: Install the RSD-D.

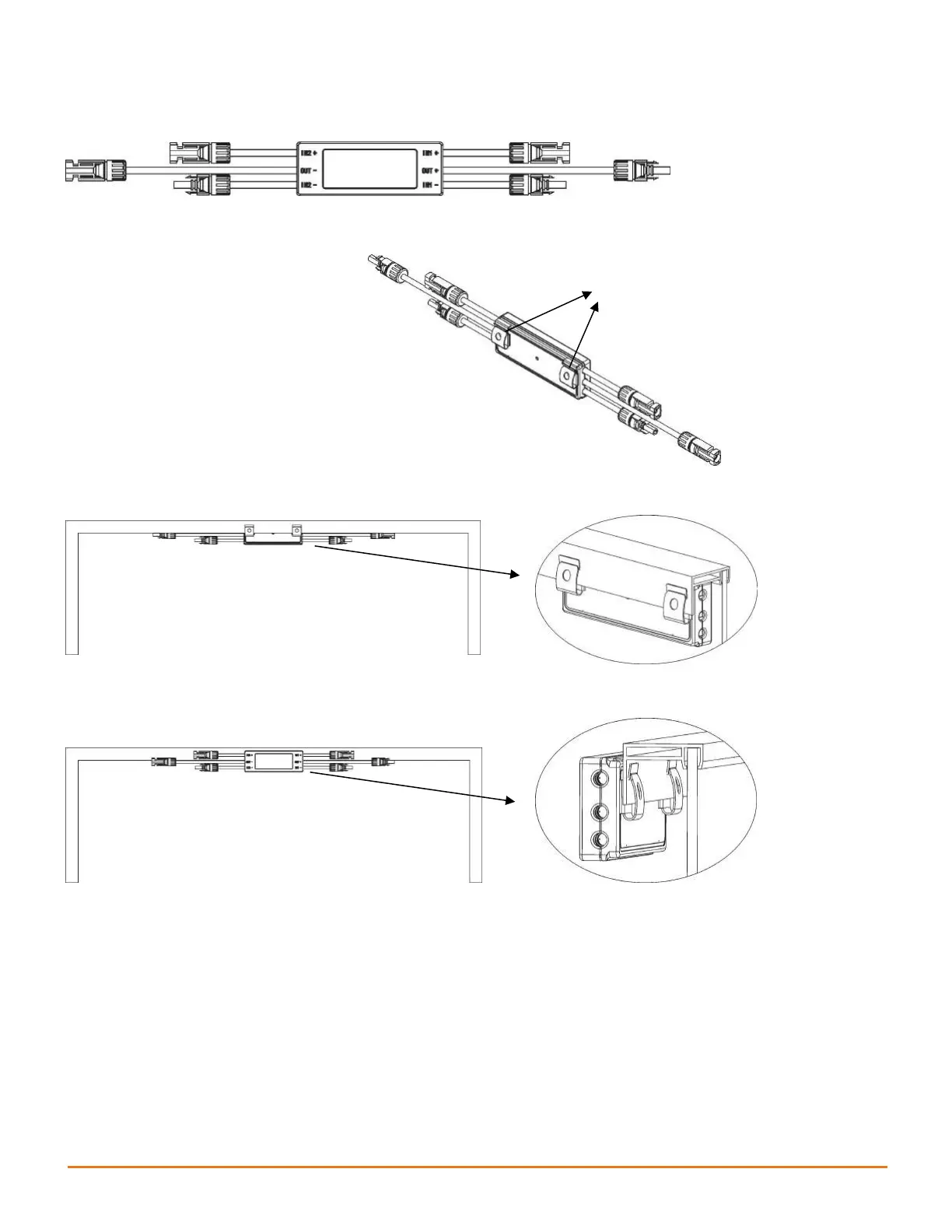

Buckle RSD-D onto the PV module frame.
A. Back buckle
B. Front buckle
OUTPUT- OUTPUT+
INPUT2+ INPUT1+
INPUT2- INPUT1-
