TECHNICAL DATA—TRANSMITTER-PLC
Model Transmitter-PLC
Main Electrical Data
Input Voltage 12 VDC
Input Current 0.5A
Communication P LC
Power Supply
Residential（optional） 85-264VAC Input, 12VDC Output,
90 mm x 17.5 mm x 58.4 mm
Commercial（optional）
180-550 VAC Input, 12VDC Output,
125.2 mm x 32 mm x 102 mm
Core Data
Max. Current 300A （150AX2）
Max. System Voltage 1500VDC
Inner Hole Size Of Core
Inner Diameter 29mm
Max. Supported PV Modules per String 30 modules

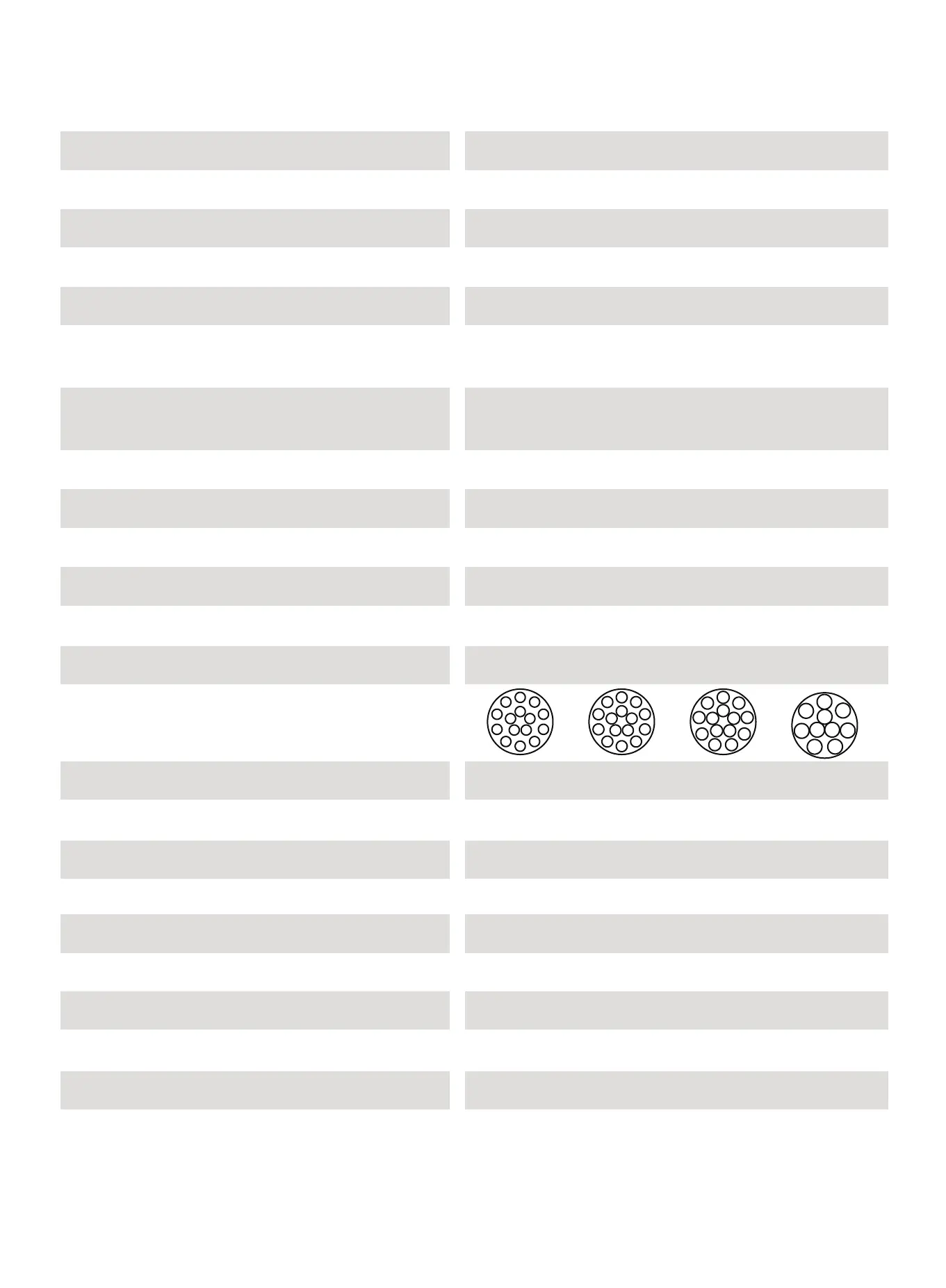

DC Cable Diameter Φ5.9mm Φ6.35mm Φ7mm Φ8.6mm
Number Of Strings Per Core
(without connector) ≤15 ≤15 ≤14 ≤10
Environmental
Max. Number Of Strings per core
Temperature -40°C～ +85°C
Structure Data
Dimensions (W x H x D) 90 mm x 35 mm x 40 mm
Enclosure Environmental Rating IP30
Features & Compliance
Safety Compliance NEC 2017 (690.12); UL1741; CSA C22.2 No. 330-17
EMC Compliance FCC Part15; ICES-003
