Aputure amaran 150c - Manual Control Modes

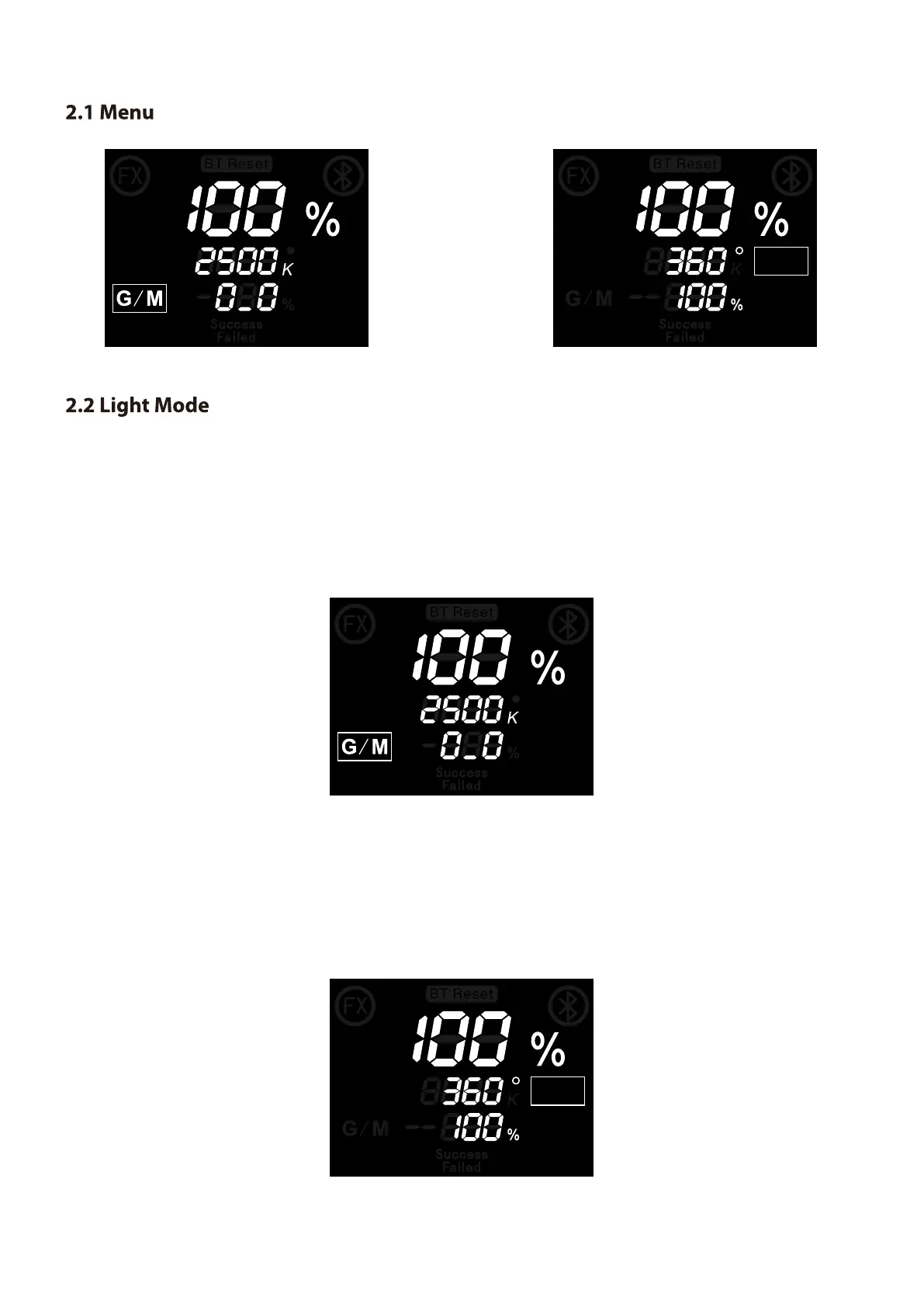

2.Manual Control
2.2.1 CCT
CCT Mode HSI Mode
Rotate the INT knob to adjust intensity level. Press the CTR knob to select CCT or G/M and rotate the
CTR knob to adjust the corresponding value.
INT (Intensity): 0.0 - 100.0 %
CCT (Correlated Color Temp.): 2500 K - 7500 K
G/M (Green / Magenta adjustment): -1.0 ~ +1.0
2.2.2 HSI
Press the INT knob to enter HSI mode. Then press the CTR knob to select HUE or SAT and rotate the
CTR knob to adjust the corresponding value.
INT (Intensity): 0.0 - 100.0 %
HUE (Hue): 1 - 360.0°
SAT (Saturation): 0.0 - 100.0 %
2.2.3 FX
INT
CCT
HUE
SAT
INT
CCT
HUE
SAT
INT
CCT
HUE
SAT
INT
CCT
HUE
SAT
07
