Aputure MC Pro - Wired DMX Connectivity; DMX Connection and Interface

- 13 -
4. Wired DMX Control
4.1 Connect a standard DMX controller
* USB-C to 5-Pin XLR In & Out adapter sold separately
4.2 DMX Interface Info
1
2
3
4
5
Data 2+（Optional Secondary Data Link)
Data 2-（Optional Secondary Data Link)
Data 1+（Primary Data Link)
Data 1-（Primary Data Link)
Signal Common

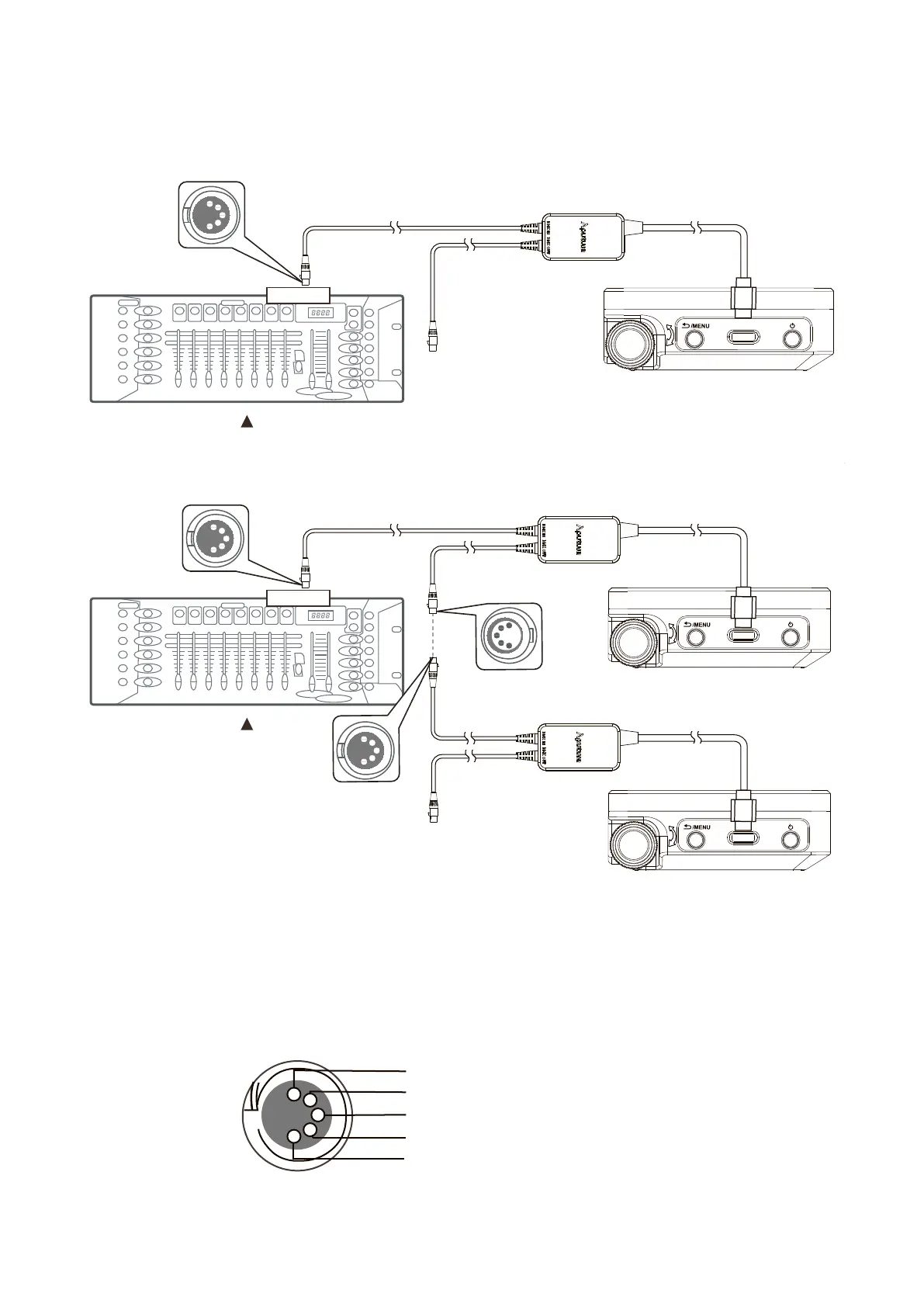

Connecting DMX to a MC Pro hardwired
DMX512
OUTPUT
DMX512
1
2
3
4
5
DMX512
OUTPUT
Daisy chaining multiple lights over DMX
DMX512
1
2
3
4
5
1
2
3
4
5
1
2
3
4
5
