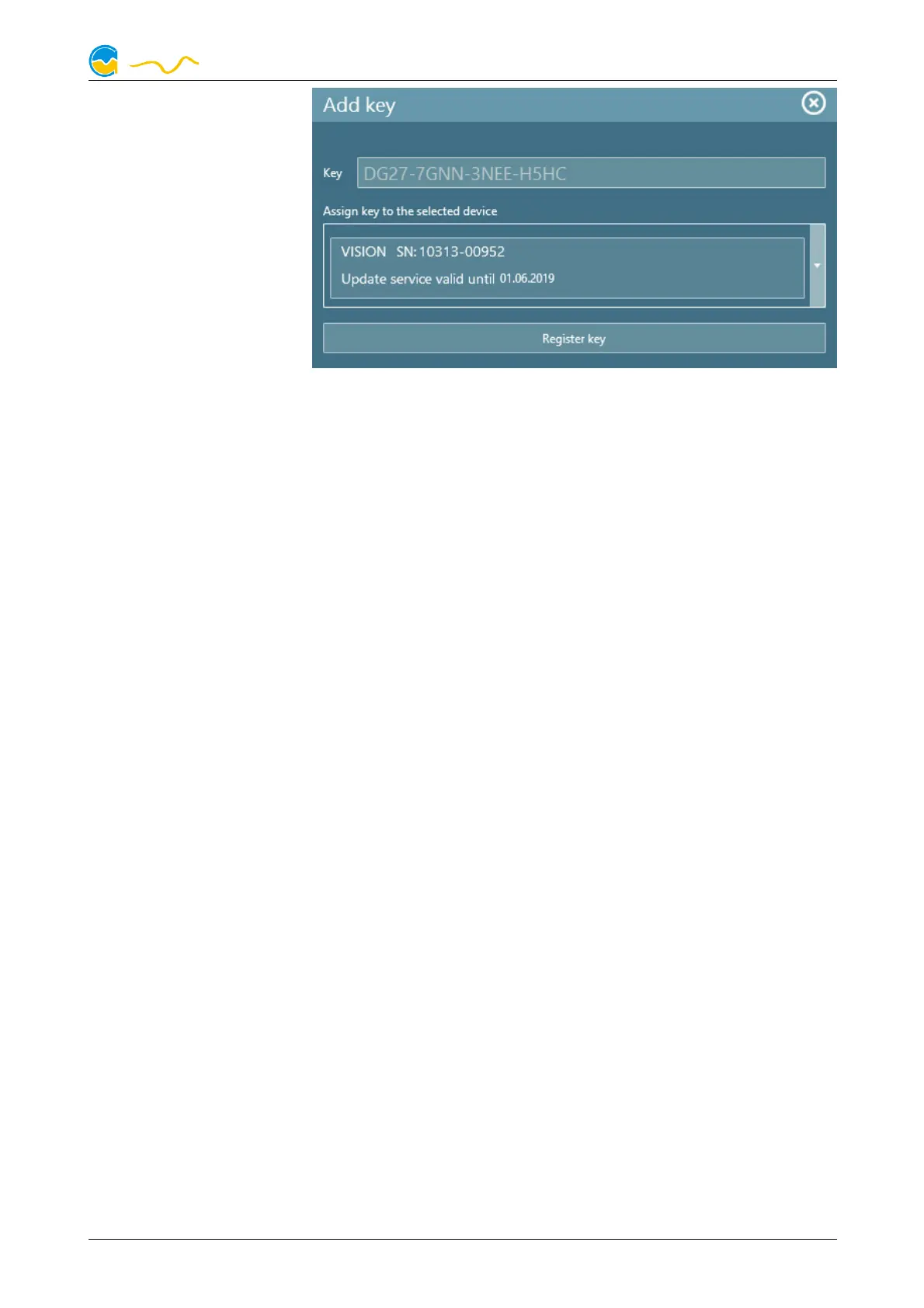

D5 NEXT
selected device and
stored on the Aqua
Computer update serv-
er. The key will not
have to be re-entered
after re-installation of
the software or transfer
of the device to anoth-
er computer, but trans-
ferring the update ser-
vice period to another
device is not possible.
During update service validation and software activation, device serial numbers
and a calculated computer ID are transmitted to and stored on the update server.
No further personal information such as IP addresses are stored.
21.
21.21.
21. Technical details and care instructions
Technical details and care instructionsTechnical details and care instructions
Technical details and care instructions
21.1.
21.1.21.1.
21.1. Technical details
Technical detailsTechnical details
Technical details
Power supply voltage (Vin): 5 V DC ±5 %, 12 V DC ±5 %
Maximum power consumption: 65 Watts (including fan and RGBpx)
Maximum pump pressure: 370 mbar (approx. 3.7 m water head)
Maximum fan output power: 25 Watts
Ambient temperature range: 10 to 40 °C (noncondensing)
Coolant temperature: 0 to 50 °C
Dimensions (L x W x H) ca. 66 x 65 x 78 mm (without attached cables)
21.2.
21.2.21.2.
21.2. Restore factory defaults
Restore factory defaultsRestore factory defaults
Restore factory defaults
There are two options to reset the pump controller to factory defaults. Restoring
factory defaults may be useful if the pump is not properly operating or if erroneous
settings have been saved into the pump.
1. aquasuite: Click the “Reset device to factory defaults” button on the “Sys-
tem” screen.
2. Device menu: Select “System”, then “Factory defaults” and confirm by press-
ing the middle key.
21.3.
21.3.21.3.
21.3. Care instructions
Care instructionsCare instructions
Care instructions
Use a dry and soft cloth for cleaning. All electronic components and headers must
not get in contact with coolant or water!
© 2019-2020 Aqua Computer GmbH & Co. KG - 29 -
Gelliehäuser Str. 1, 37130 Gleichen
