11 | INITIAL OPERATION - BASIC

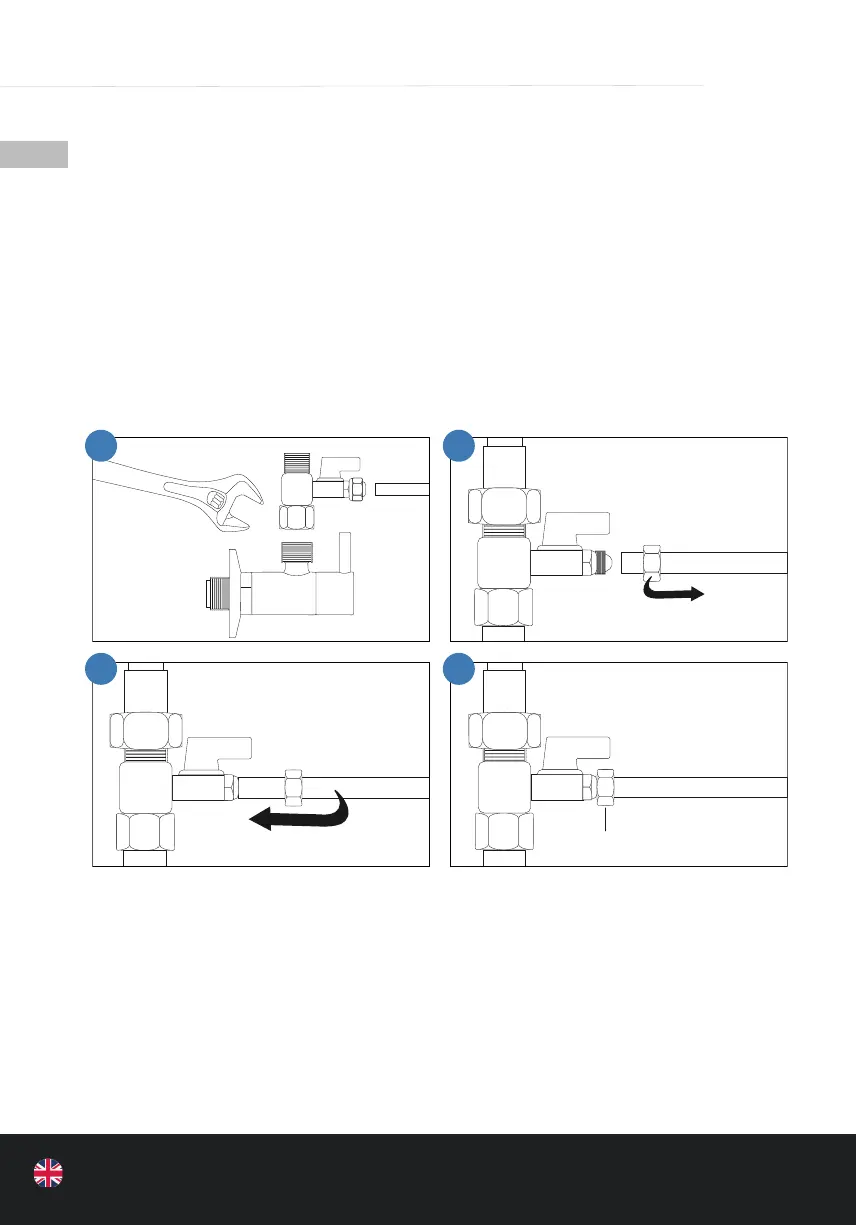

• STEP I - INSTALLATION OF THE ANGLE STOP VALVE
At  rst install the supplied angle stop valve between the cold water supply and the hose
leading to the sink tap.
1. Turn off the cold water supply under the sink beforehand.
2. Unscrew the hose leading to the sink tap. Insert the angle stop valve at this point and
tighten it.
3. Then slide on the supplied hose leading to the inlet of the water  lter labelled “INLET”.
4. Tighten the nut.
• STEP II - INSTALLATION OF THE WASTEWATER CLAM (See  gure on the next page)
The next step is to install the supplied wastewater clamp including the square black seal just
above the bend in the wastewater pipe.
5. Stick the supplied seal onto the wastewater pipe and drill a hole using a 6 mm drill bit.
6. Screw on the screw joint, place the drain clamp in the center above the drilled hole and
tighten.
7. Insert the supplied hose leading to the outlet of the water  lter labelled “DRAIN”, until it
clicks into place.
1 2
3 4
Shut-off valve
Cold water supply
Hose to appliance
inlet “IN
Screw tightly
