AIR TO WATER POOL HEAT PUMP VERTICLE PH SERIES
18/ 52 VERSION 19 , RELEASE 29th June 2020
18
/
52
For vertical models, remove the curve panel in the front side.

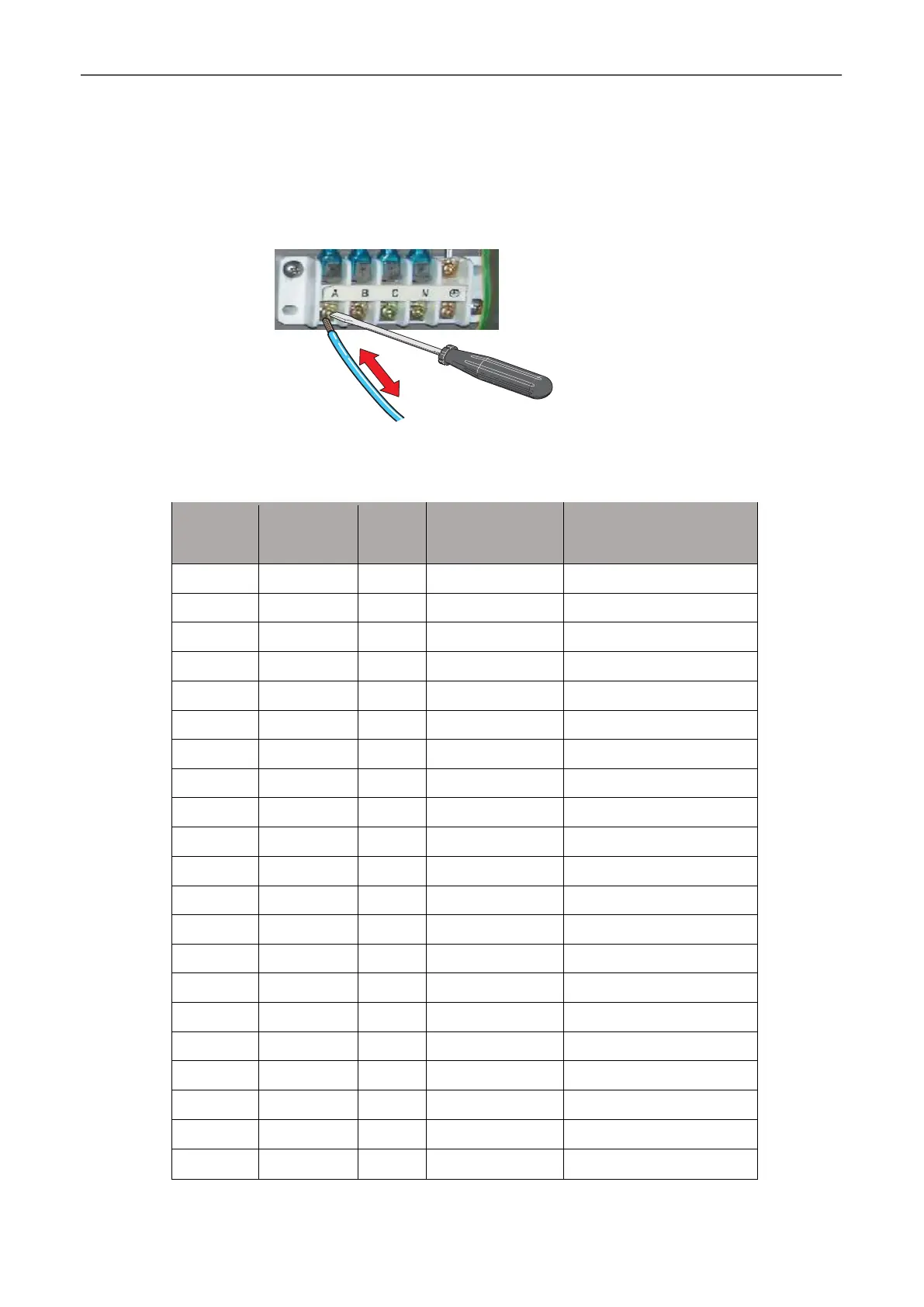

Connect the connection wire cable with the terminal block labeled “Power Supply”, there is a second
terminal block labeled “Water Pump”, to which the filter pump (max.5A/240V) can be connected. This
connection makes it possible to control the filter pump operation with the heat pump. For the mode of water
pump check parameters LA.
Remarks: For models with 3 phases, switching 2 phases may cause inversion in the rotational direction of
electrical motors, which could damage the unit. Therefore, a protection device has been built in,
which will interrupt the circuit if the connection has not been performed correctly.
Model
Voltage(volt)
Fuse(A)
Nominal current
(A)
Cable diameter(mm2)
(for max. length of 15
meters)
PH-02620
220-240
16
7.9
2*2.5+2.5
PH-02625
220-240
16
9.9
2*2.5+2.5
PH-02630
220-240
16
11.6
2*2.5+2.5
PH-02640
3x380
16
5.2
4*1.5+1.5
PH-02650
3x380
16
6.8
4*1.5+1.5
PH-02660
3*380
16
8.3
4*2.5+2.5
PH-02670
3*380
16
10.3
4*2.5+2.5
PH-02700
3*380
32
12
4*4+4
PH-02710
3*380
32
13
4*4+4
PH-02712
3*380
32
14.6
4*4+4
PH-02713
3*380
45
16.3
4*6+6
PH-02714
3*380
64
21.1
4*10+10
PH-02715
3*380
74
26
4*10+10
PH-02720
3*380
75
34.1
4*16+16
PH-02730
3*380
96
43.9
4*16+16
PH-02740
3*380
120
51.4
4*25+25
PH-02750
3*380
150
58.5
4*35+35
PH-02760
3*380
150
68.3
4*35+35
PH-02765
3*380
150
77
4*35+35
PH-02770
3*380
200
82
4*50+50
PH-02780
3*380
200
114
4*70+50
