DIRECTIONAL GUIDANCE
CABLE FLOAT
The Cable Float (Fig. 2) is a flotation device that enables your cleaner to turn on the floor where the majority of debris resides.
This offers faster, more efficient and complete coverage of virtually any pool configuration. Your cleaner will move down
the wall and about halfway across the pool floor and then reverse. When it reverses its internal Pump Motor will temporarily
turn off allowing the Cable Float to lift its side of the cleaner allowing only the opposing side to have traction. As the cleaner
reverses, the side with traction will cause your cleaner to turn in an arc-radius manner. The internal Pump will turn back on and
full traction will be regained, allowing the cleaner to continue in a straight line to the wall.

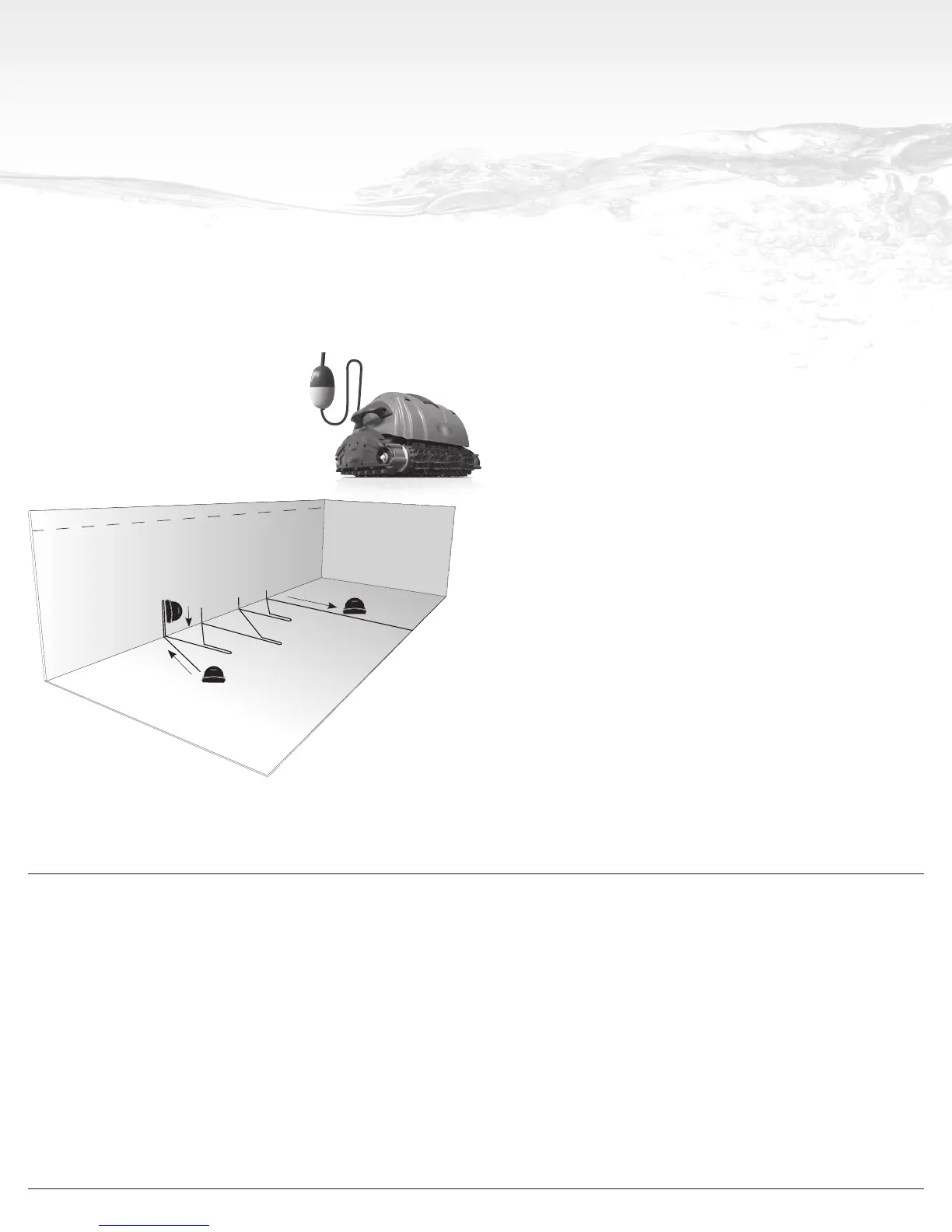

CLEANING PATTERN
Pattern Description:
A. Your cleaner searches for the wall and climbs it for a couple of
seconds reaching only about 1.5’ / .5m or so.
B. Your Cleaner moves across the floor to about half the width of the
pool and then reverses backwards for a few seconds. The cleaner
turns slightly and moves towards the wall again.
C. Your cleaner climbs the wall for a couple of seconds.
D. Your cleaner reverses to move back across the floor to about
half the width of the pool and then reverses backwards for a few
seconds. The cleaner turns slightly and moves towards the wall
again.
E. Your cleaner climbs the wall for a couple of seconds.
F. Your cleaner moves across the floor to about half the width of the
pool and then reverses backwards for a few seconds. The cleaner
turns slightly and moves towards the wall again.
G. Your cleaner climbs the wall for a couple of seconds.
H. Your cleaner moves to the opposite wall to restart the full pattern.
Cable Float
A
B
C
D
E
G
H
F
NOTE: Your robot is equipped with a safety feature that automatically reverses it after a number of minutes should it not locate a wall and
tilt to approximately 90º. This protects your cleaner should it encounter the underside of a ladder for example and be unable to climb.
