Aquabot XTREME - OPERATING FEATURES; FLOATING CABLE FEATURES

3

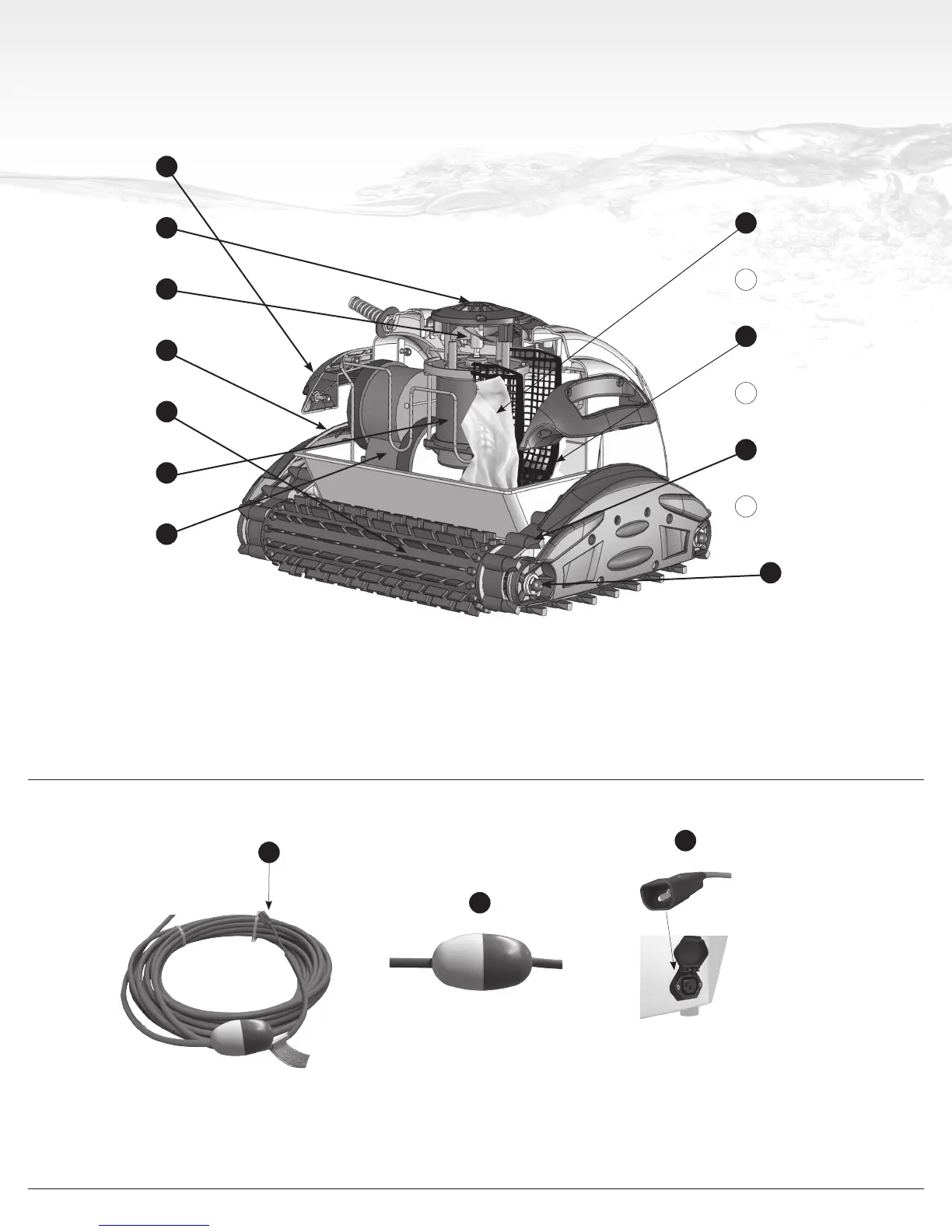

OPERATING FEATURES
Although the shape and color of cleaners and components featured herein may not be identical to those of your cleaner,
their operating and service procedures are. The reference numbers below are used throughout this manual.
1. Side Handle
2. Outlet Top
3. Propeller
4. Side Plate
5. Wheel Tube Retaining Ring
6. Brushes
7. Pump Motor
8. Drive Motor
9. Filter Bag
10. Bottom Lid Assembly
(see page 4)
11. Filter Screen
12. Floating Cable (see below)
13. G-Tooth™ Drive Track
14. Wheel Tube
FLOATING CABLE FEATURES
Figure 2
2 Prong
Male
Connection
14b
14a
14c
14a. Floating Cable
14b. Cable Float
14c. Cable Float (2 prong male connection)
Figure 1
12
14
10
1
2
3
4
6
8
7
5
9
11
13
