Quartz™ Bath Installation Guide 10
14

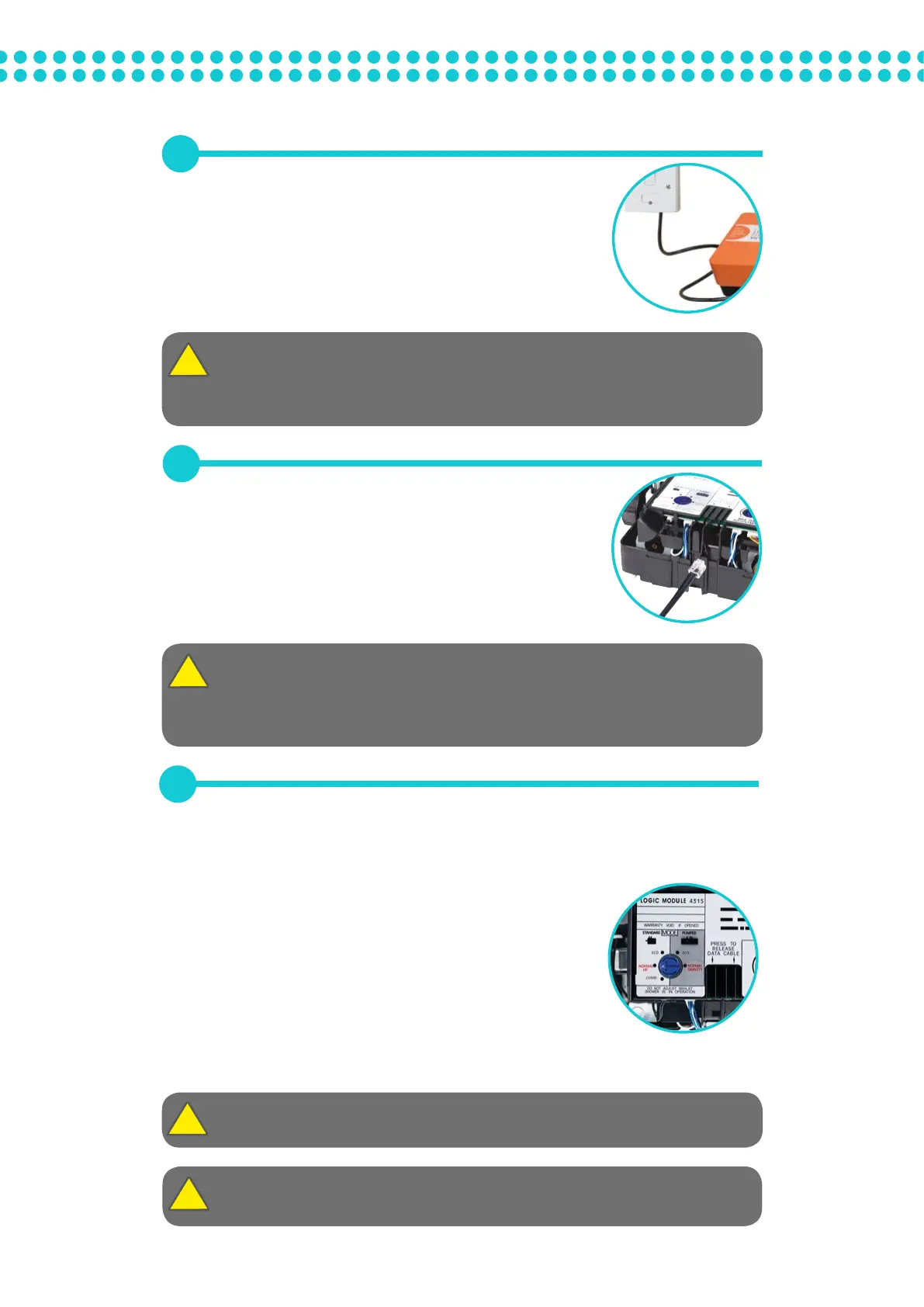

Connect the Quartz Smart Valve
™
power lead to a double pole 3
amp fuse switched spur incorporated in the fixed wiring circuit, in
accordance with current wiring rules (refer to safety information
section). Ensure that this is located in an accessible, dry location
and not in the bathroom.
THIS APPLIANCE MUST BE EARTHED
We recommend protecting surface mounted cables in suitable approved conduit to avoid
the risk of damage from vermin.
The power lead should also be clipped in place with ‘P’ clips or similar to avoid accidents.
•
!
15
Loosen the single fixing screw on the top of the Quartz Smart
Valve
™
and then carefully tilt the lid up and o the location lugs,
and set the lid aside.
Connect the low voltage, 10m data cable into the socket adjacent
to the temperature adjuster as indicated on the label. Feed the
cable out of the Quartz Smart Valve
™
ensuring it is correctly
routed within the data cable channel.
A further data cable socket has been provided for use with a wired remote or
diverter. This can be accessed by carefully snapping and removing the entry pillar and
connecting the cable as described above. Please refer to the Wired Remote Installation
Guide or Diverter Installation Guide for the relevant wiring diagrams.
•
!
16
The Quartz Smart Valve
™
is supplied factory set to either ‘NORMAL HP’ mode or ‘NORMAL
GRAVITY’ mode depending on which product has been ordered.
BALANCED HP SYSTEMS AND SEPARATELY PUMPED GRAVITY SYSTEMS:
The standard Quartz
Smart Valve
™
fits to balanced high pressure
systems or separately pumped gravity systems. It may be set to
‘NORMAL HP’
, or for water economy, ‘ECO HP’ mode.
STANDARD COMBINATION BOILER SYSTEMS:
When installed on combi boiler systems, the standard Quartz
Smart
Valve
™
should be set to ‘COMBI’ mode for optimum performance.
GRAVITY PUMPED QUARTZ SMART VALVE
™
:
The gravity pumped Quartz Smart Valve
™
installed on gravity systems
ONLY may be set to ‘NORMAL GRAVITY’, or for water economy, ‘ECO GRAVITY’ mode.
In order to fill your bath as quickly and eciently as possible, we recommend the ‘ECO’
settings are not used.
•
!
When making any adjustment to the Quartz Smart Valve™ settings the power MUST
be isolated.
•
!
