7

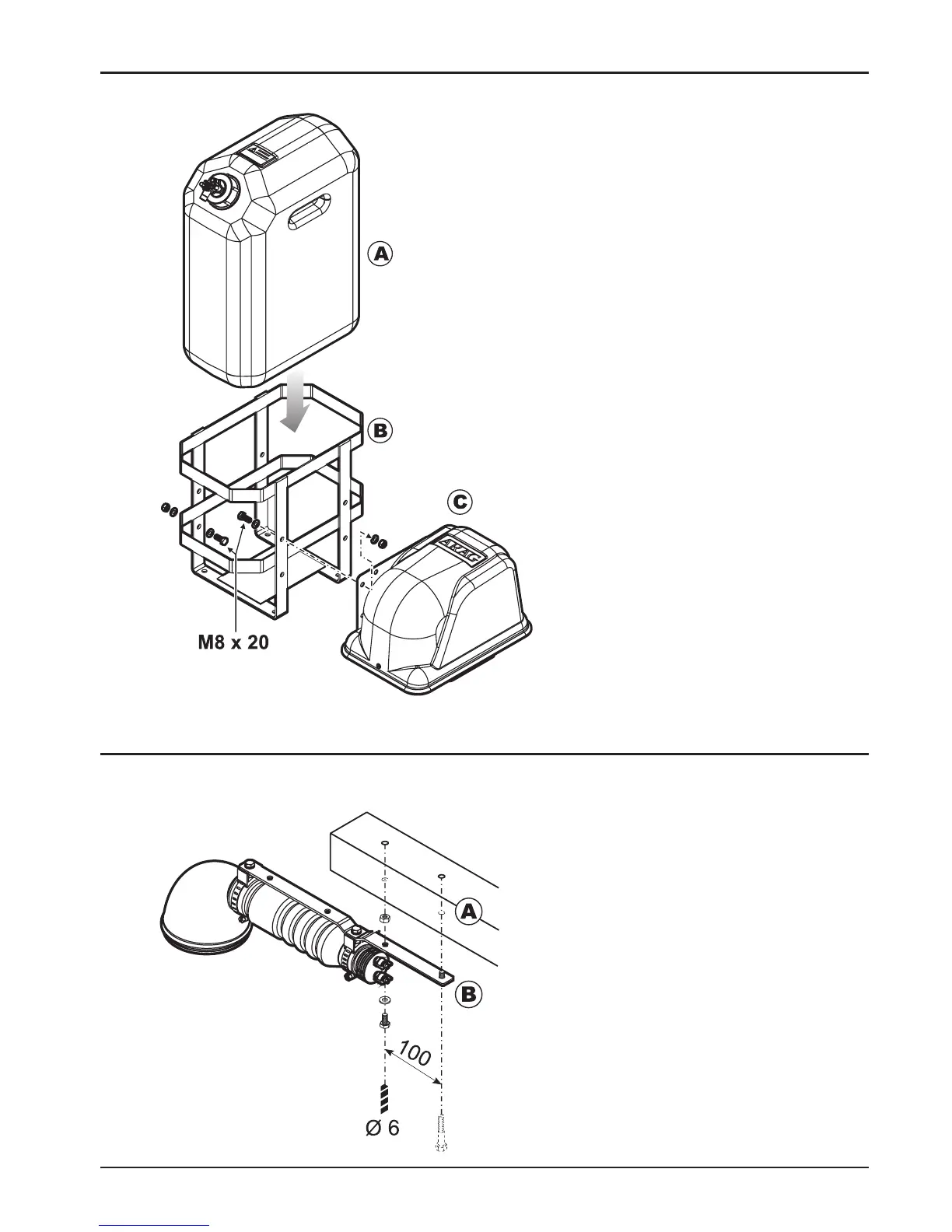

5.4 Installing tank and compressor unit
Tank and compressor unit can be installed onto the machine in two different ways:
5.5 Installing the foam markers
Install the foam markers at bar ends as specied below:
Horizontal foam markers
Fi g. 6
Fig. 7a
1 Fix the compressor unit (C) to the tank
holder basket (B) and then install the
assembly onto the machine.
2 Install compressor unit (C) and tank
holder basket (B) separately.
Should this be the case, the compressor
and the basket can be directly installed
on the machine.
Always use the supplied screws.
• Drill two Ø 6 mm holes at a distance of 100
mm on bar (A).
•Fix the bracket (B) to the bar with the sup-
plied M6 screws.
•Repeat the operation with the other boom.
