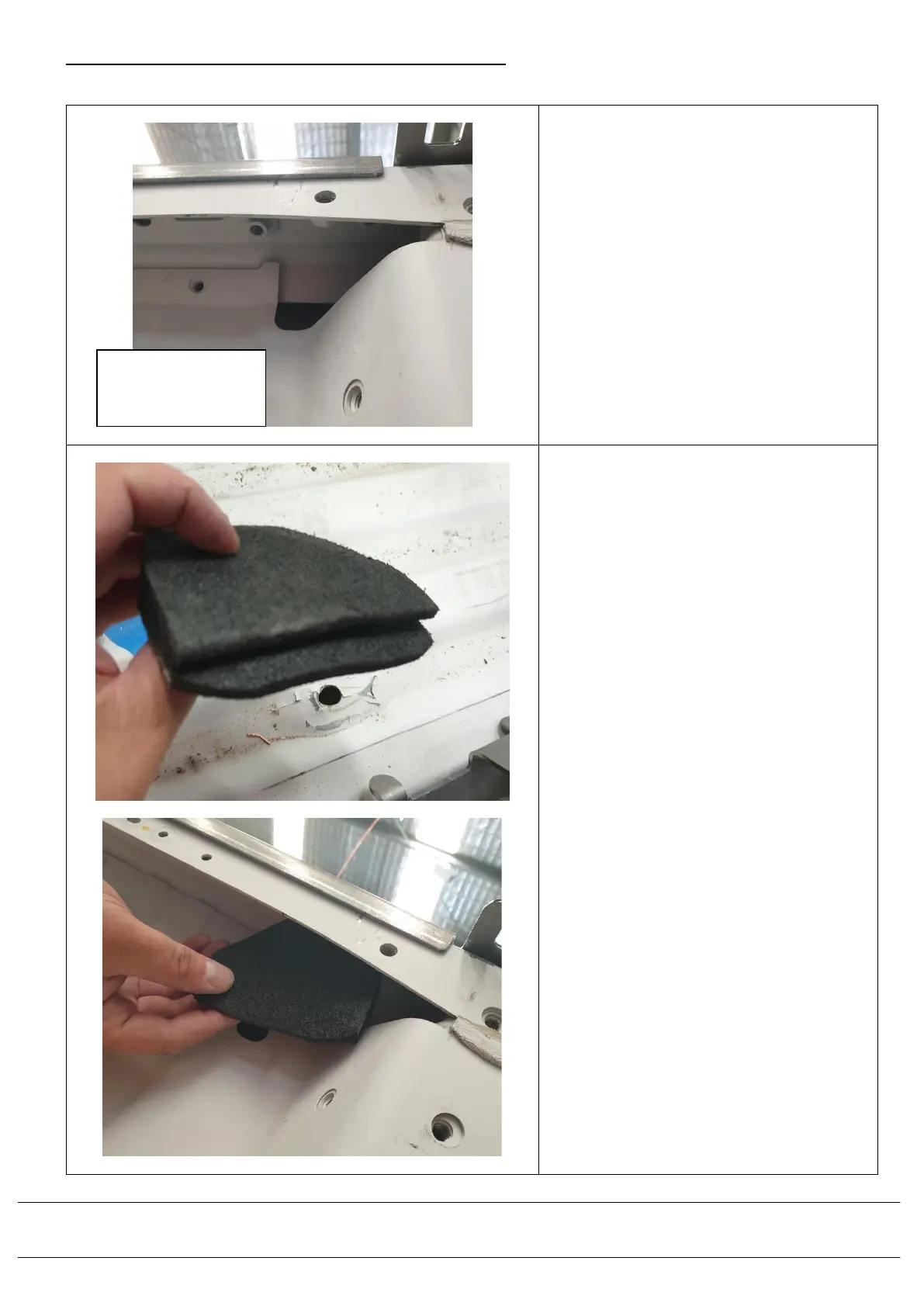

SECTION 3: FITTING THE TUB SEALING BLOCKS
Note: For clarity, the CMS side track rails has been removed from the tub.
3.1) Locate the open cavity under
the upper front left-hand corner
of the tub and clean with an
alcohol wipe (6602018).
3.2) Take the left-hand foam block
as per opposite from the pair of
668PB033.
3.3) With the grooved recess edge
facing down, push the foam
block up into cavity opening
with recessed edge, with its
short leg side to clip over the
tub sheet metal edge on the
front pillar cavity of the tub.
CLEAN ALL
AROUND THE
OPEN CAVITY
To Next Page
