SECTION 4: FITTING THE CANOPY’S TUB MOUNTING BRACKET SYSTEM

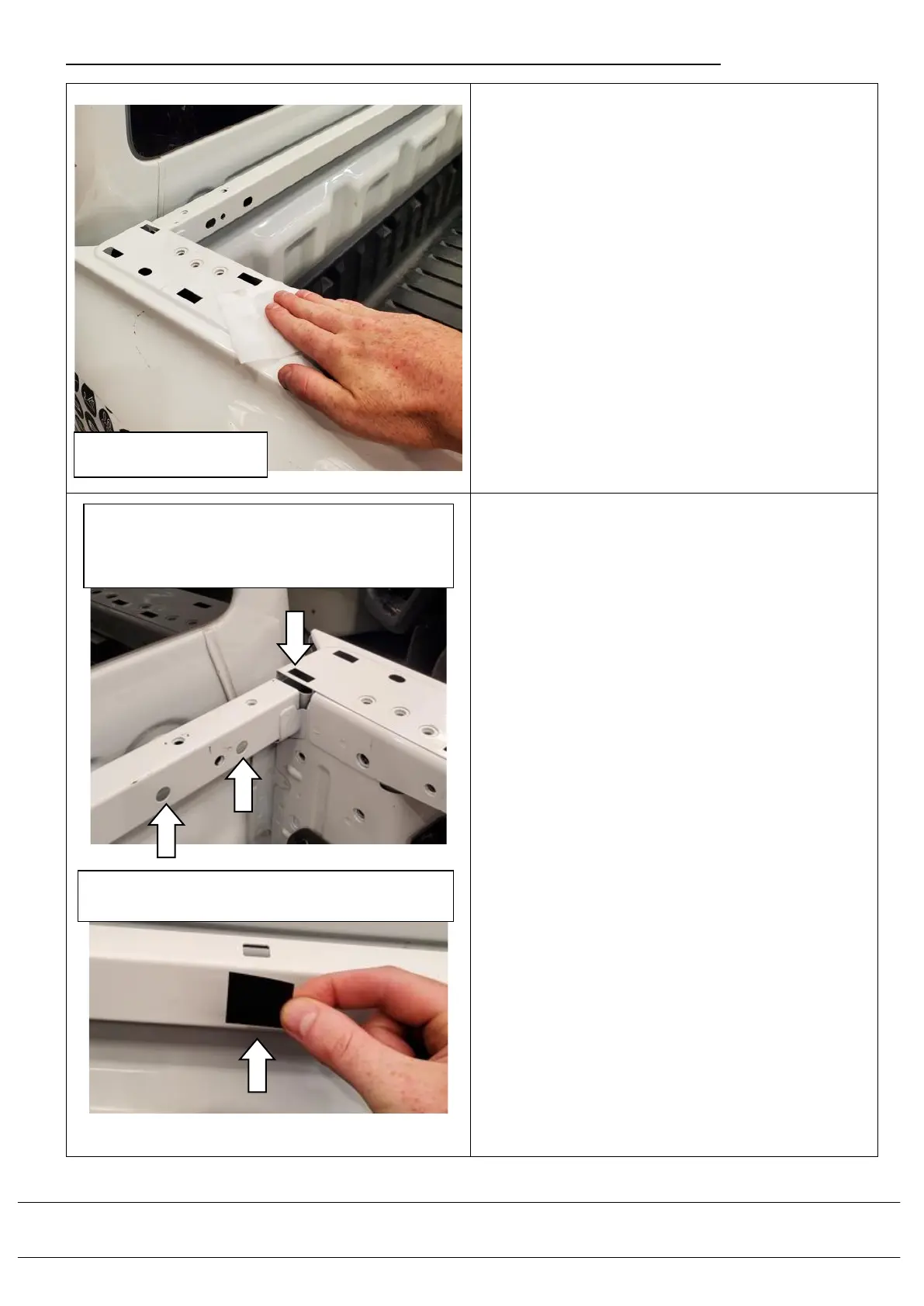

4.0) Use alcohol wipes (6602018) to clean
the side top rails of the tub and front tub
rail.
4.1) Ensure the sheet metal work in the front
corners of the tub and along the 6 holes
on the outer edges of the tub are not
distorted by previously removing side
bed rail cap covers. Straighten this if
required to get a flat level surface.
Place 7 black sticker squares in total
(668PB006) (which come as a pair of
squares per backing sheet), over the
holes in the front of the tub as shown.
CLEAN ALL AROUND
TOP OF TUB
PLACE BLACK STICKERS OVER
RECTANGULAR FRONT SIDE RAIL CORNER
INNER HOLE AND TWO HOLES ON THE
FRONT VERTICAL FACE OF TUB PER SIDE
ONE STICKER OVER CENTRE HOLE IN
VERTCIAL FACE OF FRONT TUB RAIL
