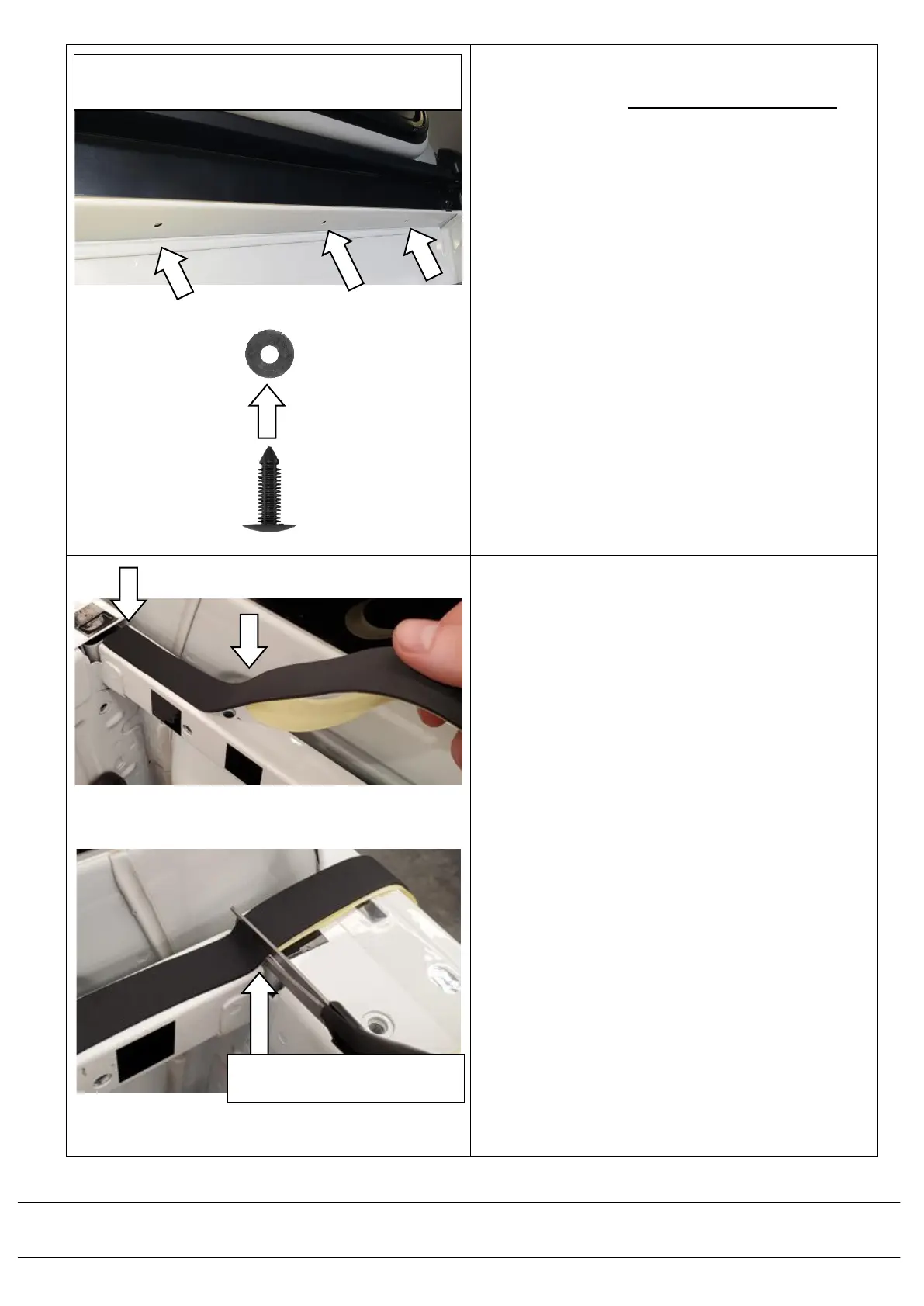

4.5) Under the front tub rail, the angled face
has 6 holes if a bedliner is removed.
The 6 holes in the tub need to be sealed.
Over 6 fir tree clips (6152128) assemble
rubber washers (4584435) under the
head of the fir tree clips. Then install
them into the vehicle’s front tub rail.
4.6) Assemble adhesive foam tape
(668PB018) and mate the starting edge
tightly against the side tub rail and run it
along top face of the tub front rail,
centrally. Ensure the holes in the upper
surface of the front tub rail are covered
and well-sealed by the foam tape. Cut
the tape to length and mate the end up
firmly to the side tub rail on the opposite
side.
CUT ONE END TO LENGTH
TO BUTT UP TO SIDE TUB
RAIL
6 HOLES UNDER THE FRONT TUB RAIL TO BE
SEALED IF BEDLINER IS REMOVED
