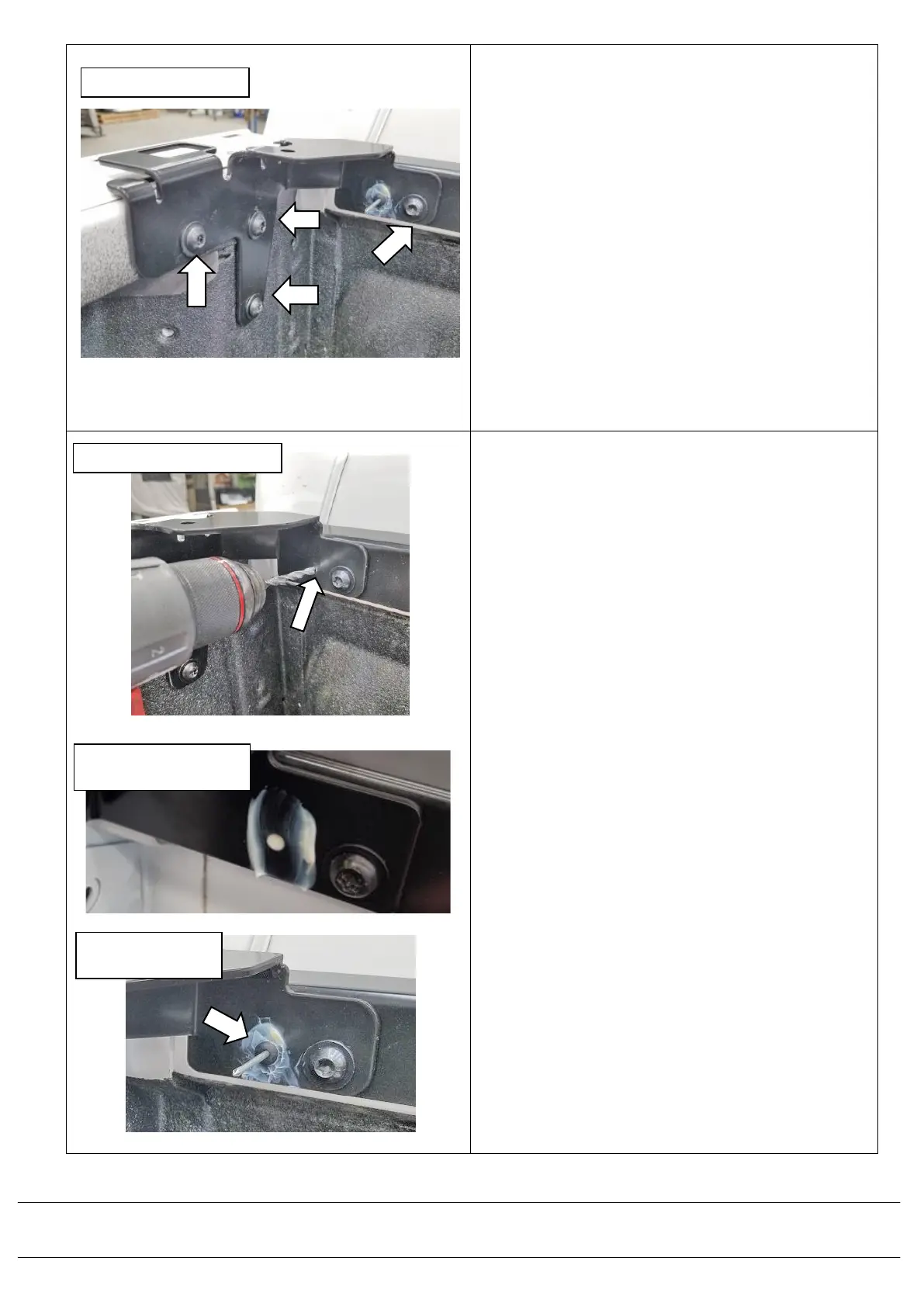

4.13) Locate the front corner mounting
brackets (668PD167R/L) to the front
corners of tub.
Per bracket, take four M8x25mm Torx
screws (6151625), with M8x19x1.2
washer (4581085) and finger tighten
these through the bracket to the tub first.
Press down on the front corner
bracket to ensure the tags (with the
bumpons fitted), engage the top faces
of the side rails of the tub. Ensure the
668PD156 front mount rail is level to
the top of the side tub rails. Once in
place tighten all screws to 20Nm.
4.14) Drill a 5.2mm hole through the existing
hole in front corner mounting bracket
where it meets the front tub rail and dill
through the front tub rail.
4.15) Apply rust inhibitor 665505 to drilled
hole.
4.16) Install rivet (6609087) to the drilled hole.
Do this on both sides of the tub.
APPLY RUST
INHIBITOR TO HOLE
