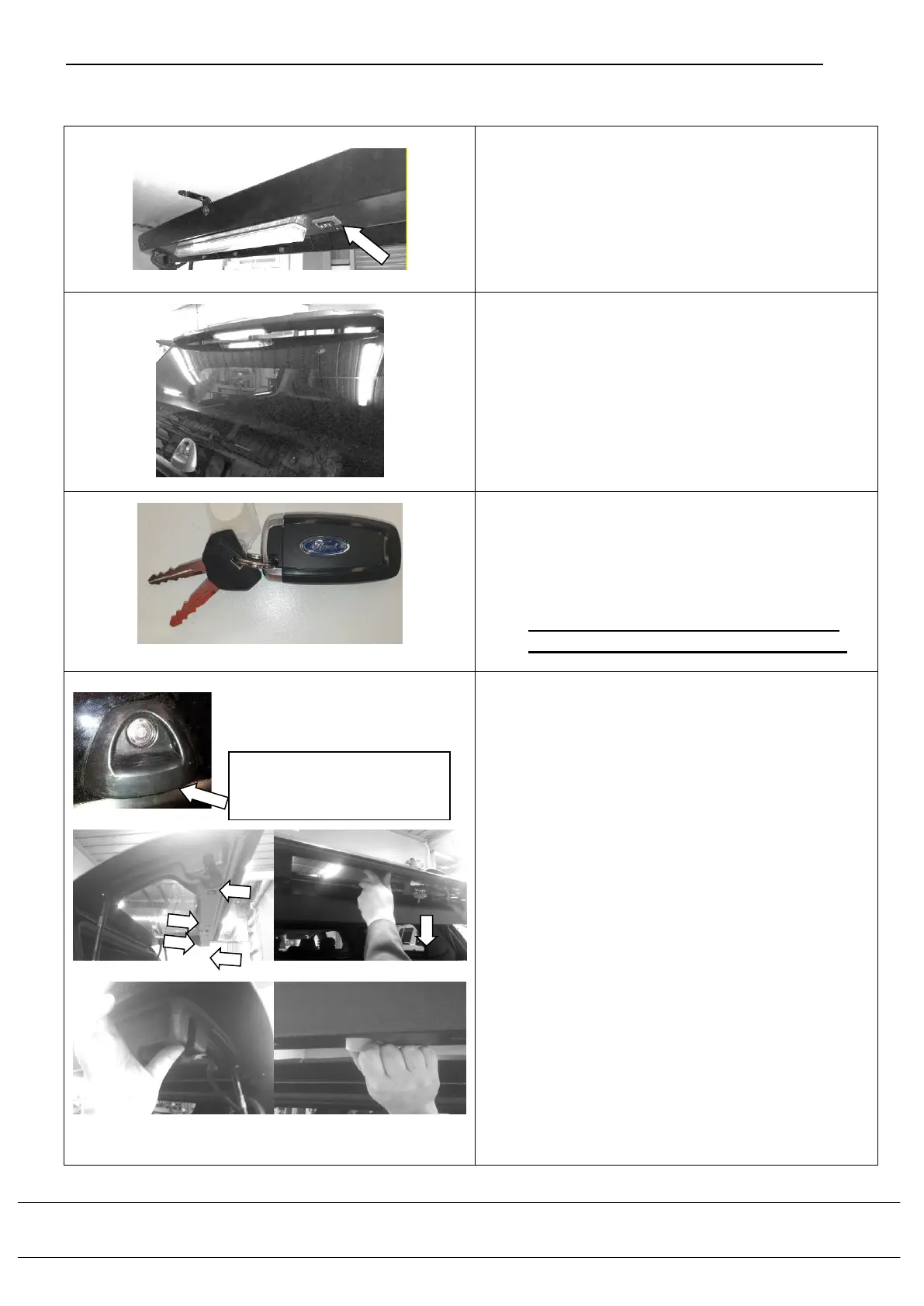

SECTION 7: OPERATIONAL CHECKS AND ADJUSTMENT OF DOORS AND WINDOWS
Operational checks need to be undertaken as follows.
7.1) Move the interior light switch to the
position II where it will turn off when the
door is closed and turn on when the door
is opened.
7.2) Depress the vehicle’s brake pedal and
have a second person check that the
brake light in the spoiler works.
7.3) Remove the key from the rear door
handle and combine this with the key
taped inside the canopy. The 2 keys
should then be added to the customer’s
key ring.
!! IMPORTANT !! Check BOTH keys
work manually in the rear door lock.
7.4) Operate the door push button switch to
open and close the door. If one side
opens before the other, the lock
mechanism can be adjusted so that
both sides of the door open
simultaneously if the following is
done:
• Open the door. Remove the 4 scrivets
retaining the lower section of the door
interior cover using a flat blade screw
driver under the head. Slightly pry the
door cover down away from the glass.
• Close both of the latch pawls on the
sides of the door glass with your fingers.
Slowly turn the interior door release
handle and listen to hear if both latches
click open at the same time with the door
cover pushed back up to the glass whilst
ensuring the latch rods are located into
the foam blocks on the door cover.
Press the button underneath
to operate electric door
actuator mechanism.
